50:50 488nm 1x2 Polarization-Maintaining Fiber Coupler

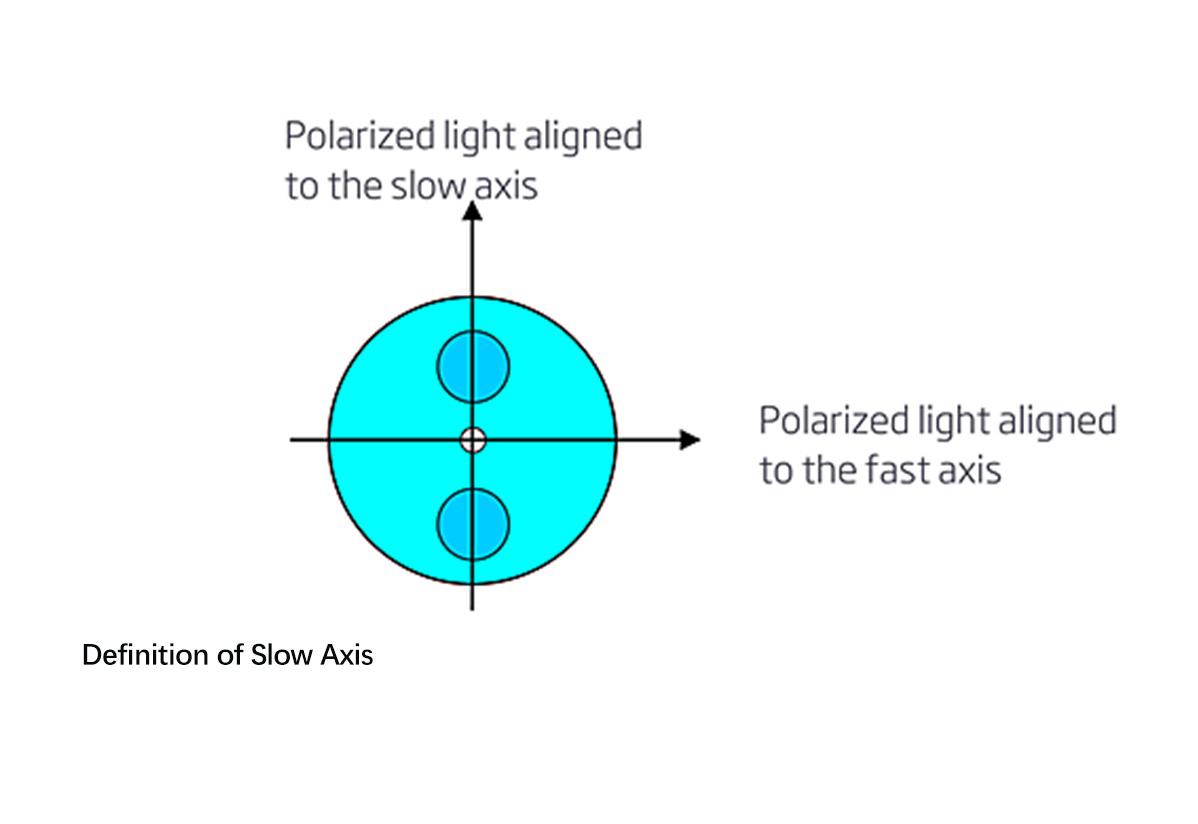

IThe RGB-PMFBC-W0488 RGB series polarization-maintaining fiber coupler is a high-performance coupler designed for visible light wavelength splitting, manufactured using our IPCS-5000-P polarization-maintaining fiber fusion tapering machine. It offers excellent performance and can cover the entire wavelength range (460-2200nm). The polarization-maintaining coupler is made with panda-type Fujikura polarization-maintaining fiber, enabling it to maintain a high polarization extinction ratio (PER) when light is emitted along the slow axis of the fiber. Xiaoxiao Photonics' optical polarization-maintaining components are aligned to the slow axis by default, and our polarization-maintaining couplers feature a high extinction ratio and can operate over a wide temperature range from -40°C to 85°

产品特点Fused fiber coupler for 460-2200nm、 Coupling ratios of 50:50, 75:25, 90:10, or 99:1、 Bidirectional coupling (any end can be used as input)、 2.0 mm narrow key FC/PC or FC/APC connectors、 Each broadband coupler comes with its own test report

产品货号A80150572

应用领域Polarization-maintaining fiber amplifiers、 Fiber optic gyroscopes、 Optical sensors
