    • 850nm high power polarization-mode fiber isolator

    850nm high power polarization-mode fiber isolator has the characteristics of low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. It is an ideal choice for fiber lasers and instrument applications.

    产品特点Low insertion loss、 High isolation、 High operating power、 High return loss

    产品货号A80152129

    应用领域Fiber laser、 Fiber amplifier、 Laboratory research

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Parameter

    Unit

    Indication

    Central wavelength(λc)

    nm

    850

    Operating wavelength range

    nm

    ±10

    Min. extinction ratio (only for B type)

    dB

    20

    Min. extinction ratio (only for F type)

    dB

    22

    Typical peak isolation

    dB

    32-40

    Min. Isolation at 23℃

    dB

    25

    Typical insertion loss at 23℃

    dB

    0.6

    Maximum insertion loss at 23℃

    dB

    1.0

    Minimum return loss (input/output)

    dB

    50/50

    Maximum optical power

    mW

    300 or specify

    Maximum tensile load

    N

    5

    Fiber type


    PM Panda fiber

    Operating temperature

    ℃

    -5 to +50

    Storage temperature

    ℃

    -20 to+75

    Note:

    The above specifications apply to devices without connectors;

    For devices with connectors, IL will be 0.3 dB higher and RL will be 5 dB lower;

    The actual package size may be slightly different from that shown in the figure below. Please contact the company's customer service for the exact size.

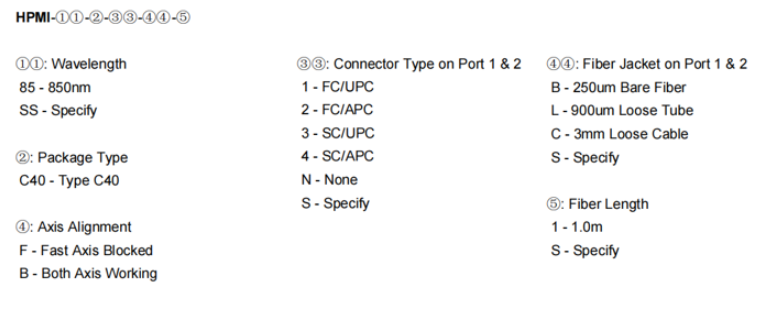

    Model examples
