首页 Optical Accessories Active devices AOM 780nm polarization maintaining single-mode acousto-optic modulator (operating frequency: 80/100/200MHz optional) 780nm SM acousto-optic modulator (operating frequency 200MHz, FC/APC)

    • 780nm SM acousto-optic modulator (operating frequency 200MHz, FC/APC)

    Idealphotonics' acousto-optic modulators are widely used in optical fiber sensing applications due to their high modulation extinction ratio, high power tolerance, and other advantages. This product is specifically designed to meet the application needs of optical fiber sensing, featuring small size, low power consumption (less than 1W), fast rise time (12ns), good modulation pulse shape (low overshoot), and excellent pulse repeatability (small jitter in repetition period). Additionally, it can integrate the modulator and driver into a single package, making it convenient for system integration. It is widely applicable in various optical fiber sensing systems that require pulse modulation, such as φ-OTDR, BOTDR, and OFDR.

    产品特点Small size、 Low power consumption（＜500mW） 、 Fast rise time（12ns）、 Good modulation pulse shape (low overshoot)

    产品货号A80171058

    应用领域Fiber optic sensing、 LiDAR、 BOTDA

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Moli

    电话：13061644116

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Parameter

    Unit

    PN#

    AOM80-780-1(X)

    AOM100-780-1(X)

    AOM200-780-1(X)

    Material

    -

    Bismuth Telluride

    Wavelength

    nm

    780

    Max Laser Power

    W

    0.5

    Max Pulse Laser Peak Power

    KW

    ≤1（5KW custom）

    Insertion Loss

    dB

    ≤3

    ≤4

    ≤5

    Extinction Ratio

    dB

    ≥50

    Polarization Extinction Ratio

    dB

    ≥18

    Voltage Standing Wave Ratio

    1

    ≤1.2:1

    Optical Pulse Rise Time

    ns

    60

    60

    10

    Operating Frequency

    MHz

    80

    100

    200

    Frequency Shift (Default +)

    MHz

    80

    100

    200

    Fiber Type

    -

    SM (HI780) or PM (PM780)

    Fiber Connector

    -

    FC/APC

    Structure

    -

    Figure A

    Driver


    D800-02-M-1D

    D100-02-M-1D

    D200-02-M-1D





    Driver

    Parameter

    Unit

    PN#

    D80-02-M-1D

    D100-02-M-1D

    D200-02-M-1D

    Operating Frequency

    MHz

    80

    100

    200

    Driver Power

    W

    ≤2.5

    ≤3

    ≤3

    Electrical Pulse Rise Time

    ns

    ≤20

    ≤15

    ≤7.5

    Power Switch Ratio

    dB

    ≥55

    Power Supply Voltage (DC)

    V

    24

    Harmonic Suppression

    dBc

    ≥25

    Modulation Type

    -

    TTL

    Output Impedance

    Ω

    50

    Structure

    -

    Figure B





    Test Diagram

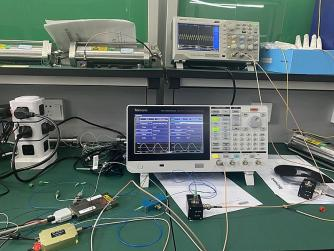

    780nm narrow linewidth laser, 780nm PM acousto-optic modulator, EOT 2.5G photodetector.




    Modulation Curve

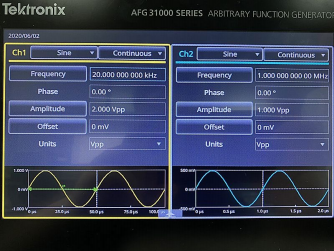

    1. The modulation signal applied to the AOM by the signal generator:

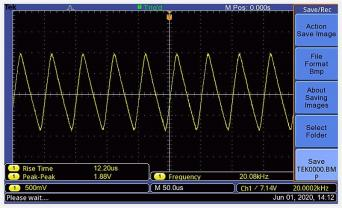

     2. The oscilloscope displays the voltage signal output from the detector:
