780nm PM acousto-optic modulator (operating frequency 200MHz, FC/APC)

780nm PM acousto-optic modulator (operating frequency 200MHz, FC/APC)

Idealphotonics' acousto-optic modulators are widely used in optical fiber sensing applications due to their high modulation extinction ratio, high power tolerance, and other advantages. This product is specifically designed to meet the application needs of optical fiber sensing, featuring small size, low power consumption (less than 1W), fast rise time (12ns), good modulation pulse shape (low overshoot), and excellent pulse repeatability (small jitter in repetition period). Additionally, it can integrate the modulator and driver into a single package, making it convenient for system integration. It is widely applicable in various optical fiber sensing systems that require pulse modulation, such as φ-OTDR, BOTDR, and OFDR.

Product features：Small size、 Low power consumption（＜500mW）、 Fast rise time（12ns）、 Good modulation pulse shape (low overshoot)

Part Number：--

Application area：Fiber optic sensing、 LiDAR、 BOTDA

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Parameters

Parameter	Unit	PN#
Parameter	Unit	AOM80-780-1(X)	AOM100-780-1(X)	AOM200-780-1(X)
Material	-	Bismuth Telluride
Wavelength	nm	780
Max Laser Power	W	0.5
Max Pulse Laser Peak Power	KW	≤1（5KW custom）
Insertion Loss	dB	≤3	≤4	≤5
Extinction Ratio	dB	≥50
Polarization Extinction Ratio	dB	≥18
Voltage Standing Wave Ratio	1	≤1.2:1
Optical Pulse Rise Time	ns	60	60	10
Operating Frequency	MHz	80	100	200
Frequency Shift (Default +)	MHz	80	100	200
Fiber Type	-	SM (HI780) or PM (PM780)
Fiber Connector	-	FC/APC
Structure	-	Figure A
Driver		D800-02-M-1D	D100-02-M-1D	D200-02-M-1D

Driver

Parameter	Unit	PN#
Parameter	Unit	D80-02-M-1D	D100-02-M-1D	D200-02-M-1D
Operating Frequency	MHz	80	100	200
Driver Power	W	≤2.5	≤3	≤3
Electrical Pulse Rise Time	ns	≤20	≤15	≤7.5
Power Switch Ratio	dB	≥55
Power Supply Voltage (DC)	V	24
Harmonic Suppression	dBc	≥25
Modulation Type	-	TTL
Output Impedance	Ω	50
Structure	-	Figure B

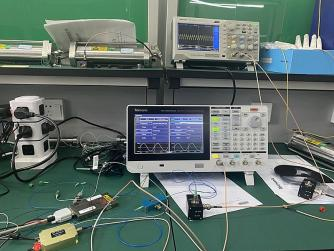

Test Diagram

780nm narrow linewidth laser, 780nm PM acousto-optic modulator, EOT 2.5G photodetector.

Modulation Curve

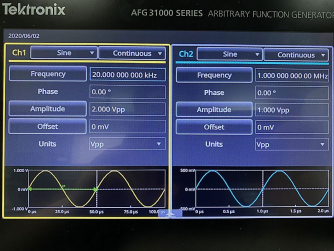

1. The modulation signal applied to the AOM by the signal generator:

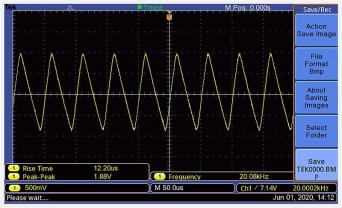

2. The oscilloscope displays the voltage signal output from the detector:


Optional Configurations

Downloads

780nm PM acousto-optic modulator (operating frequency 200MHz, FC/APC).pdf
