首页 Fiber Accessories Fiber & patch cords PM single-mode fiber patch cord Full wavelength 300-2300nm polarization maintaining fiber connector (jumper) 2000nm Polarization Maintaining Fiber Connector/Patch Cable

    • 2000nm Polarization Maintaining Fiber Connector/Patch Cable

    These polarization-maintaining fiber patch cords offered by Idealphotonics feature high-quality, narrow-pin ceramic FC/AFC connectors on both ends. Produced in our facilities, each patch cord is individually tested at the test wavelengths listed on the Specs tab to ensure extinction ratio and low back reflection (return loss) when connecting fiber to fiber. These patch cords are available in stock with a high-quality polish that guarantees a typical return loss of over 60 dB. The test data table provides extinction ratio and insertion loss tests for each patch cord. Each patch cord comes with two protective caps covering the ends to prevent dust or other contaminants from falling into the ferrule end face. We also sell CAPF plastic fiber caps and CAPFM metal threaded fiber caps to protect FC/PC terminations separately. If you don't find the product you need in our stock patch cords, We also offers custom patch cords that can be shipped the same day.

    产品特点Slow axis aligned、 Polarization-maintaining fiber with a pair of FC/APC connectors、 Wavelength range 400-2200nm、 Narrow plug (2mm) and slow axis aligned、 Typical 60 dB return loss、 Ceramic ferrule, angled 8° (APC)、 Ø3mm external protective layer、 Customized jumpers available

    产品货号A80152091

    应用领域Fiber optic communication system、 Fiber optic access network、 Fiber optic data transmission、 Fiber optic CATV、 Local area network (LAN)、 Test equipment、 Fiber optic sensor

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • 2.1.png



    Parameter

    PN#

    PM-405BPM-FC

    PM-488PM-FC

    PM-630PM-FC

    PM-780PM-FC

    PM-980PM-FC

    Test wavelength

    405 nm

    488 nm

    630 nm

    780 nm

    980 nm

    Operating wavelength

    400 - 680 nm

    460 - 700 nm

    620 - 850 nm

    770 - 1100 nm

    970 - 1550 nm

    Cut-off wavelength

    380 ± 20 nm

    420 ± 30 nm

    570 ± 50 nm

    710 ± 60 nm

    920 ± 50 nm

    Fiber type

    PM-S405-XP (Panda)

    PM460-HP (Panda)

    PM630-HP (Panda)

    PM780-HP (Panda)

    PM980-XP (Panda)

    Maximum insertion loss a

    1.5 dB

    1.5 dB

    1.2 dB

    1.0 dB

    0.7 dB

    Minimum extinction ratio a

    15 dB

    18 dB

    20 dB

    20 dB

    22 dB

    Mode field diameter b

    3.6 ± 0.5 um @ 405nm

    3.4 um    @ 488nm

    4.2 um    @ 630nm

    4.9 um    @ 780nm

    6.6 ± 0.7 um @ 980nm

    Numerical aperture c

    0.12

    0.12

    0.12

    0.12

    0.12

    Return loss a

    60 dB Typical

    Fiber connector

    FC/APC

    Connector groove width

    2.00 ± 0.02 mm

    Alignment method

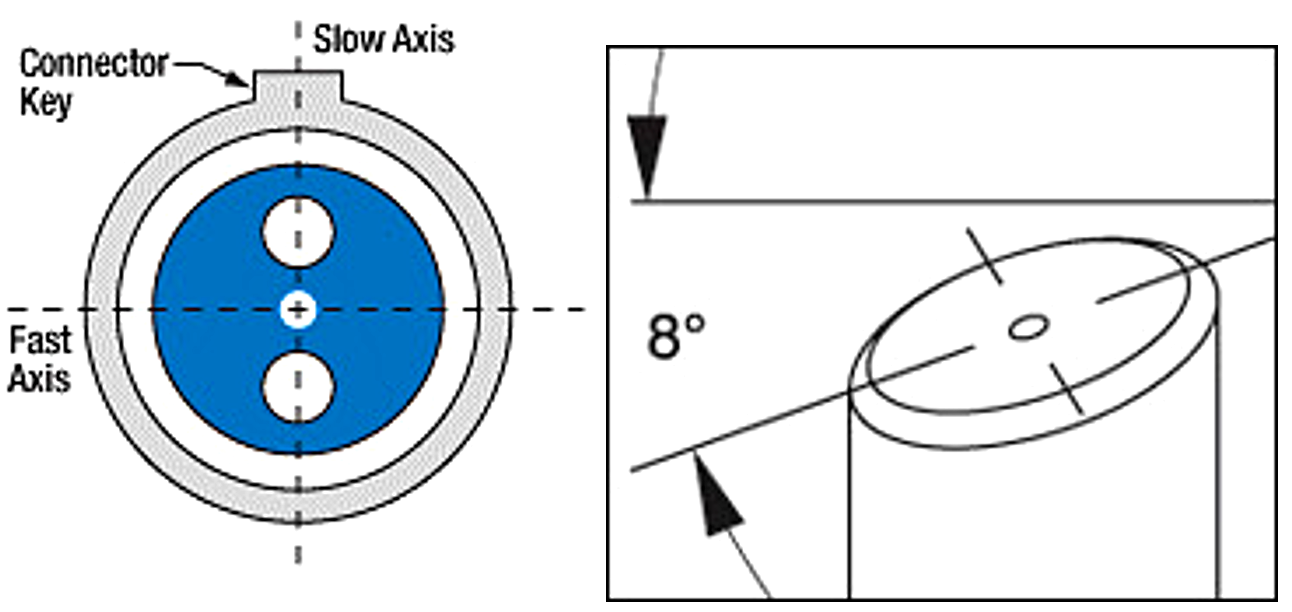

    Narrow Key Aligned to Slow Axis

    Fiber length

    1.0 +0.075/-0 m for Item NumbersEnding in -1
    2.0 +0.075/-0 m for Item NumbersEnding in -2
    5.0 +0.075/-0 m for Item NumbersEnding in -5
    10.0 +0.075/-0 m for Item NumbersEnding in -10

    Loose tube type

    900um/2mm/3mm loose tube can be choose

    Operating temperature

    0 to 70 ℃

    Storage temperature

    -45 to 85 ℃


    PN#

    PM-1064PM-FC

    PM-1310PM-FC

    PM-1550PM-FC

    PM-2000PM-FC

    Test wavelength

    1064 nm

    1310 nm

    1550 nm

    2000 nm

    Operating wavelength

    970 - 1550 nm

    1270 - 1625 nm

    1440 - 1625 nm

    1850 - 2200 nm

    Cut-off wavelength

    920 ±50 nm

    1200 ±70 nm

    1370 ±70 nm

    1720 ±80 nm

    Fiber type

    PM980-XP(Panda)

    PM1300-XP(Panda)

    PM1550-XP(Panda)

    PM2000(Panda)

    Maximum insertion loss a

    0.7 dB

    0.5 dB

    0.5 dB

    0.5 dB

    Minimum extinction ratio a

    22 dB

    23 dB

    23 dB

    23 dB

    Mode field diameter b

    7.7 um@ 1064 nm

    9.3 ±0.5 um @ 1300 nm

    9.9 ±0.5 um @ 1550 nm

    8.6 um @ 2000 nm

    Numerical aperture c

    0.12

    0.13

    0.125

    0.2

    Return loss a

    60 dB Typical

    Fiber connector

    FC/APC

    Connector groove width

    2.00 mm ±0.02

    Alignment method

    Narrow Key Aligned to Slow Axis

    Fiber length

    1.0 +0.075/-0 m for Item NumbersEnding in -1
    2.0 +0.075/-0 m for Item NumbersEnding in -2
    5.0 +0.075/-0 m for Item NumbersEnding in -5
    10.0 +0.075/-0 m for Item NumbersEnding in -10

    Loose tube type

    FT030-BLUE

    Operating temperature

    0 to 70 ℃

    Storage temperature

    -45 to 85℃

    a. Measured at the test wavelength.

    b. Mode field diameter (MFD) is the standard value. The diameter at the power 1/e2 position in the near field.

    c. Numerical aperture (NA) is the standard value.



    1550PM fiber optic patch cord test

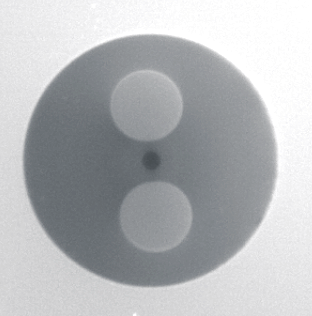

    1. End face test





    2. IL test

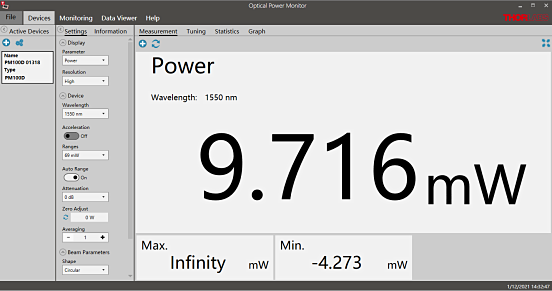

    Laser power before access

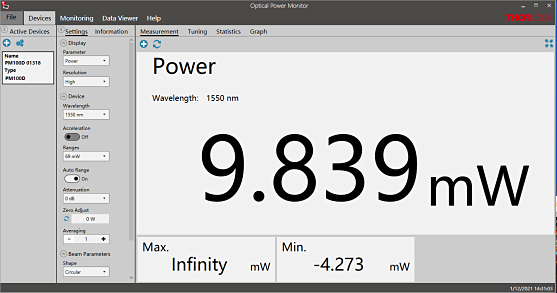

    Power after access to fiber jumper

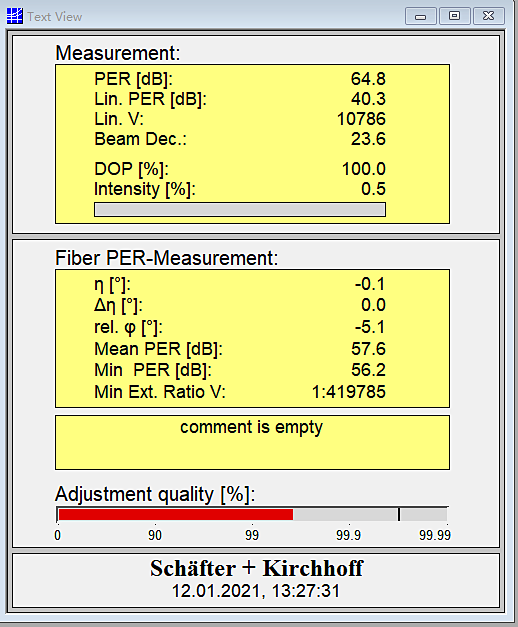

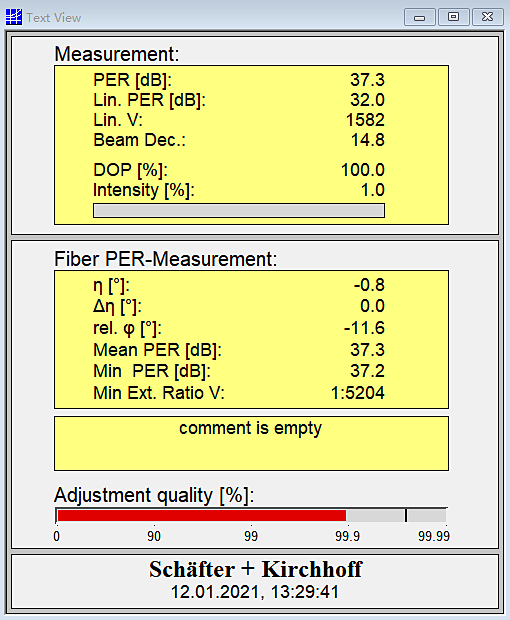

    3.Extinction ratio test


    Laser direct test




    after connecting to fiber jumper
