Features

(A) Software Features:

◆ The software developed by the all-English intelligent UBC team can optimize parameters according to the specific experimental requirements of customers

◆ The amplitude of the flame head scan can be set according to the required stretching length and cone shape

◆ The stretching speed can be changed according to the change of stretching length and cone temperature.

◆ The flow rate of hydrogen and oxygen can be changed according to the stretching length and stretching speed

◆ The intelligent energy software storage memory function facilitates users to call the optimal production data

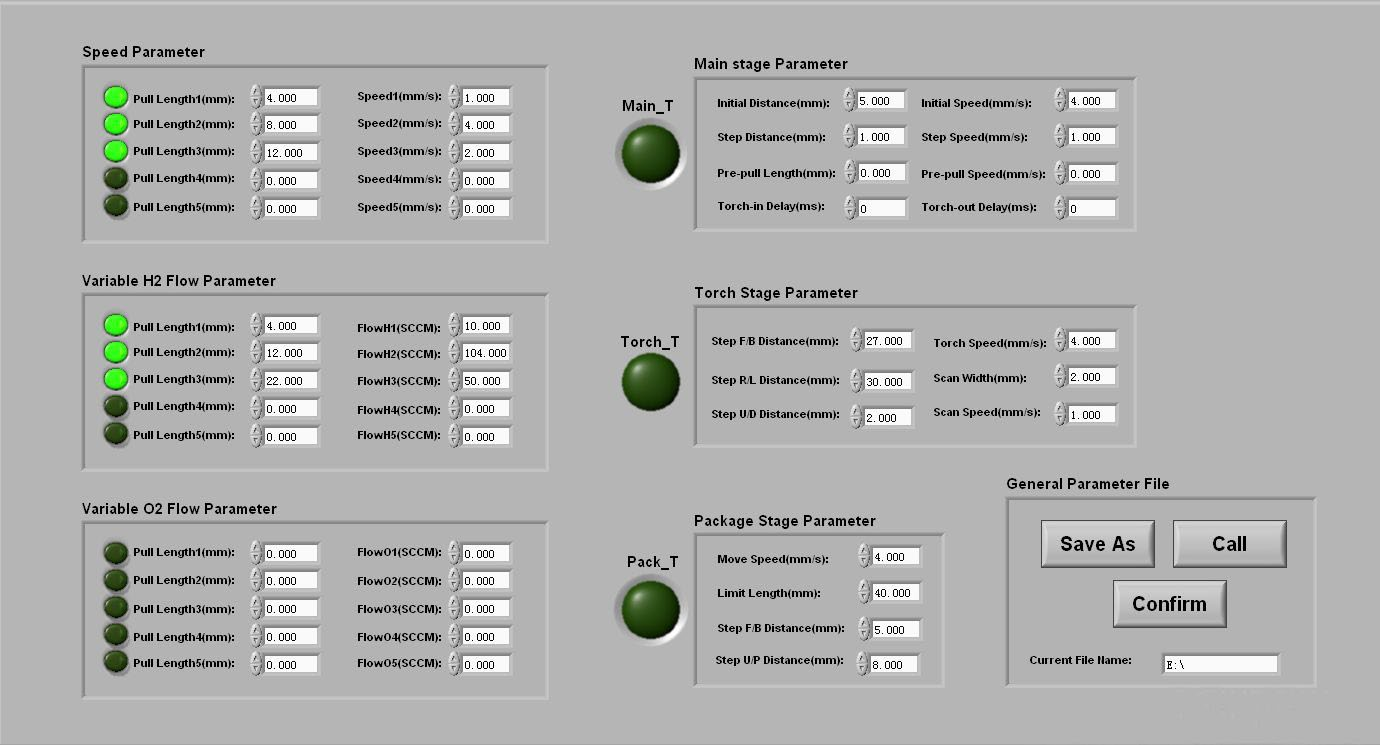

Software interface GUI

(B) Hardware features (different hardware designs are selected according to the differences in the developed devices)

◆ The system adopts an external hydrogen and internal oxygen mixed flame head to improve the temperature instability caused by the original upper and lower oxygen addition, and improve the heating temperature and heating uniformity

◆ The extended InGaAs detector is used to facilitate customers to develop and produce 2um devices

◆ The Japanese sliding wire guide + precision ball screw is used to ensure the maximum single-sided stretching range of 40mm

◆ The American Alicat gas flow meter and driver are used to ensure the stability of the flame temperature during the stretching process

◆ Special fixtures can be designed according to the core diameter of the optical fiber used

◆ Different detectors are selected according to the working wavelength of the developed device

◆ According to the core diameter of the optical fiber used, a flow meter with a suitable range is selected

◆ Different flame heads and fixing methods are designed according to the requirements of optical fiber taper

◆ On the basis of the customized optical fiber stretching platform, the ordinary optical fiber taper function is opened to realize the "one machine multi-function open system"

◆ CCD visual system (optional) to assist in observing the process of optical fiber alignment/tapering

(C) Compared with general machines (as shown below)

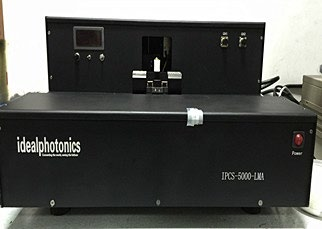

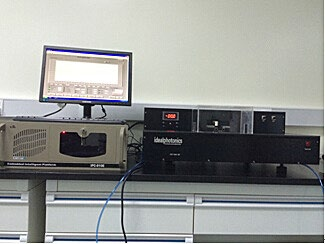

Ordinary optical fiber fusion taper machine	Idealphotonics Fiber Fused Taper Machine

◆ The brushed shell has an excellent industrial texture

◆ The working platform is 1/3 longer than ordinary machines, ensuring the convenience of secondary upgrades

◆ Equipped with a precision ball screw (pitch 2mm) to ensure the axial stretching accuracy and stable movement speed of the machine

◆ In addition to the manufacturing of the taper platform, we can provide users with a real "one-basket" service in the selection of special optical fibers, packaging materials and finished product testing instruments

Cone platform indicators:

A. Ordinary single-mode fiber coupler

B. Polarization-Maintaining Fiber Coupler

C. N x M Large Core Multimode Fiber Combiner

D. Fiber Optic Single Taper

Main device indicators:

Principle of fused taper:

The optical fiber taper system uses vacuum adsorption and special fixtures to position and clamp two or more optical fibers on the optical platform, and rotates the two or more bare fibers without coating in a certain way, brings the axes (only for polarization-maintaining fibers) closer, heats and melts them under hydrogen-oxygen flame, and stretches them to both sides at a certain speed, eventually forming a special waveguide structure in the form of a double cone in the heating area, thereby achieving the purpose of making various optical fiber coupling devices and optical fiber tapers.

Tapered Fiber Testing:

Tapered fiber test results

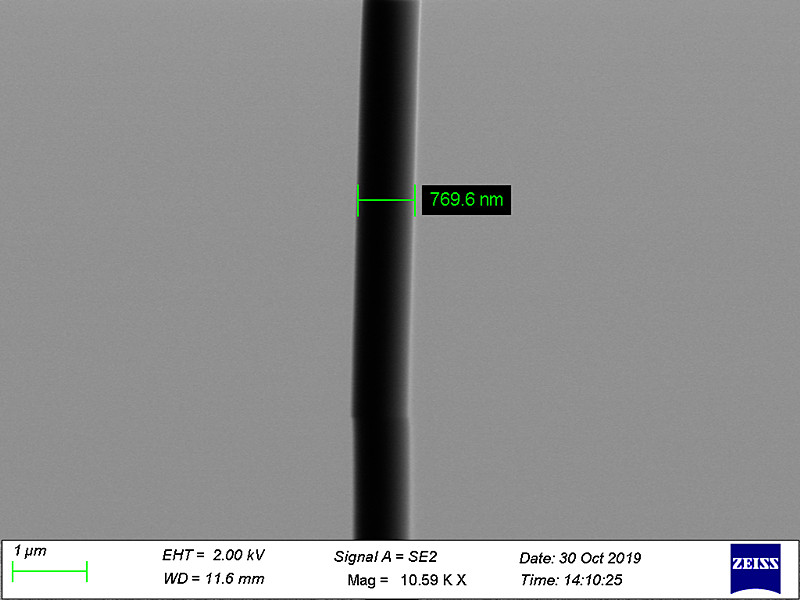

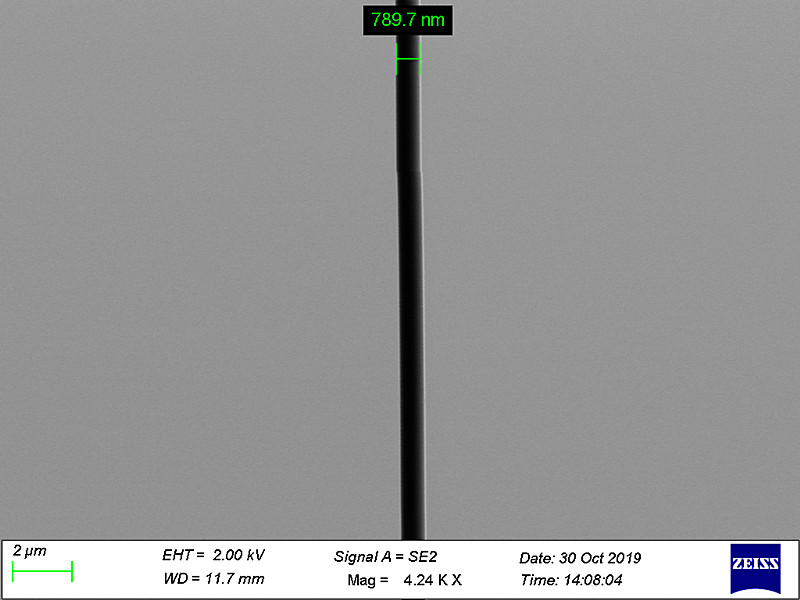

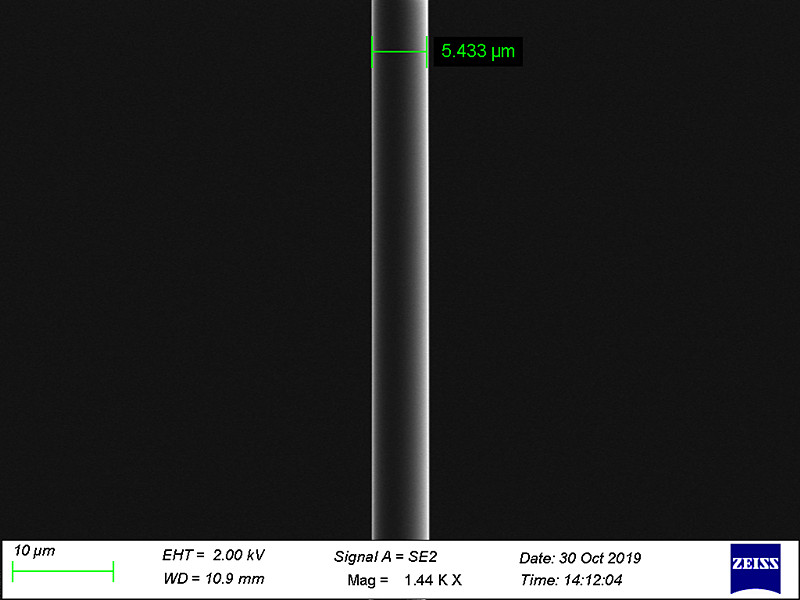

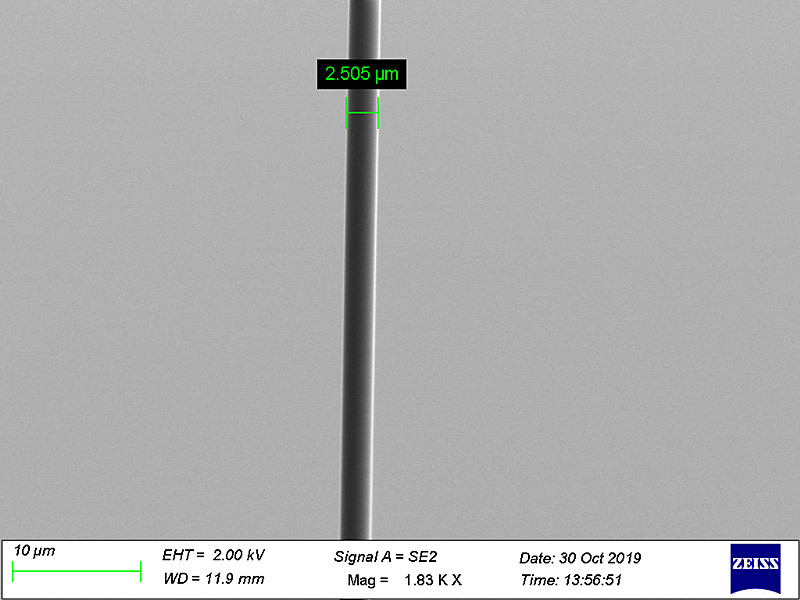

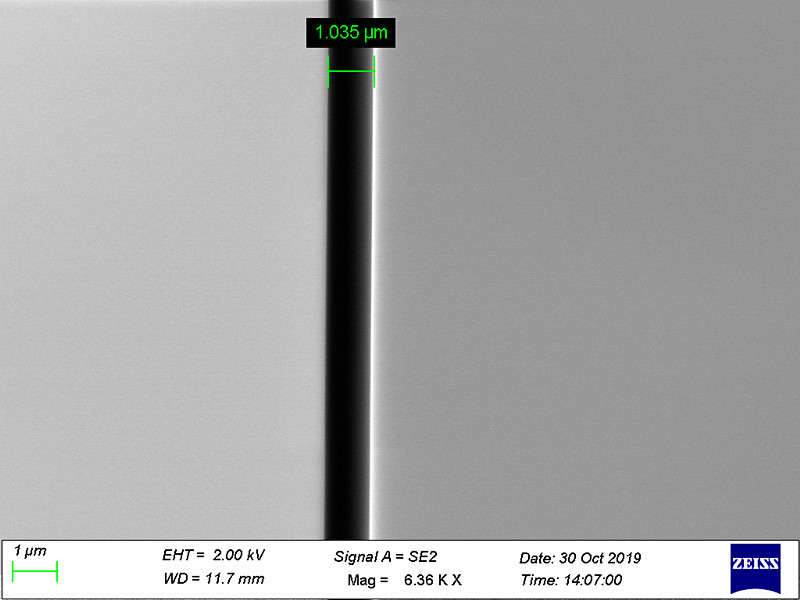

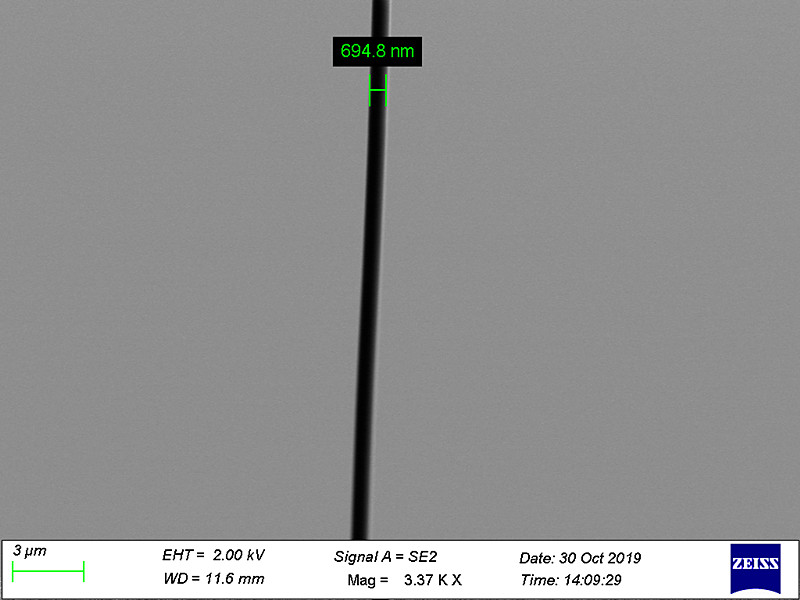

Micron-level optical fiber data measured by power microscope

Tapered Fiber Placement:

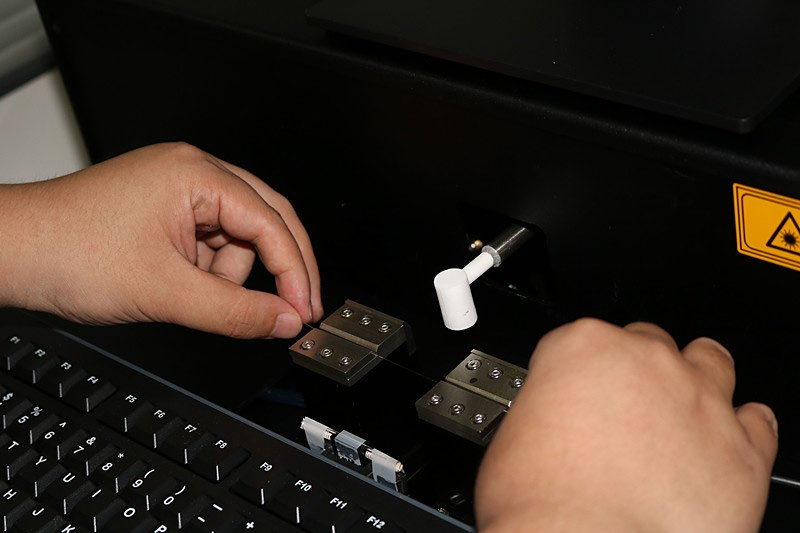

How to place tapered fiber
