    • 1550nm C-band ASE Modular with Broadband Light Source of 30mW (Gaussian Spectrum)

    C- band ASE broadband light source (Gaussian spectrum) is a special light source developed for fiber optic gyroscope applications. The operating wavelength is in the 1550nm wavelength range, and the spectrum is close to the Gaussian shape. Through spectrum control and temperature compensation, better wavelength stability and power stability are achieved, which is very suitable for applications such as fiber optic gyroscopes.

    产品特点Gaussian spectrum 、Wide temperature range 、Wider spectral range

    产品货号无

    应用领域Fiber Optic Gyroscope 、Fiber Optic Sensing 、Production Test

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • General parameters

    Optical Indicators

    Unit

    Typical Value

    Remark

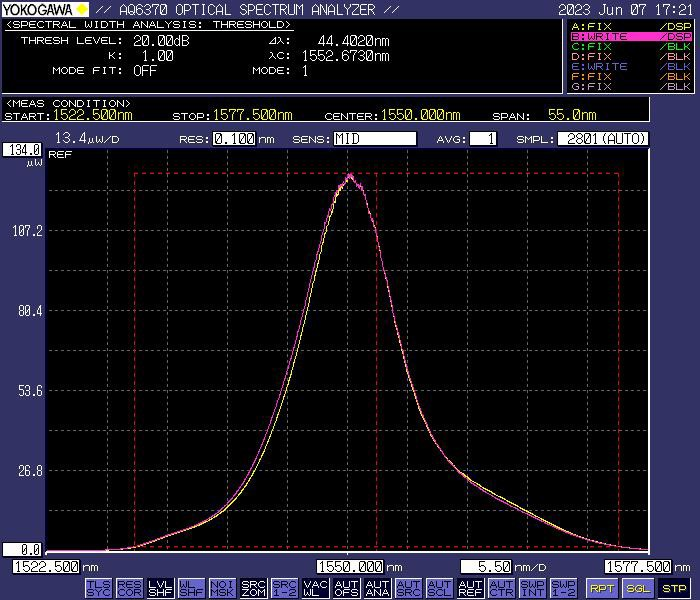

    Spectral Shape

    -

    Gaussian


    Central Wavelength

    nm

    1550±5


    Spectral Range

    nm

    10

    3dB Width

    Output Optical Power

    mW

    10/20/30

    Fixed power

    Spectral Ripple

    dB

    ≤0.2


    Stability Over Temperature

    -

    ≤10%

    -40~70℃

    stability Over Temperature

    ppm

    ≤200

    -40~70℃

    Wavelength Stability at Room Temperature

    ppm

    ≤5

    30min, 25℃

    OUTPUT ISOLATION

    dB

    >35


    Polarization Degree PER

    dB

    ≤ 0.2


    Pigtail and Connector Types

    -

    SMF- 28

    FC/APC



    Electrical and Environmental Parameters

    Typical Value

    Control Method

    RS232 serial communication

    Communication Interface

    DB9 Female

    Operating Voltage

    5V DC, <15W

    Power Consumption

    ≤3W (when working at normal temperature);

    ≤5W (at startup moment)

    Size

    Ф84(D)×26(H)mm

    Operating Temperature Range

    -40~+70°C

    Storage Temperature Range

    -50~+80°C

    Operating Humidity Range

    0~70%



    Ordering Information/Model

    ASE

    Spectral range

    Output power ( mW )

    Output pigtail type

    Package


    C- GS

    10/20/30

    SM= SMF- 28

    M = Module



    1550nm band ASE broadband light source (Gaussian type)
