    Idealphotonics' InGaAs Amplified Photodetector with infrared extension covers a sensing range from 800nm to 2600nm. It features 8 adjustable gain levels for quantifiable photoelectric conversion and offers a wide dynamic range. This detector is ideal for various photoelectric development scenarios, providing excellent performance at a high cost-performance ratio. It is commonly used for near-infrared and mid-infrared light measurements.

    产品特点Sensing range of 800nm to 2600nm, often used in near- and mid-infrared light measurements、 Amplified detector with 8 adjustable gain levels for quantifiable photoelectric conversion、 Wide dynamic range, suitable for various infrared photoelectric development scenarios、 Excellent performance and high cost-effectiveness、 Full technical support、 Customization available

    产品货号E80043187

    应用领域Near- and mid-infrared light measurement

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Main Parameters



    Parameters

    Value

    Wavelength Range

    800-2600nm

    800-2200nm

    Response Time Constant

    25ns

    35ns

    200ns

    Gain Range

    Hi-Z Load: 1.51kV/A～4.75MV/A; 50Ω Load: 0.75kV/A～2.38MV/A

    Signal Amplitude

    Hi-Z Load: 0～10V; 50Ω Load: 0～5V

    Gain Adjustment Mode

    Rotatable switch adjustment: 0～70dB, 10dB per step, 8 steps. Bandwidth is inversely proportional to gain.

    NEP

    1.0 × 10-12W/Hz1/2

    1.0 × 10-12W/Hz1/2

    2.5 × 10-14W/Hz1/2

    Active Area

    1mm×1mm

    1mm×1mm

    2mm×2mm

    Sensitive Surface Depth

    0.13"     (3.3  mm)

    Detector Net Weight

    0.10kg

    Operating Temperature

    10-40℃

    Storage Temperature

    -20-70℃

    Appearance Dimensions

    2.79" X 2.07" X 0.89"  (70.9  mm X  52.5  mm X  22.5  mm)

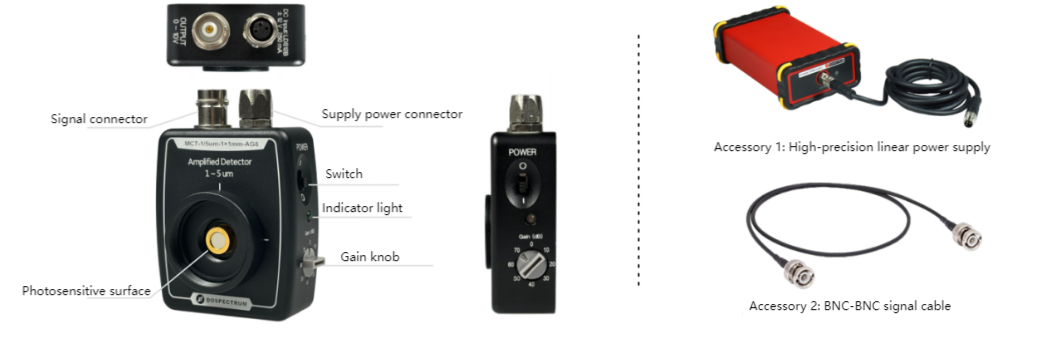

    Power Interface

    Power Switch

    Signal Interface

    Gain Adjustment

    Mounting Interface

    Optical Interface

    LUMBERG  R SMV3  FEMA LE

    Sliding Switch

    With LED Indicator

    BNC Female Socket

    8-Step Knob Adjustment

    M4×2

    SM1× 1

    SM0.5 × 1


    Eight-Step Quantitative Adjustable Gain Parameters



    0dB

    10dB

    20dB

    30dB

    Gain (Hi-Z)

    1.51× 103V /A

    Gain (Hi-Z)

    4.75× 103V /A

    Gain (Hi-Z)

    1.5 × 104V/ A

    Gain (Hi-Z)

    4.75× 104 V/A

    Gain (50Ω)

    0.75× 103V /A

    Gain (50Ω)

    2.38× 103V /A

    Gain (50Ω)

    0.75× 104V /A

    Gain (50Ω)

    2.38× 104 V/A

    Bandwidth

    13MHz

    Bandwidth

    1.7MHz

    Bandwidth

    1.1MHz

    Bandwidth

    300kHz

    Noise(RMS)

    ≤258uV

    Noise(RMS)

    ≤250uV

    Noise(RMS)

    ≤250uV

    Noise(RMS)

    ≤250uV

    40dB

    50dB

    60dB

    70dB

    Gain (Hi-Z)

    1.51× 105V /A

    Gain (Hi-Z)

    4.75× 105V /A

    Gain (Hi-Z)

    1.5 × 106V/ A

    Gain (Hi-Z)

    4.75× 106 V/A

    Gain (50Ω)

    0.75× 105V

    Gain (50Ω)

    2.38× 105V

    Gain (50Ω)

    0.75× 106V

    Gain (50Ω)

    2.38× 106


    /A


    /A


    /A


    V/A

    Bandwidth

    90kHz

    Bandwidth

    28kHz

    Bandwidth

    9kHz

    Bandwidth

    3kHz

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤250uV

    Noise (RMS)

    ≤300uV

    Noise (RMS)

    ≤400uV

    Signal Offset

    ±8mV(Typ.) ， ±12mV(Max)

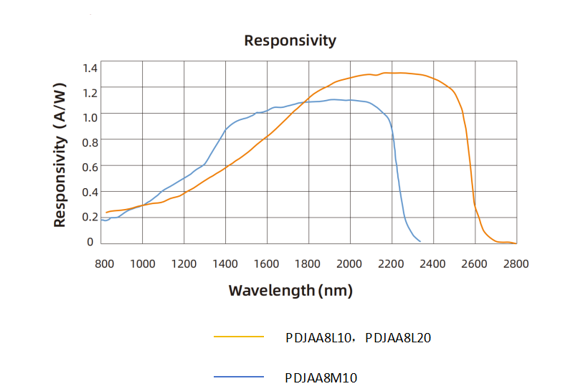

    Response Curve





    Product Configuration



    Attachment 1: Optional Configuration Table



    Infrared Extended InGaAs Amplified Photodetector

    Optional Configurations

    Product Name

    Material

    Type

    Features

    Wavelength Range Photosensitive Area

    Reserved Optional Configurations

    PD: "Photodetector"

    J: InGaAs (Indium Gallium Arsenide)

    A: Amplified Type

    A: Adjustable Gain

    8M10 ：800-2600nm ，1mm × 1mm






    8L10 ：800-2200nm ，1mm× 1mm






    8L20 ：800-2200nm ，2mm× 2mm




    Attachment 2: Model and Part Number Cross Reference Table

    Model

    Part Number

    Specs

    PDJAA8M10

    A80153457

    800-2600nm infrared extended InGaAs photodetector, light-sensitive size 1mm×1mm, 0～70 dB eight-level quantitative adjustable gain, response time constant 25ns

    PDJAA8L10

    A80153458

    800-2200nm infrared extended InGaAs photodetector, light-sensitive size 1mm×1mm, 0～70 dB eight-level quantitative adjustable gain, response time constant 35ns

    PDJAA8L20

    A80153459

    800-2200nm infrared extended InGaAs photodetector, light-sensitive size 2mm×2mm, 0～70 dB eight-level quantitative adjustable gain, response time constant 200ns
