900-2700nm Large photosensitive surface InGaAs Indium Gallium Arsenide Photodiode φ2mm

首页 PhotoDetectors Photodiode InGaAs photodiode Indium Gallium Arsenide InGaAs PIN Photodiode (2.7um Extended Type, Large Light Sensing Surface) 900-2700nm Large photosensitive surface InGaAs Indium Gallium Arsenide Photodiode φ2mm

900-2700nm Large photosensitive surface InGaAs Indium Gallium Arsenide Photodiode φ2mm

The PL3000 series is a full-color PIN photodiode with a cutoff wavelength of up to 2700nm. It uses InGaAs material, a ternary compound semiconductor InGaAs material used to make various optoelectronic devices, and the material itself has stable performance. This series is designed for environmental gas detection applications, measuring CO or CO2, it provides excellent parallel resistance and response in a wide spectrum range, in addition, we can read the pin change to TO-46, TO-18, TO-5 optional.

产品特点Effective area (0.3-3mm) Longer cut-off wavelength 2.7um High shunt resistance、 Multiple lens options (biconvex, plano-convex, ball lens)、 Multiple packaging structures available (TO46, TO18, TO5)

产品货号E80042062

应用领域Gas sensing detection、 Flame/spark detection、 FTIR、 Short-wave infrared photoelectric detection

产品单价联系客服询价

到货日期请咨询客服获得货期

产品库存请咨询客服

Sherry

电话：16628709332

邮箱：moli@microphotons.com

加入询价单在线咨询

相关产品

主要参数
可选配置表
资料下载

主要参数

核心参数

尺寸图

2.7um extended response electrical characteristics @25℃±2℃

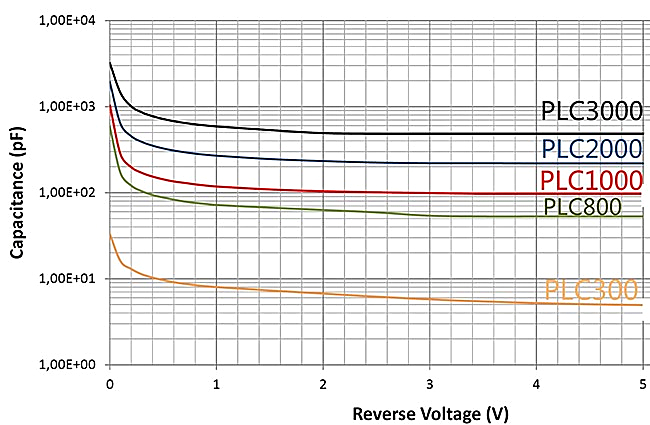

Performance specifications	Unit	PLC300/2.6	PLC500/2.6	PLC1000/2.6	PLC2000/2.6	PLC3000/2.6
Response diameter	mm	0.3	0.5	1	2	3
Peak wavelength (typical)	um	2.2±0.1	2.2±0.1	2.2±0.1	2.2±0.1	2.2±0.1
Cut-off wavelength (50%)	um	2.6±0.1	2.6±0.1	2.6±0.1	2.6±0.1	2.6±0.1
Responsivity @λP (min/typ)	A/W	0.9/1.0	0.9/1.0	0.9/1.0	0.9/1.0	0.9/1.0
Shunt resistance (min/typ)	Ω	16K/25K	5K/8K	2K/4K	0.5K/1.5K	0.2K/0.5K
Dark current (max)	uA	13@1V	20@0.5V	80@0.5V	320@0.5V	500@0.5V
Capacitance @0V	pF	100	270	1000	4400	10000
Bandwidth W/50Ω@0V	MHz	32	16	3.2	0.8	0.35
Rise time W/50Ω@0V	ns	11	22	110	440	1000
NEP@λ_PEAK	W/Hz^1/2	81×10-14	143×10-14	203×10-14	331×10-14	574×10-14
Linearity (±0.2dB@0v)	dBm	6	6	6	6	6
Packaging specifications	-	TO-46	TO-46	TO-46	TO-5	TO-5

Maximum Ratings

Performance specifications	Unit	PLC300/2.6	PLC500/2.6	PLC1000/2.6	PLC2000/2.6	PLC3000/2.6
Storage temperature	℃	-40-125	-40-125	-40-125	-40-125	-40-125
Operating temperature	℃	-40-85	-40-85	-40-85	-40-85	-40-85
Reverse breakdown voltage	V	2	0.5	0.5	0.5	0.5
Reverse breakdown current	mA	10	10	10	10	10
Forward current	mA	10	10	10	10	10
Maximum power handling	mW	50	50	50	50	50

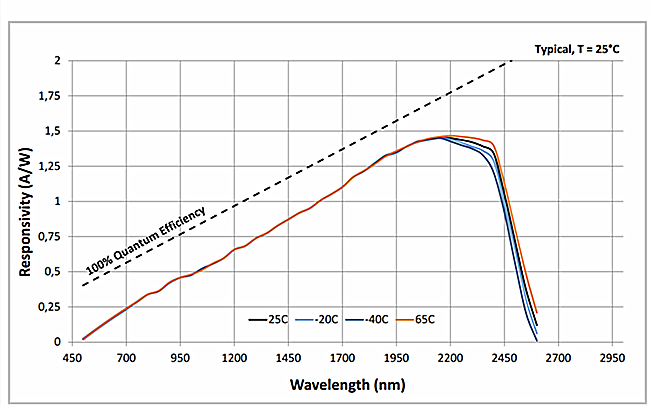

Spectral response

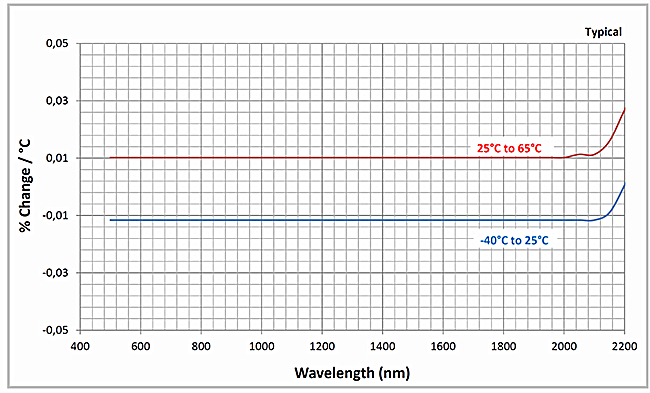

Response temperature coefficient Ⅰ

Response temperature coefficient Ⅱ

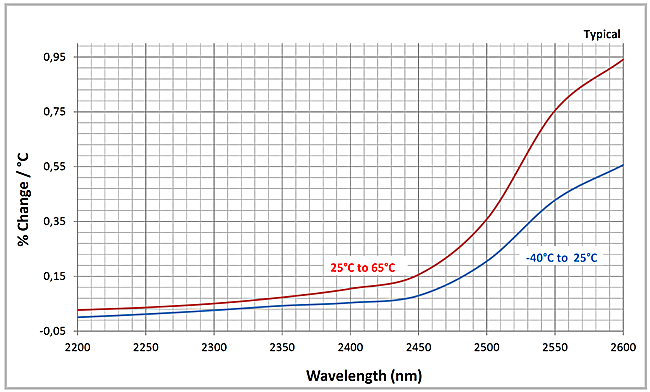

Response temperature coefficient Ⅲ

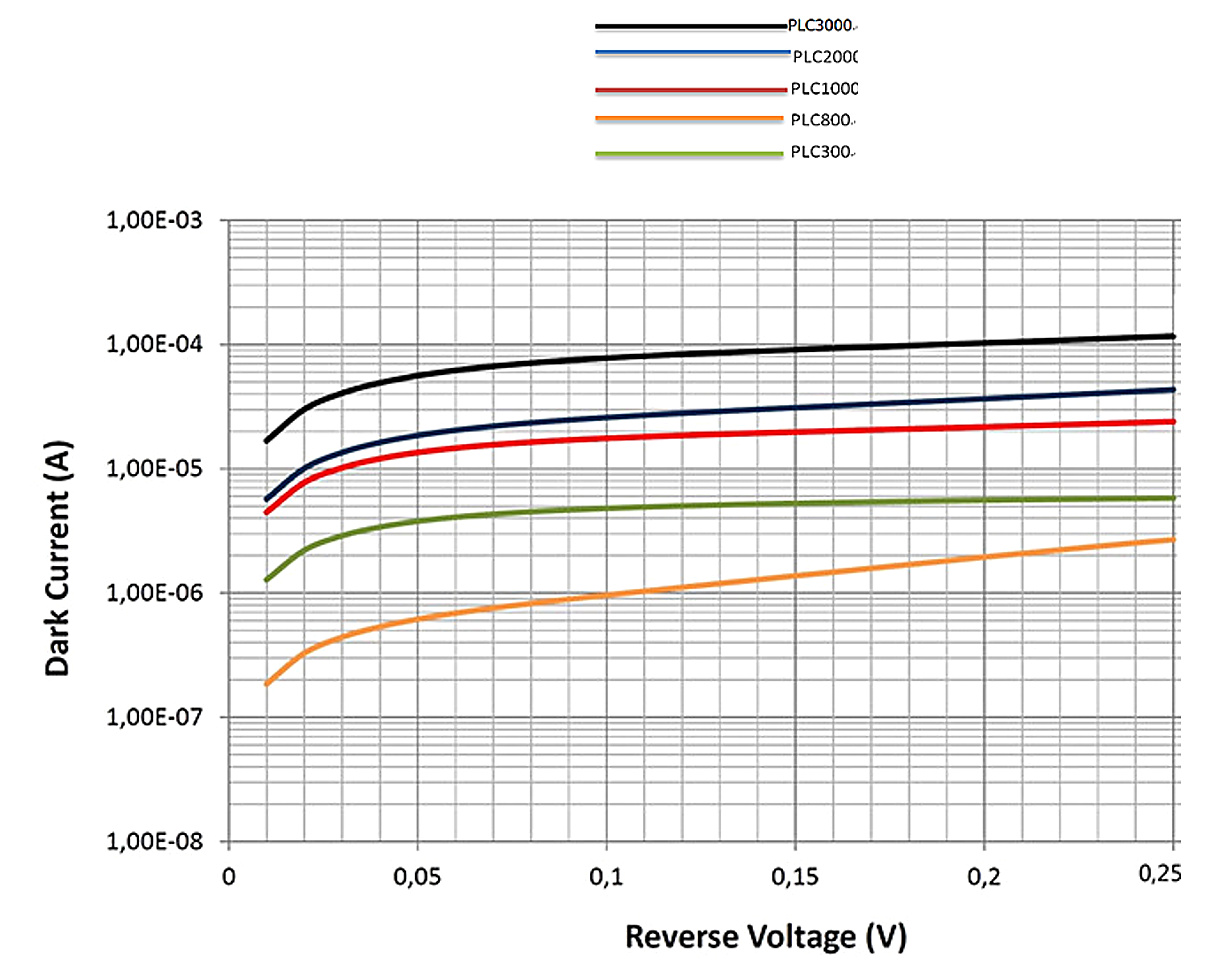

Dark Current and Dark Current Backup Voltage

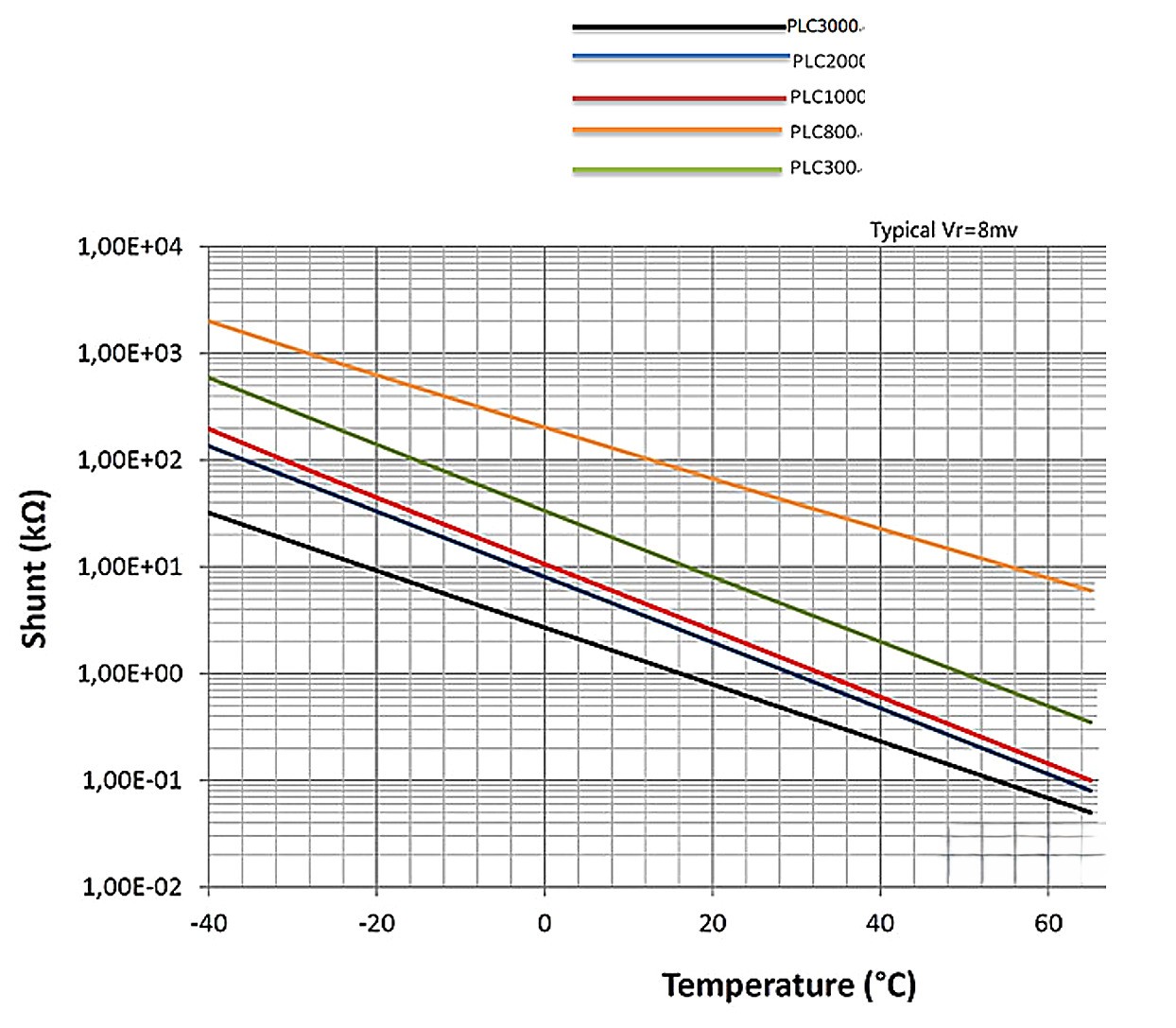

Comparative Temperature of Shunt Resistance

Ordering Information

PLC-□-□□-W□□□□-XX

□------detector material

A：Si PD

B：InGaAs PD C：Si APD

D：InGaAs APD

E：Si Quadrant APD

F：InGaAs Quadrant APD

□□------light sensing photosensitive surface diameter

300：0.3mm

500：0.5mm

1000：1mm

2000：2mm

3000：3mm

W□□□□------cut-off wavelength

W2.6：2.6um

XX: detector package type

T46W=TO46 Window

T18W=TO18 Window

T5W=TO5 Window

T46L=TO46 Lens

T18L=TO18 Lens

T5L=TO5 Lens

T46W=TO46 Window

SA=SMF-28E+ FC/APC

SP=SMF-28E+ FC/PC

PA=PM Fiber+ FC/APC

PP=PM Fiber+ FC/PC
