Fiber optic patch cords (also known as fiber optic connectors) are optical cables with connector plugs installed on both ends to achieve active connection of the optical path. Idealphotonics fiber optic patch cords have high-quality, narrow-pin ceramic FC/AFC connectors on both ends. Produced by our equipment, each patch cord is individually tested at the test wavelength listed in the specification label to ensure the extinction ratio and low back reflection (return loss) when connecting fibers. These patch cords are in stock and have high-quality polishing to ensure a typical return loss of more than 60 dB.
产品特点Typical 60 dB return loss、 Ceramic ferrule, angled 8° (APC)、 3 mm outer protective layer、 Custom patch cords available
产品货号A80150291
应用领域Fiber optic communication system、 Fiber optic access network、 Fiber optic data transmission、 Fiber optic CATV、 Local area network (LAN)、 Test equipment、 Fiber optic sensor
产品单价联系客服询价
到货日期请咨询客服获得货期
产品库存请咨询客服
Sherry
电话:16628709332
邮箱:moli@microphotons.com
相关产品
Specifications
PN# | SM-405-2-1 FC/APC | SM-633-2-1- FC/APC | SM-780-2-1- FC/APC | SM-1060-2-1- FC/APC | SM-1310/1550-2-1-FC/APC | SM-1950-2-1-FC/APC |
Test wavelength | 405 nm | 630nm | 780nm | 1060nm | 1550nm | 1950nm |
Operating wavelength | 400 - 680 nm | 620 - 850 nm | 770 - 1100 nm | 970 - 1550 nm | 1270 - 1625 nm | 1750 - 2100 nm |
Cut-off wavelength | 380 ± 20 nm | 570 ± 50 nm | 720 ± 50nm | 920 ±50 nm | 1200 ±70 nm | 1620 ±80 nm |
Fiber type | SM 405 | SM630nm | HI780 | HI1060 | SMF -28e | SM1950 |
Maximum insertion loss | 1.5 dB | 0.5 dB | 0.5 dB | 0.5 dB | 0.5 dB | 0.5 dB |
Mode field diameter | 3.6±0.5 um @ 405 nm | 4.0±0.4um @ 630 nm | 4.6±0.5 @ 780 nm | 6.2± 0.3 @1060 nm | 10.40.5 @ 1550 nm | 8.6 um @ 1950 nm |
Numerical aperture | 0.12 | 0.13 | 0.14 | 0.14 | 0.14 | 0.14 |
Return loss | 60 dB Typical | |||||
Fiber connector | FC/APC-FC/APC(FC/FC-FC/FC, FC/APC-FC/FC) optional | |||||
Fiber length | 1 meter (length can be customized) | |||||
Loose tube type | 900um/2mm/3mm loose tube optional | |||||
Operating temperature | 0 to 70 ℃ | |||||
Storage temperature | -45 to 85 ℃ |
1550nm single mode fiber optic patch cord test
1. End face test
2. Insertion loss test

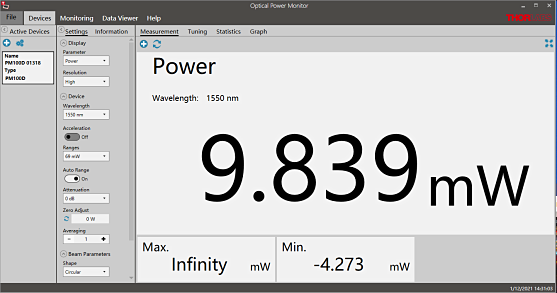

Laser power before connecting to fiber patch cord

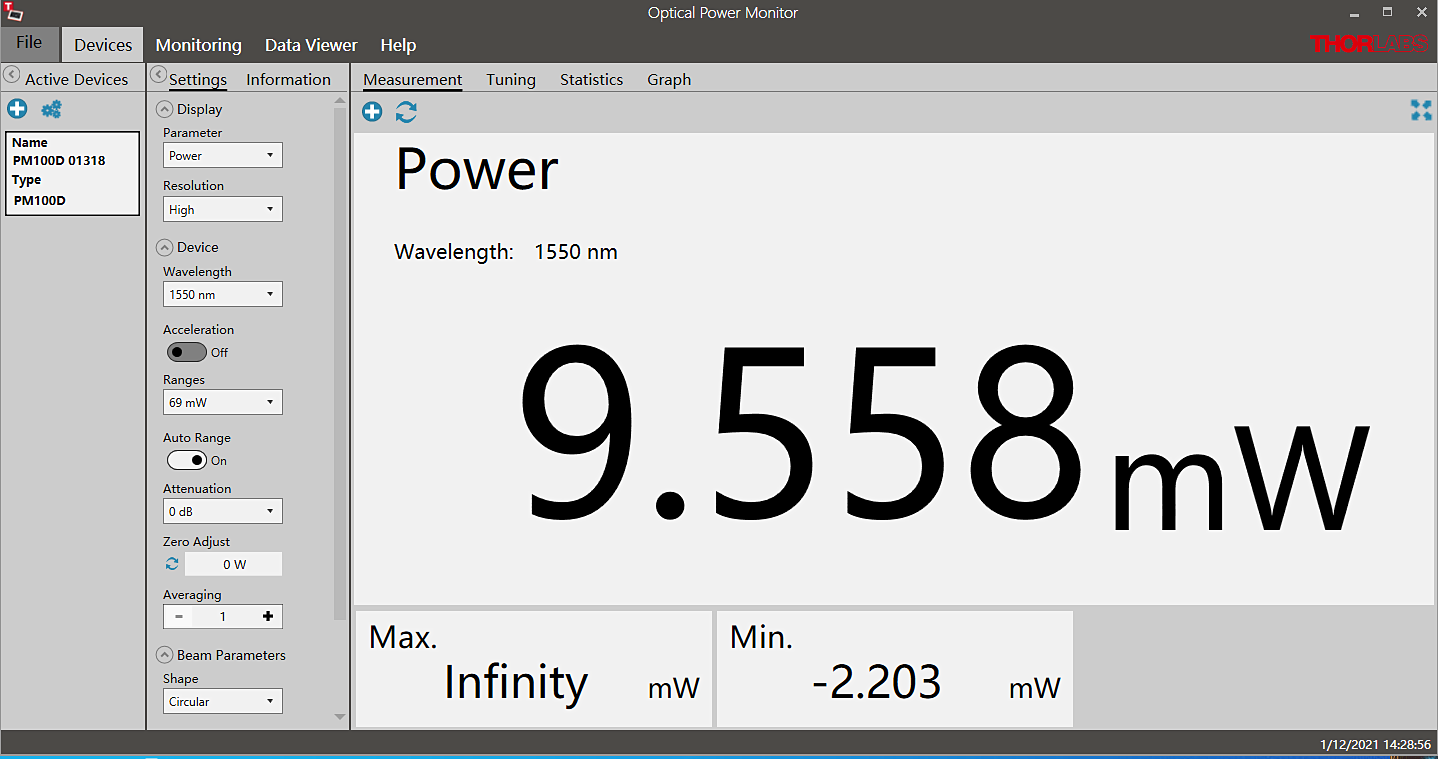

Test the power after connecting the optical fiber patch cord
Ordering Information
SM-633-20-1-FC/APC
SM: Single Mode
633: 633nm
2: 2mm loose tube
1:1m
FC/APC; connector FC/APC-FC/APC
PN# | Description |
SM-633-2-1-FC/APC | 633:633nm, 2:2mm loose tube, 1:1 meter length, FC/APC connector |
