Home/ Products/ Light Sources/ Coherent Sources/ Mid infrared laser/ QCL5260-5.26um low-power desktop DFB-QCL mid infrared quantum cascade laser 10mW/ 5.26μm Low-Power Benchtop DFB-QCL Mid-Infrared Quantum Cascade Laser, 10mW (TDLAS Integrated Control Module)

    • 5.26μm Low-Power Benchtop DFB-QCL Mid-Infrared Quantum Cascade Laser, 10mW (TDLAS Integrated Control Module)

    The QCL5260-5.26um Low Power Desktop DFB-QCL Mid-Infrared Quantum Cascade Laser is a domestically leading, ultra-low power QCL-DFB laser developed by Idealphotonics in the first half of 2018. It offers a tunable range of over 100 nm and an output power greater than 40 mW, meeting industrial needs such as gas sensing for customer testing. The laser provides collimated output with stable power and superior temperature and wavelength stability, surpassing the stability of traditional high-power quantum cascade lasers by several orders of magnitude. This makes it an excellent test source for our mid-infrared testing customers.

    Product features：Low power, high power 、High side-mode suppression ratio 、Software intelligent control 、Compact size

    Part Number：--

    Application area：TDLAS NO system measurement setup 、Mid-infrared system light source 、Mid-infrared device analysis

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters


    No jump mode scanning interval

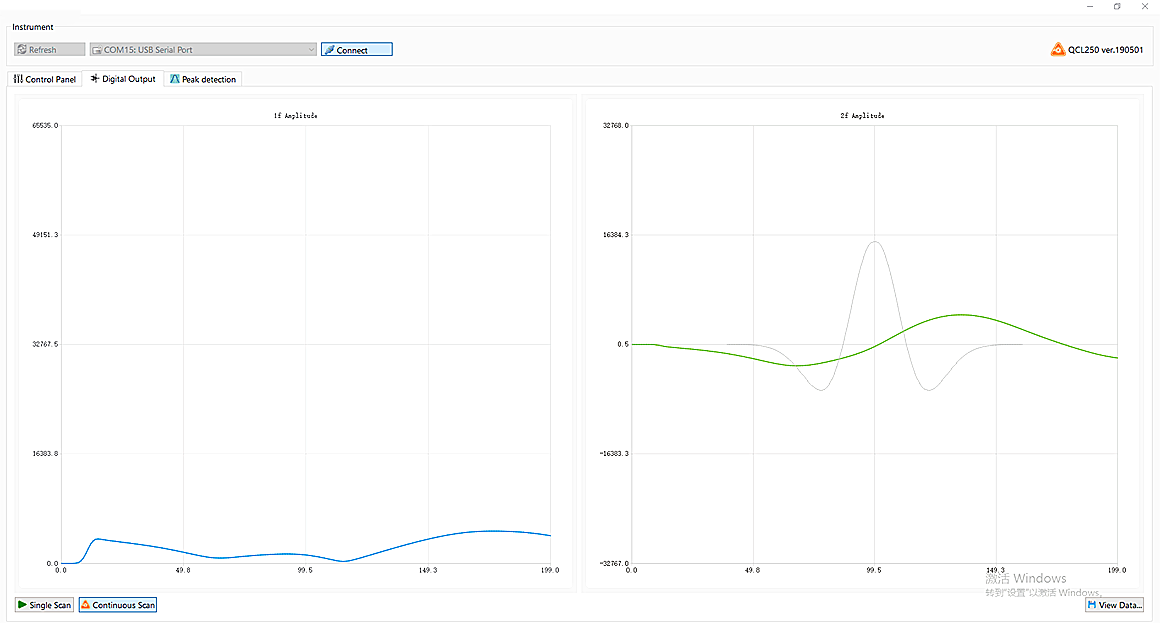

    2F signal acquisition interface:

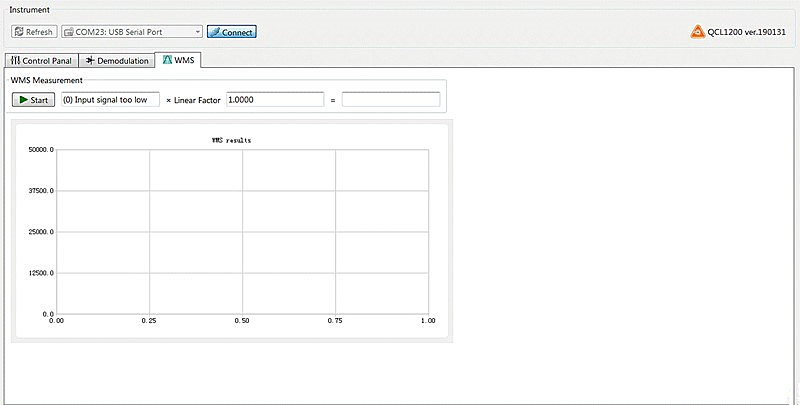

    Algorithm calibration interface:

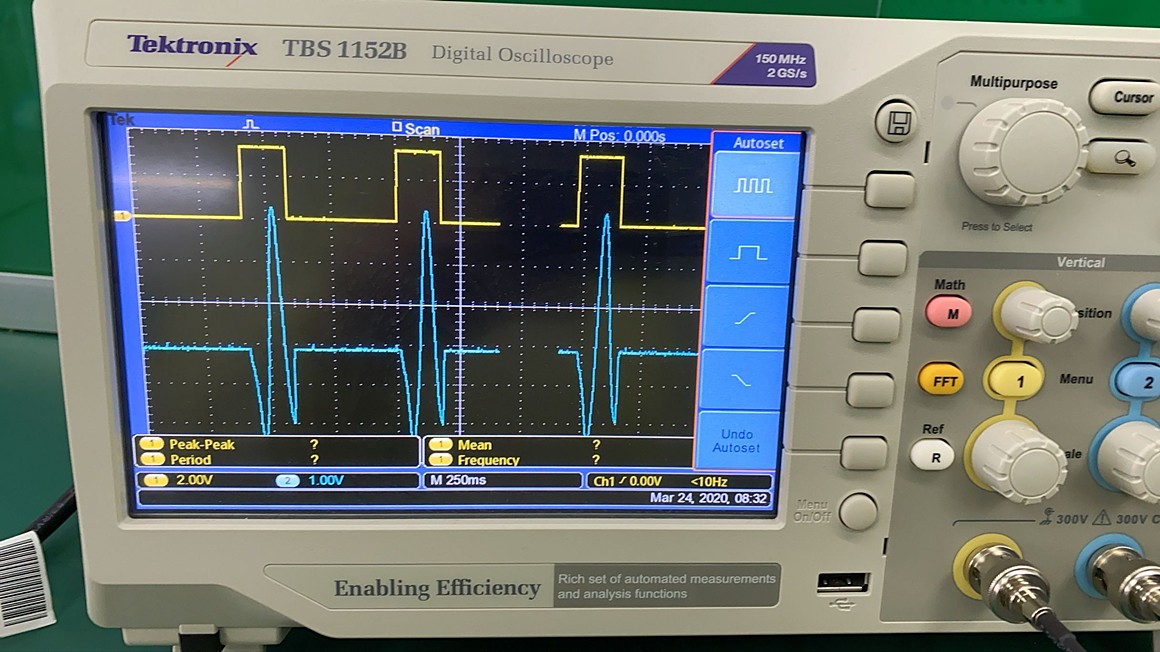

    Linearity test of modulation signal (oscilloscope voltage signal effect diagram)




    Parameters

    Parameters

    Unit

    Technical Specification



    Min.

    Typ.

    Max.

    PN#


    5.26umDFB-QCL

    Laser collimated output power

    mW


    10


    Peak operating wavelength

    um


    5.26


    Spectral width (FWHM)

    MHz


    ＜3


    Output side-mode suppression ratio (SMSR)

    dB

    20



    Output isolation

    dB


    30


    Wavelength temperature coefficient

    nm/℃


    0.6


    Wavelength current coefficient

    nm/mA


    0.2


    Output power stability (8 hours)

    %


    ±1

    ±4

    Output power adjustable range

    %

    0


    100

    TEC working range

    ℃

    0


    50

    Operating voltage

    VAC

    100

    220

    240

    Operating temperature

    ℃

    0


    55

    Storage temperature

    ℃

    -20


    65

    Specifications dimensions

    mm

    290(L)×180(W)×68(H)mm

    Technical specification explanation：

    1.Output power is selectable；

    2.Peak operating wavelength is selectable；

    3.Output power stability test condition is at 25°C, with a 30-minute warm-up after power-on；

    4.Maximum power consumption refers to the overall power consumption under extreme operating conditions。




    The wavelength chart of the 5.26um DFB-QCL laser.





    The wavelength temperature tuning curve of the 5.26um DFB-QCL laser

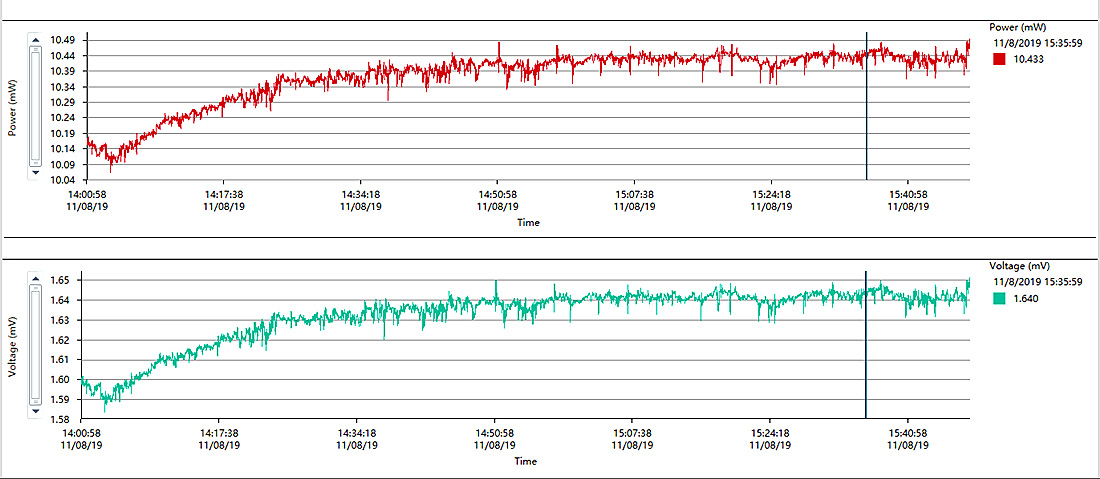

    The power stability of the 5.26um DFB-QCL laser




    The characteristic curve of the QCL laser (using a typical wavelength of 5.26um) shows the output power characteristics




    The wavelength-current spectral diagram of the 5.26um DFB-QCL laser at 25°C


    Yellow line: 150mA, 5267.08nm; Red line: 165mA, 5269.48nm; Green line: 180mA, 5271.52nm;Pink line: 195mA, 5274.60nm;Blue line: 210mA, 5278.28nm.




    The wavelength-temperature spectrum of the 5.26um DFB-QCL laser at 180mA


    Yellow line: 15°C, 5267.84nm; Red line: 20°C, 5269.20nm; Green line: 25°C, 5272.24nm; Pink line: 30°C, 5274.44nm; Blue line: 35°C, 5275.76nm.



    Laser spectrum (continuous) of the laser operating at 10°C


    Absorption spectrum simulation curve



    Quantum cascade laser output spot



    The camera's pixel size is 5 μm, and the Gaussian fit spot diameter is 320 μm




    Control software




    PN#/Ordering info

    MIR-QCL- W□□□□ -☆-△-XX

    W□□□□：Wavelength

    5260: 5260nm

    7400: 7400nm

    10530: 10530nm

    ☆ ：Collimated output

    1: With

    0: Without

    △：Laser type

    FP: QCL-FP

    DFB: QCL-DFB

    XX: Output power

    001=1mw

    010=10mw

    100=100mw

    1000=1000mw


    Optional Configurations

    --
