    • M2x2 Magneto-Optic Switch

    The M2x2 optical switch achieves optical path connection by either passing or blocking optical signals. This switch features a non-mechanical configuration and is activated by electrical control signals. It also has built-in circulator and isolator functions. The product is widely used in aerospace and military equipment.

    产品特点Solid-state high-speed operation 、High stability and reliability 、No epoxy resin in the optical path 、Fail-safe locking mechanism

    产品货号无

    应用领域Aerospace equipment 、Configurable for add/drop functionality 、System monitoring 、Sensor systems

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Performance Specifications



    Parameter

    Unit

    Specification

    Wavelength Range

    nm

    1520 ~ 1580

    Test Wavelength

    nm

    1550

    Insertion Loss 1, 2

    dB

    ≤ 1.2

    TDL

    dB

    ≤ 0.30

    PDL

    dB

    ≤ 0.20

    Return Loss

    dB

    ≥ 50

    Crosstalk



    dB

    Bi-directional ≥ 20

    Uni-directional ≥ 35

    Repeatability

    dB

    ≤ ±0.01

    Switching Time

    us

    ≤ 100

    Pulse Duration

    us

    ≥ 200

    Durability

    Cycles

    ≥10 Billions

    Switch Type

    NA

    Latching

    Operating Current

    mA

    ≤ 200

    Max Optical Power

    mW

    ≤ 500

    Operating Temperature

    ℃

    -5 ~ +70

    Storage Temperature

    ℃

    -40 ~ +85

    Dimensions

    mm

    (L)34.0 × (W)7.5 ×(H)7.5 ±0.2

    Notes:

    1.Tested at room temperature and SOP.

    2.Does not include connectors; a pair of connectors has 0.2dB loss.

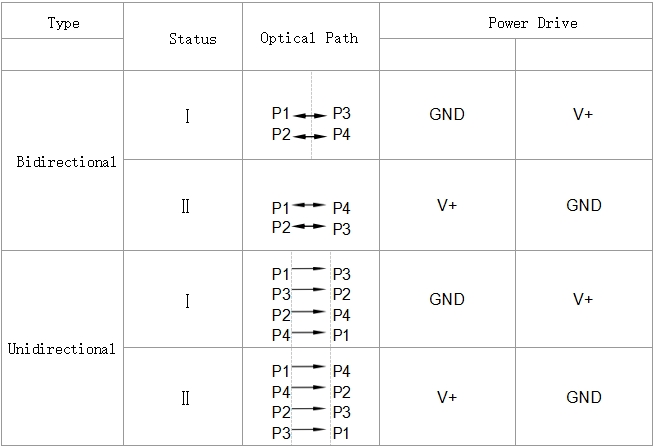

    Power Drive

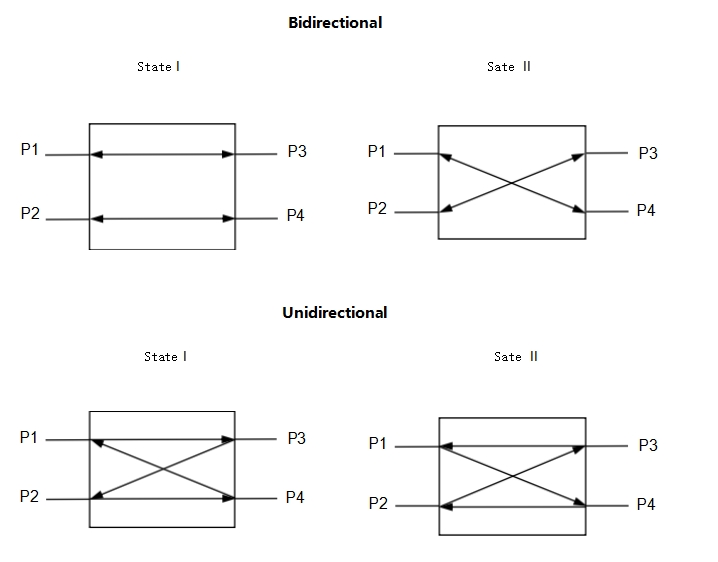

    Functional Diagram



    Ordering Reference Information

    YFS-M2x2-□-□-□-□-□-□-□

    —□

    —□

    —□

    —□

    —□

    —□

    —☑

    Switch Type

    Fiber Type

    Voltage

    Wavelength

    Loose Tube Type

    Fiber Length

    Connector

    B：

    Bidirectional

    U：

    Unidirectional

    SM：

    SM ，9/125

    X：

    Others

    2.5：

    2.5V

    5：

    5.0V

    X：

    Others

    1550：

    1550nm

    X：

    Others

    250：

    250um

    900：

    900um

    X：

    Others

    05：

    0.5m±5cm

    10：

    1.0m±5cm

    X：

    Others

    OO：None

    FC：FC/PC

    FA：FC/APC

    SC：SC/PC

    SA：SC/APC

    LC：LC/PC

    X：Others
