    • M1x8 Magneto-Optical Switch

    The M1x8 optical switch operates by either connecting or blocking optical signals to achieve optical path switching. This switch features a non-mechanical configuration and is activated by an electrical control signal. Additionally, the switch integrates a built-in circulator and isolator functionality. It is widely used in aerospace and military equipment.

    产品特点Solid-state, high-speed operation、 High stability and reliability、 No epoxy resin in the optical path、 Fault-safe locking mechanism

    产品货号无

    应用领域Aerospace equipment、 Configurable add/drop functionality、 System monitoring、 Sensing systems

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Performance Specifications

    Parameter

    Unit

    Specification

    Wavelength Range

    nm

    1520 ~ 1580

    Test Wavelength

    nm

    1550

    Insertion Loss 1, 2

    dB

    ≤ 2.0

    TDL

    dB

    ≤ 0.30

    PDL

    dB

    ≤ 0.20

    Return Loss

    dB

    ≥ 50

    Crosstalk

    dB

    ≥ 40

    Repeatability

    dB

    ≤ ±0.01

    Switching Time

    us

    ≤ 100

    Pulse Duration

    us

    ≥ 200

    Durability

    Cycles

    ≥10 Billions

    Switch Type

    NA

    Latching

    Operating Current

    mA

    ≤ 200

    Maximum Optical Power

    mW

    ≤ 500

    Operating Temperature

    ℃

    -5 ~ +70

    Storage Temperature

    ℃

    -40 ~ +85

    Dimensions

    mm

    (L)40.0 × (W)33.0 × (H)7.5 ±0.2

    Note:
    1. Tested under room temperature and standard operating conditions (SOP).
    2. Excludes connectors, a pair of connectors adds 0.2dB.

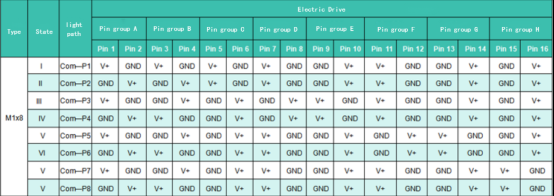

    Electric Drive





    Functional Diagram

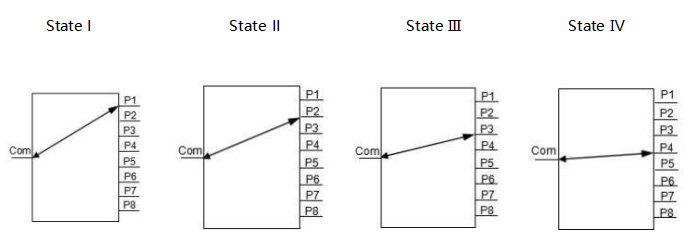

                                                         Bidirectional States

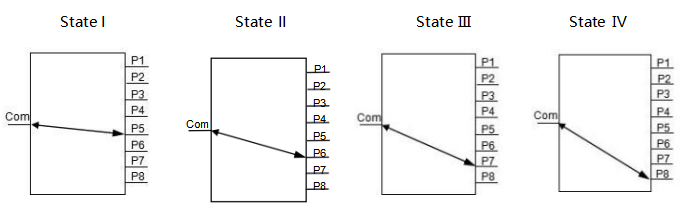

                                                        Unidirectional States








    Ordering Reference Information

    LP-M1x8-□-□-□-□-□-□-□

    —□

    —□

    —□

    —□

    —□

    —□

    —□

    Switch Type

    Fiber Type

    Voltage

    Wavelength

    Loose Tube Type

    Fiber Length

    Connector

    B：

    Bidirectional

    SM：

    SM ，9/125

    X：

    Others

    2.5：

    2.5V

    X：

    Others

    1550：

    1550nm

    X：

    Others

    250：

    250um

    900：

    900um

    X：

    Others

    05：

    0.5m±5cm

    10：

    1.0m±5cm

    X：

    Others

    OO：None

    FC：FC/PC

    FA：FC/APC

    SC：SC/PC

    SA：SC/APC

    LC：LC/PC

    X：Others
