    • 16XXnm 300ns 1X2 Ultrafast Optical Switch

    The NS series 1x4 solid-state fiber optic switch consists of three 1x2 cascaded optical switches. It connects optical channels by redirecting incoming optical signals to the selected output optical fiber. The characteristics of this product are based on the obtained non-mechanical structure (all-crystal) design, which avoids the movement of mechanical parts and the limitations of organic materials. The advantages of this product such as high reliability, high response speed and continuous switching can meet the needs of most optical switch applications.

    产品特点Solid state, high speed 、 Ultra-high reliability 、 Ultra-low insertion loss 、 Compact structure

    产品货号A80171107

    应用领域Optical protection 、 Configurable operations 、 Instruments

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • General parameters

    NS Series 1x2 Switches

    Min. Value

    Typical Value

    Max. value

    unit

    Operating wavelength(1)

    780


    1650

    nm

    Insertion loss(2)

    1260-1650nm


    0.6

    1.0

    dB

    960-1100nm


    0.8

    1.3

    Crosstalk (3)

    20

    25

    35

    dB

    Polarization Dependent Loss PDL (SMF Optical Switch)


    0.15

    0.3

    dB

    Polarization Mode Dispersion PMD (SMF Optical Switch)


    0.1

    0.3

    ps

    ER (PMF Optical Switch)

    18

    25


    dB

    Insertion loss temperature dependence


    0.25

    0.5

    dB

    Return loss

    45

    50

    60

    dB

    Response time (rise, fall)



    300

    ns

    Fiber Type

    SMF-28, Panda PM,

    Drive repetition frequency

    100kHz driver

    DC

    100


    kHz

    500kHz driver

    DC

    500


    Optical power limitation (4)

    Ordinary power switch


    300


    mW

    High power switch



    5

    W

    Operating temperature

    -5


    70

    ℃

    Storage temperature

    -40


    85

    ℃

    (1) The operating bandwidth is approximately ±25nm at 1550nm.

    (2) Measurement without connector, other wavelengths can be customized.

    (3) Crosstalk is measured at 100kHz and may be degraded at higher repetition rates.

    (4) Defined at 1310nm/1550nm. For shorter wavelengths, handling power may be reduced, please contact us for more information.

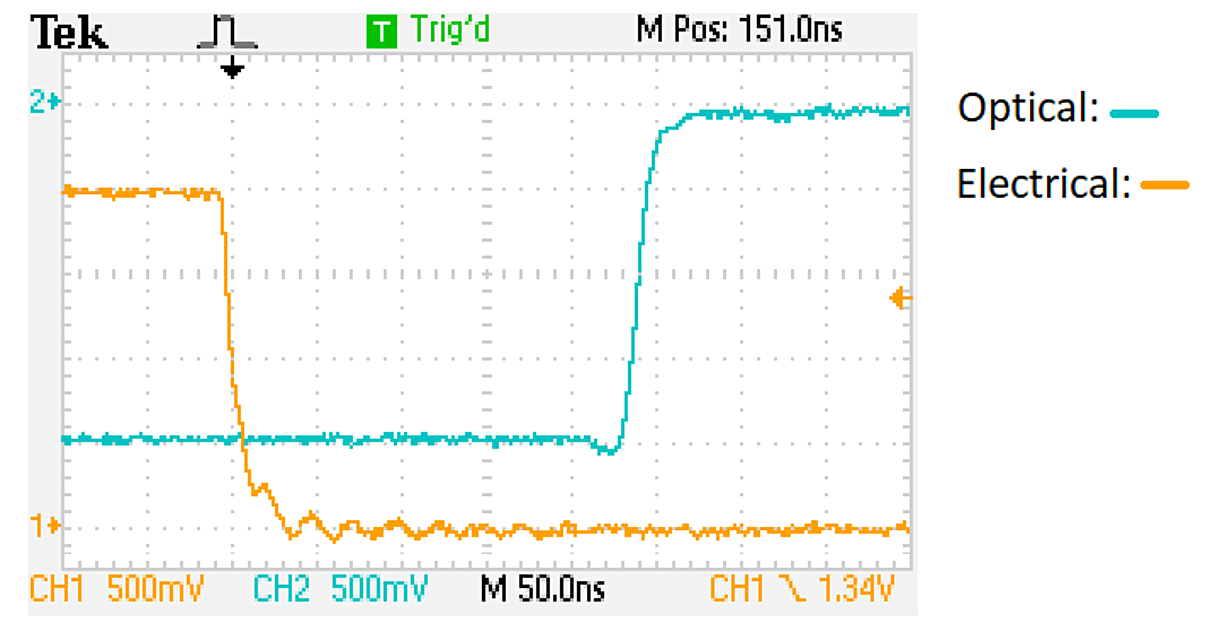

    Typical velocity response measurements




    Bandwidth measurement





    Optical drive path

    Optical Path

    TTL Signal

    Port1→Port2

    L (＜0.8V)

    Port1 → Port3

    H (＞3.8V)



    Drive selection

    Max. repetition frequency

    Part Number (P/N)

    100kHz

    SWDR-11a261111

    500kHz

    SWDR-11a291111



    Model and ordering

    □□□□

    12

    □

    1

    □

    □

    □

    □

    □


    Type

    Wavelength

    Configuration

    Package

    Fiber Type

    Fiber Cover

    Fiber Length

    Connector

    NSSW =Normal power

    NHSW=2W

    NHHW=5W

    1X2=12

    1060nm=1

    L Band=2

    1310nm=3

    1410nm=4

    1550nm=5

    Species =0

    Single stage=1

    Standard=1

    Special=0

    SMF-28=1

    HI1060=2

    PM1550/250=5

    Special=0



    Bare fiber=1

    900um tube=3

    Special=0



    0.25m=1

    0.5m=2

    1.0m=3

    Special=0



    None=1

    FC/PC=2

    FC/APC= 3

    SC/PC=4

    SC/APC=5

    ST/PC=6

    LC/PC=7

    Duplex LC=8

    LC/APC=9

    Special=0



    可选配置表
