1540-1560nm PM Polarization Maintaining Bandpass Filter

PM Band Pass Filter Idealphotonics' fiber filters use a special fiber structure to select or filter out specific wavelengths of light from different wavelengths. We can provide filter devices with different optical power versions according to user needs, which can be used in dense wavelength division multiplexing fiber communications, frequency division multiplexing fiber communications, spectrum testing, fiber sensors, fiber lasers and fiber amplifiers. If you need to customize the center wavelength, operating temperature or specific working bandwidth, please contact us for customization.

Product features：High isolation 、Low insertion loss (0.7dB) 、High return loss (50dB) 、Excellent environmental stability 、High power handling capability

Part Number：--

Application area：Band Erbium-Doped Fiber Amplifier 、High -density wavelength division multiplexing system 、Fiber laser 、Research

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

General parameters

Parameter	Unit	Index
Nominal center wavelength	nm	1540-1560
Max. Insertion Loss (over Pass Band for B-Type)	dB	0.7
Max. Insertion Loss (over Pass Band for F-Type)	dB	0.9
Suppression band (Stop Band)	nm	765～785
Min. Stopband Isolation (Stop Band Isolation)	dB	25
extinction ratio at 23℃ (ER) (only for B-Type)	dB	20
extinction ratio at 23℃ (ER) (only for F-Type)	dB	twenty two
Min. Return Loss	dB	50
Fiber Type	-	PM 1550 panda fiber
Max. tensile load	N	5
Max. Optical Power (CW)	mW	300
Operating temperature	℃	-5 to 70
Storage temperature	℃	-40 to +85

Remark:

*The above specifications apply to devices without connectors.

*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

*PM fiber and connector keys are aligned with the slow axis.

*The material must be RoHS compliant.

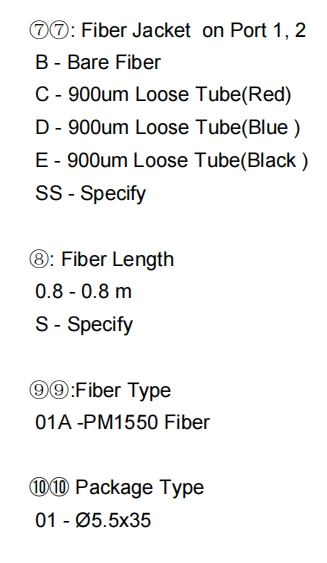

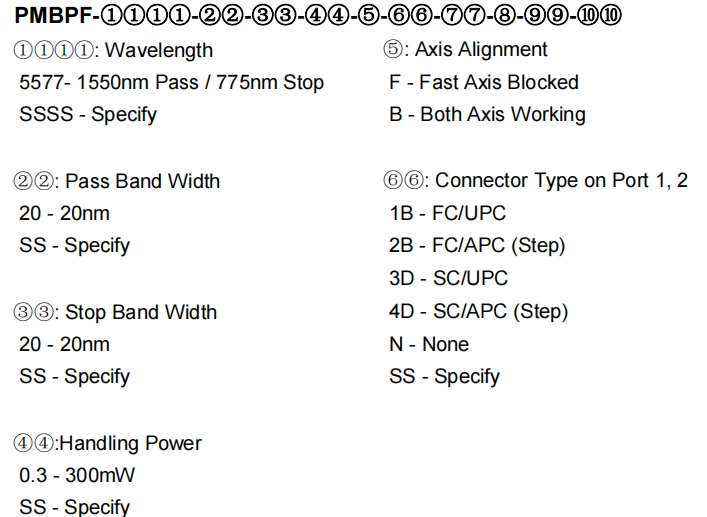

Model Description
