• 100G bandwidth 1545-1555nm 10nm tunable filter (3dB bandwidth 0.8nm)

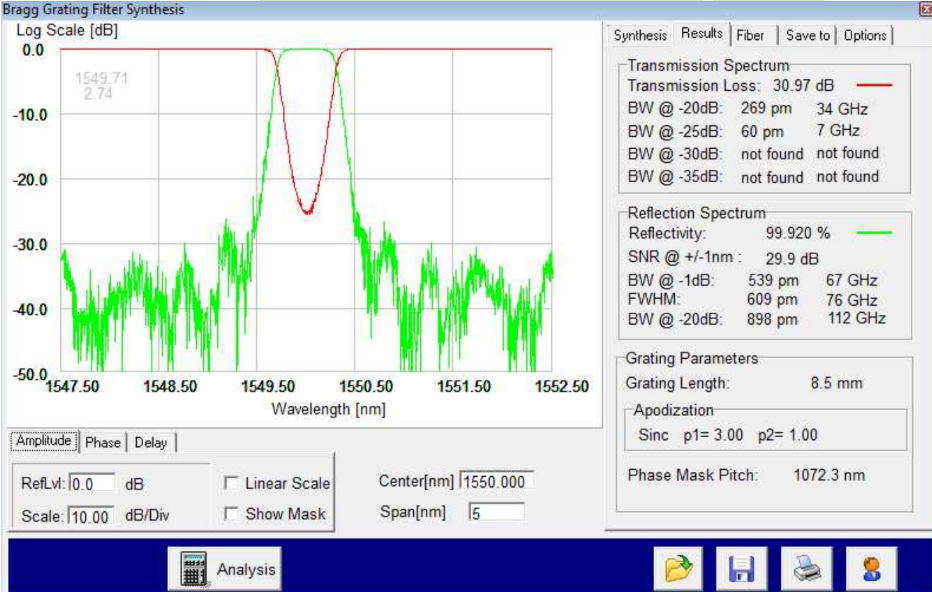

    The core component of the filter is an optical fiber Bragg grating (FBG) with a periodic variation in refractive index. When a broadband light beam is passed through the fiber Bragg grating, each small section of the fiber with the altered refractive index reflects only a specific wavelength of light, called the Bragg wavelength, while other wavelengths of light pass through. The change in strain simultaneously affects the effective refractive index of the fiber Bragg grating and the grating period, allowing for tuning of the reflected wavelength. In this device, the Bragg wavelength can be tuned to the desired wavelength by simply adjusting the grating with a fine-threaded screw.

    产品特点Extremely Narrow Filter Bandwidth: 0.8nm、 Wide Tunable Wavelength Range: 10nm、 Ultra-High Signal-to-Noise Ratio: Up to 100dB、 Excellent Filter Response、 Ultra-Low Insertion Loss、 Customizable Based on Customer Requirements

    产品货号A80152675

    应用领域Optical Signal Selection and Filtering、 Background Noise Suppression、 Tunable Lasers and Other Applications

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话:16628709332

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • General Parameters

    Model Parameters




    Optional Wavelengths

    1545nm-1555nm

    Tuning Range

    SMF28e  :  10nm ;PM Fiber :  5nm

    3dB Bandwidth

    3dB bandwidth:0.8nm(1545-1555nm)

    Fiber Connector

    FC/APC  or  FC/PC  ;  SC/APC  or  SC/PC  or  patch  cord

    Operating Temperature

    0-45℃

    Packaging Dimensions

    H  :  48mm; L  :   125mm  +   10mm(Connectors); W  :  105mm

    Weight

    450g

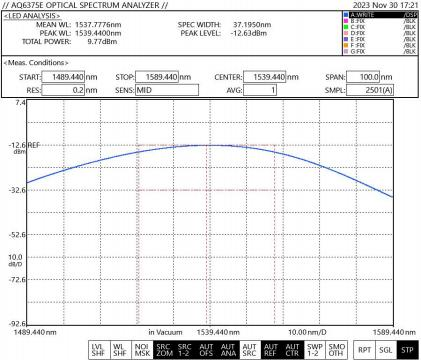

    Test Light Source Spectrum

    PN LP-SLD-1550-B-15-40-SM

    SN LP00005

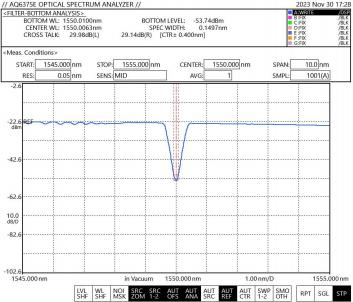

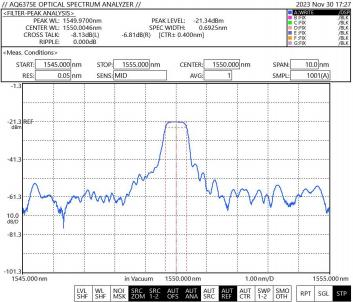

    Measured Spectrum





    Ordering information:

    Optional wavelengths

    1305nm-1315nm

    1535nm-1545nm

    1545nm-1555nm

    1555nm-1565nm
