    • 6.83um High power benchtop FP-QCL mid-infrared Quantum Cascade Laser 20mW (TDLAS integrated control module)

    The 6.83um high-power desktop FP-QCL quantum cascade laser is a continuous light laser developed by us. It has a relatively high output optical power and a collimated output power of several hundred milliwatts, which can meet the light source conditions for mid-infrared testing. In addition, the desktop FP-QCL laser module integrates a driver and temperature control module, and can also use software to control the temperature and operating current of the tuned laser, which can make the laser work stably and maintain the accuracy of the measured values.

    产品特点Low power consumption, high power、 High side mode suppression ratio、 Intelligent software control、 Small structure

    产品货号A80060083

    应用领域Mid-infrared test light source、 Mid-infrared device analysis、 Mid-infrared system light source

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Technical Parameters:

    Parameters

    Unit

    Technical Parameters

    Min

    Typ

    Max

    6.83umFP-QCL

    Collimated laser output power

    mW

    10

    20


    Peak operating wavelength

    um


    6.83


    Spectral width (FWHM)

    nm


    3


    Output side mode suppression ratio (SMSR)

    dB

    30



    Output isolation

    dB


    30


    Wavelength temperature coefficient

    nm/℃


    0.6


    Wavelength current coefficient

    nm/mA


    0.2


    Output power stability (8 hours)

    %


    ±1

    ±4

    Output power adjustable range

    %

    0


    100

    TEC operating range

    ℃

    0


    50

    Operating voltage

    VAC

    100

    220

    240

    Operating temperature

    ℃

    0


    55

    Storage temperature

    ℃

    -20


    65

    Specifications and dimensions

    mm

    343(L)×193(W)×180(H) Benchtop


    Technical indicators:

    1. Output power is optional;

    2. Peak operating wavelength is optional;

    3. Output power stability test condition is 25 degrees, after 30 minutes of preheating;

    4. Maximum power consumption refers to the overall power consumption under extreme working conditions.

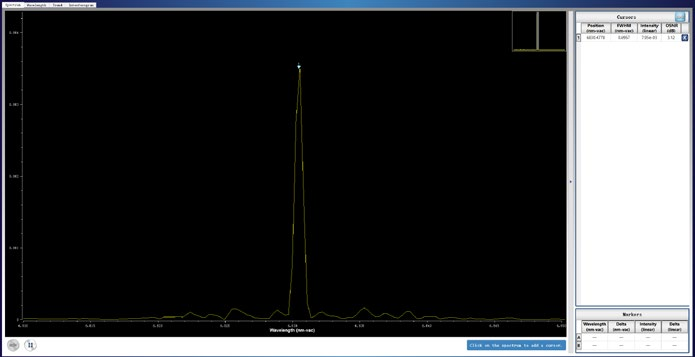

    1. Spectrum（15℃、280mA）:

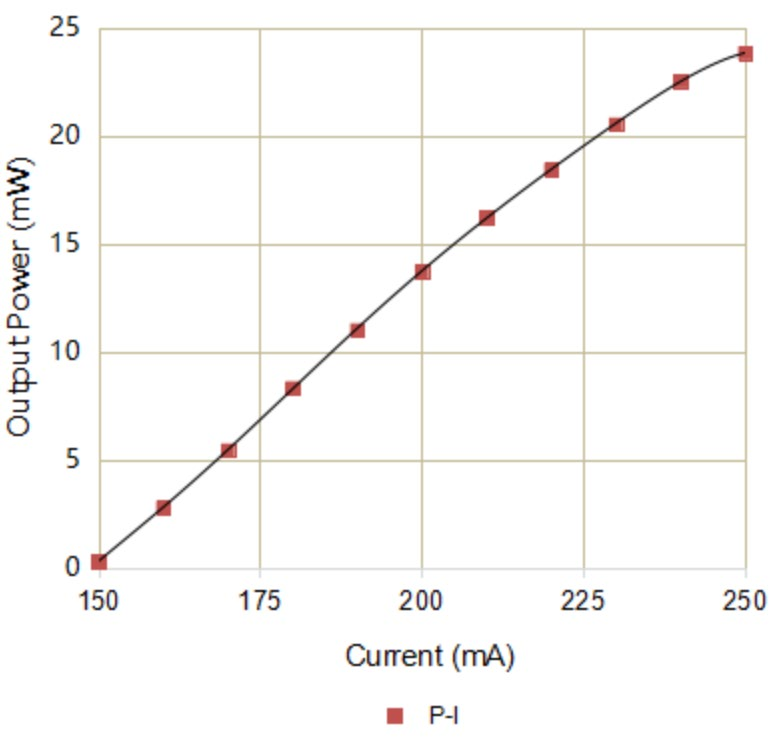

    2. Power curve (5℃):

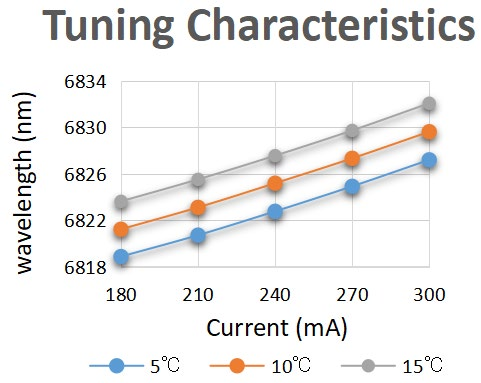

    3. Wavelength temperature current tuning curve:








    Order Info:

    MIR-QCL- W□□□□ -☆-△-XX

    W□□□□：Wavelength

    4000:4000nm

    4600:4600nm

    6300:6300nm

    6830:6830nm

    9000:9000nm

    ☆ ：Collimated output

    1：with

    0: without

    △：Laser Type

    FP:QCL-FP

    DFB:QCL-DFB

    XX: Output Power

    001=1mw

    020=20mw

    250=250mw

    400=400mw

    1000=1000mw
