The 6.83um high-power desktop FP-QCL quantum cascade laser is a continuous light laser developed by us. It has a relatively high output optical power and a collimated output power of several hundred milliwatts, which can meet the light source conditions for mid-infrared testing. In addition, the desktop FP-QCL laser module integrates a driver and temperature control module, and can also use software to control the temperature and operating current of the tuned laser, which can make the laser work stably and maintain the accuracy of the measured values.
产品特点Low power consumption, high power、 High side mode suppression ratio、 Intelligent software control、 Small structure
产品货号A80060084
应用领域Mid-infrared test light source、 Mid-infrared device analysis、 Mid-infrared system light source
产品单价联系客服询价
到货日期请咨询客服获得货期
产品库存请咨询客服
Daisy
电话:18602170419
邮箱:moli@microphotons.com
相关产品
Technical Parameters:
Parameters | Unit | Technical Parameters | ||
Min | Typ | Max | ||
6.83umFP-QCL | ||||
Collimated laser output power | mW | 10 | 20 | |
Peak operating wavelength | um | 6.83 | ||
Spectral width (FWHM) | nm | 3 | ||
Output side mode suppression ratio (SMSR) | dB | 30 | ||
Output isolation | dB | 30 | ||
Wavelength temperature coefficient | nm/℃ | 0.6 | ||
Wavelength current coefficient | nm/mA | 0.2 | ||
Output power stability (8 hours) | % | ±1 | ±4 | |
Output power adjustable range | % | 0 | 100 | |
TEC operating range | ℃ | 0 | 50 | |
Operating voltage | VAC | 100 | 220 | 240 |
Operating temperature | ℃ | 0 | 55 | |
Storage temperature | ℃ | -20 | 65 | |
Specifications and dimensions | mm | 343(L)×193(W)×180(H) Benchtop |
Technical indicators:
1. Output power is optional;
2. Peak operating wavelength is optional;
3. Output power stability test condition is 25 degrees, after 30 minutes of preheating;
4. Maximum power consumption refers to the overall power consumption under extreme working conditions.

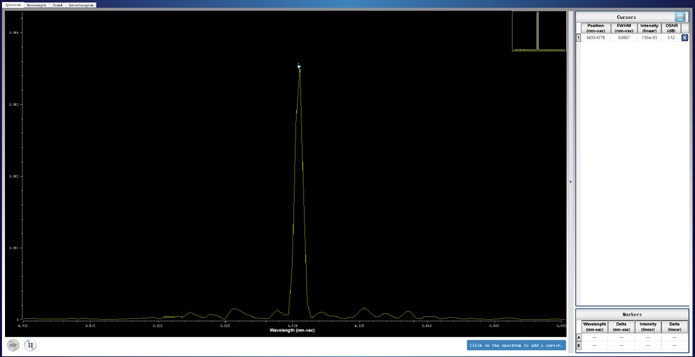

1. Spectrum(15℃、280mA):

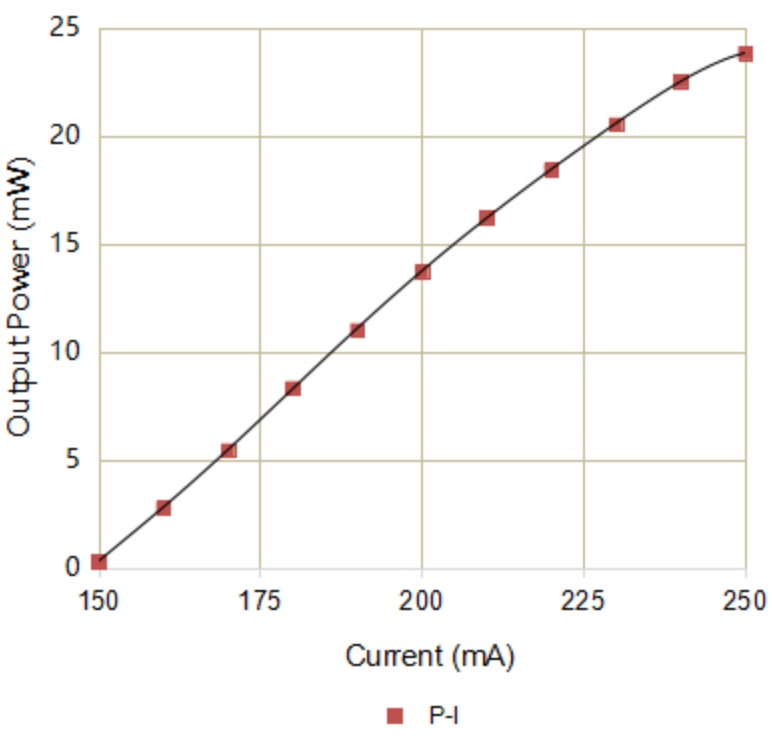

2. Power curve (5℃):

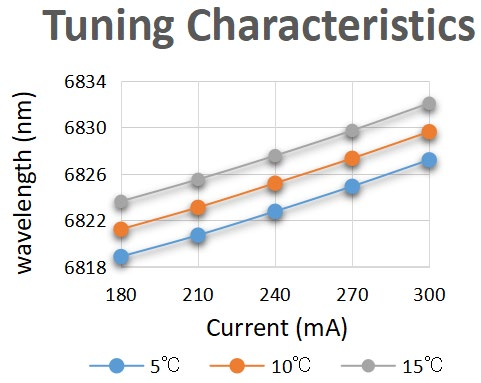

3. Wavelength temperature current tuning curve:
Order Info:
MIR-QCL- W□□□□ -☆-△-XX
W□□□□:Wavelength
4000:4000nm
4600:4600nm
6300:6300nm
6830:6830nm
9000:9000nm
☆ :Collimated output
1:with
0: without
△:Laser Type
FP:QCL-FP
DFB:QCL-DFB
XX: Output Power
001=1mw
020=20mw
250=250mw
400=400mw
1000=1000mw
