1.0~2.6 um extended InGaAs photodiode

1.0~2.6 um extended InGaAs photodiode

Product features：Positive irradiation structure、 High sensitivity、 Fast response time、 TO46 package

Part Number：--

Application area：Spectral detection and analysis、 Gas analysis、 Water content analysis

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Parameters

Characteristic parameters	Typical values
Photosensitive surface diameter	Φ 0.3 mm
Scale	unit
Operating temperature	-20～ +60 ℃
Storage temperature	-55~ +70 ℃
Band	1.0~2.6 um
Peak wavelength	2.2 um
Peak quantum efficiency	≥70%
Peak response rate	≥1.2 A/W
Device impedance	2×10⁴Ω
Dark current	5×10^-7@-0.01V
Equivalent noise power	4×10^-13W/Hz^1/2
Peak detection rate	7×10¹⁰cm Hz^1/2/W
Packaging type	TO-46 package

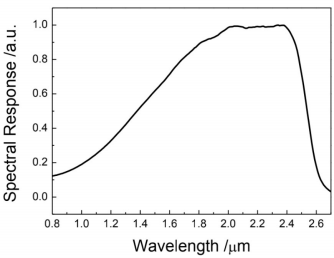

Typical spectral response curve

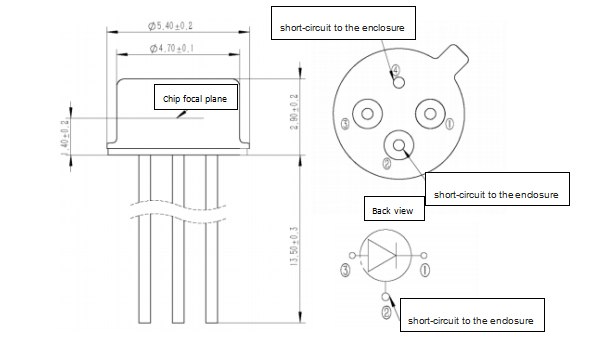

Product structure and size


Notes:

(1) Anti-static protection is required during product use, and operators should wear anti-static wrist straps.

(2) During storage and transportation, the product should be placed in anti-static foam and stored in an anti-static box.

(3) Do not use excessive force when plugging and unplugging pins, and do not bend the pins more than 45° along the root to prevent bending from causing cracks in the glass beads.
