  • 915nm high power desktop single mode pumped FBG wavelength stable light source

    Our modular laser control is based on an advanced microprocessor control system, combined with high-precision ATC and ACC (APC) control circuits to achieve high stability of laser output, while ensuring that the light source is quick and intuitive to operate. We can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control. This light source uses a one-key recovery function (Run/Stop button), which can effectively help customers return to the previous working state. This is a highly integrated modular system light source, which uses PC-side software intelligent control. Customers can set the required working temperature and current according to their needs. It is very suitable for experimental scientific research and production testing. In addition, we need to modulate the laser for some application fields. We have connected two modulation ports, one for high frequency and one for low frequency, to better meet customers' needs for multiple uses of one machine.

    Product features:Support one-key restore function (no need to restart and preheat)、 Software remote control, intelligent control、 Stable output power, continuously adjustable、 Compact structure、 High-precision ACC and ATC control circuit、 Built-in high and low modulation bandwidth BNC interface

    Part Number:--

    Application area:Laser sensor、 Pump source、 Test and measurement

    Add to Cart Consult Favorite

    Main parameters
  • Core parameters
  • Dimension Drawing
  • General Parameters

    Driver parameters:

    Characteristics

    Min.

    Max.

    Unit

    Note

    Power supply voltage

    100

    230

    VAC

    Mains electricity

    Power

    5

    20

    W


    Laser drive current

    0

    128

    mA

    Patch cord optional



    266

    590

    Laser drive voltage

    0

    3.1

    V

    @250mA

    Response frequency

    0

    15

    MHz

    -3db

    Temperature control range

    0

    5


    TEC output current

    -1.5

    1.5

    A


    TEC output voltage

    -4.4

    +4.4

    V


    Analog input (low frequency)

    -2.5

    2.5

    V


    Analog input (high frequency)

    -2.5

    2.5

    V


    PD monitoring range

    0

    2

    mA





    Laser parameters:

    Parameters

    Unit

    Value

    Laser wavelength

    nm

    910±1

    Power

    mW

    100

    FWHM

    nm

    0.42

    Operating current

    mA

    500

    Threshold current

    mA

    70

    Operating voltage

    v

    1.6

    Thermistor

    Ω

    10000

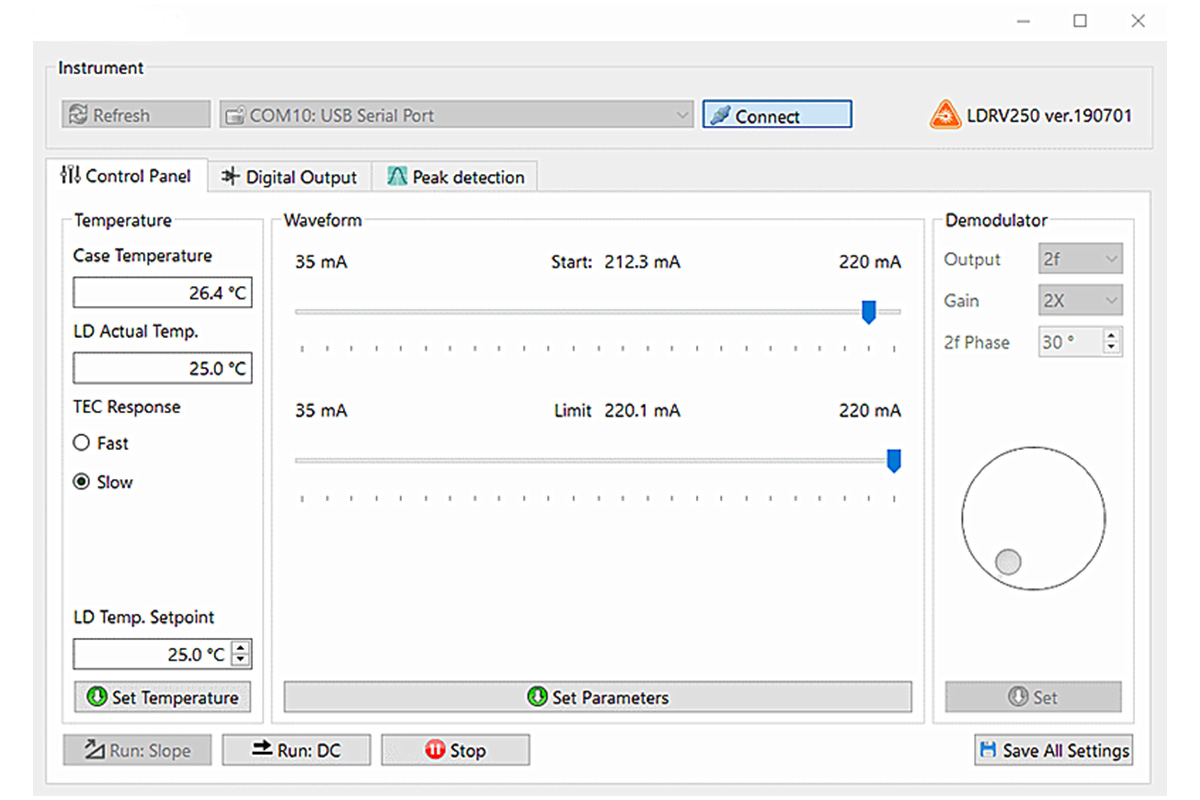

    Control software interface:

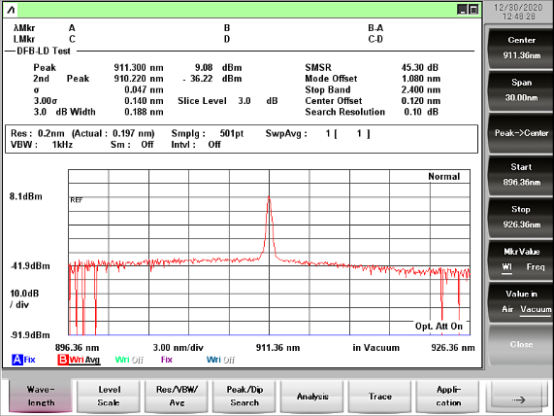

    Spectrum:

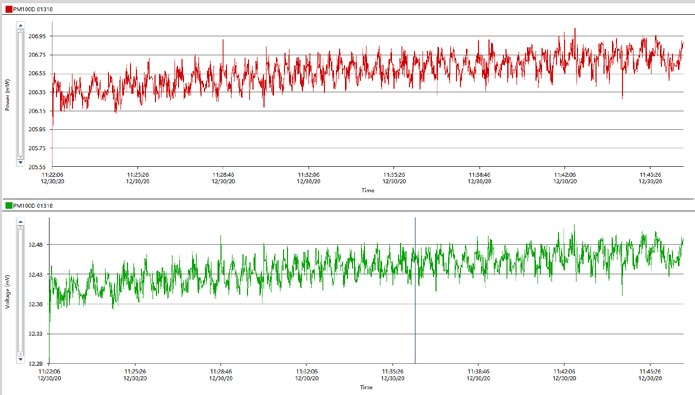

    Power stability curve:







    Order Info:

    LDC-250-M-915-FBG

    Working wavelength:

    910: 910nm

    915: 915nm
