  • 910nm High-Power Desktop Single-Mode Pump FBG Stabilized Wavelength Light Source

    Idealphotonics' modular laser control is based on an advanced microprocessor control system, combined with high-precision ATC and ACC (APC) control circuits, achieving highly stable laser output while ensuring quick and intuitive operation of the light source. We can also provide corresponding communication interfaces and control software based on user requirements to enable computer control. This light source features a one-key recovery function (Run/Stop button), effectively helping users return to their previous working state. This is a highly integrated modular system light source, utilizing PC software for intelligent control, allowing customers to set the desired operating temperature and current according to their needs. It is highly suitable for experimental scientific research and production testing. Additionally, for applications requiring laser modulation, we have included two external modulation ports—one for high frequency and one for low frequency—to better meet customers' needs for a versatile, all-in-one solution.

    Product features:Supports one-key recovery function (no need to restart and preheat) 、Software remote operation, intelligent control 、Stable and continuously adjustable output power 、Compact and small structure 、High-precision ACC and ATC control circuits 、Built-in high- and low-frequency modulation bandwidth BNC interfaces

    Part Number:--

    Application area:Laser sensing 、Pump source 、Test and measurement

    Add to Cart Consult Favorite

    Main parameters
  • Core parameters
  • Dimension Drawing
  • General Parameters

    Driver Parameters

    Features

    Min

    Max.

    Unit

    Notes

    Power Supply Voltage

    100

    230

    VAC

    Mains Electricity

    Power

    5

    20

    W


    Laser Driver Current

    Laser Driver Voltage

    Response Frequency

    0

    128

    mA

    Jumper Options



    266

    590

    Temperature Control Range

    0

    3.1

    V

    @250mA

    TEC Output Current

    0

    15

    MHz

    -3db

    TEC Output Voltage

    0

    5


    Analog Input (Low Frequency)

    -1.5

    1.5

    A


    Analog Input (High Frequency)

    -4.4

    +4.4

    V


    PD Monitoring Range

    -2.5

    2.5

    V


    Features

    -2.5

    2.5

    V


    Power Supply Voltage

    0

    2

    mA




    Laser Parameters

    Parameters

    Unit

    Value

    Laser Wavelength

    nm

    910±1

    Power

    mW

    300

    FWHM (Full Width at Half Maximum)

    nm

    0.42

    Operating Current

    mA

    500

    Threshold Current

    mA

    70

    Operating Voltage

    v

    1.6

    Thermistor

    Ω

    10000

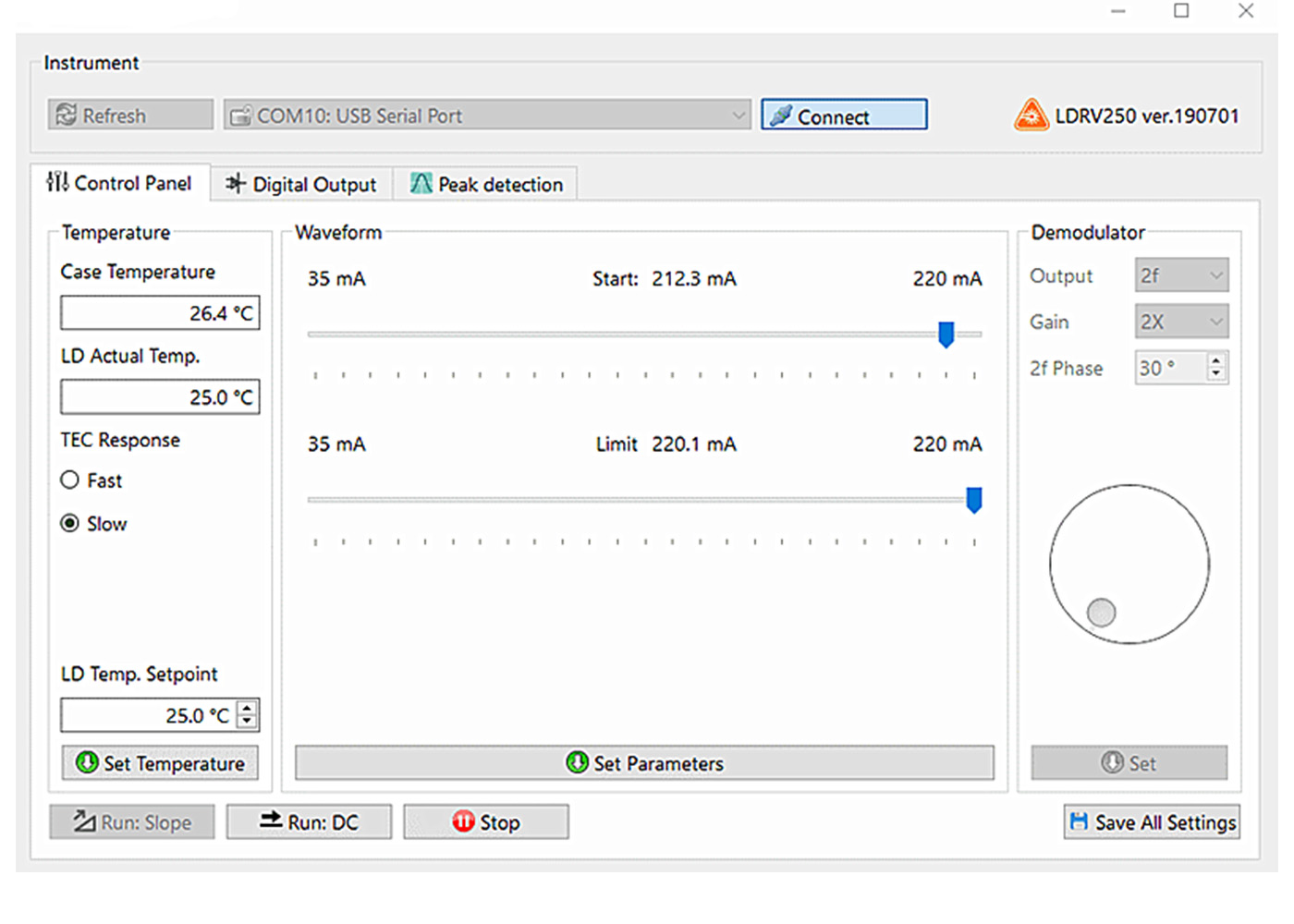

    Control Software Interface

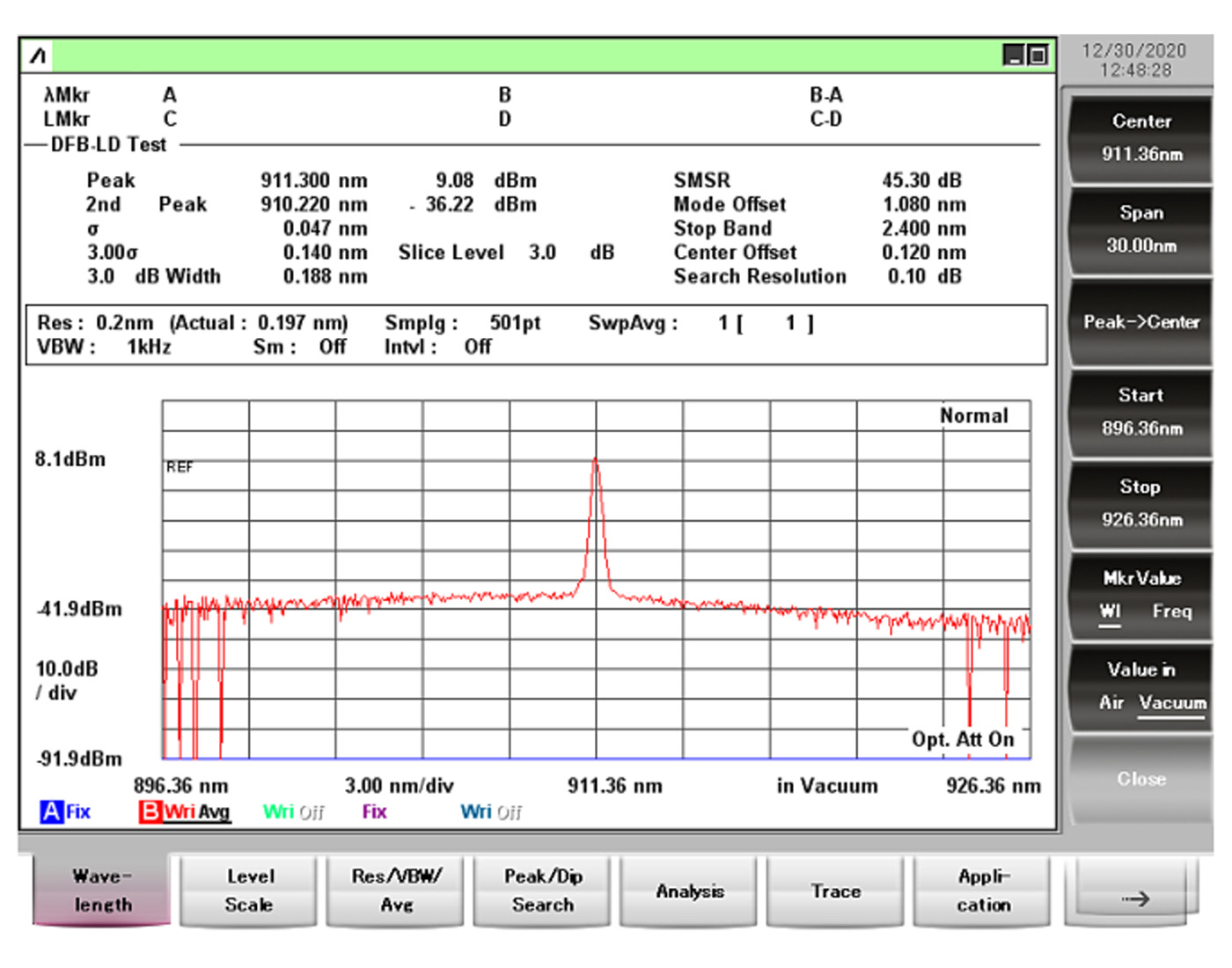

    Spectrum Graph

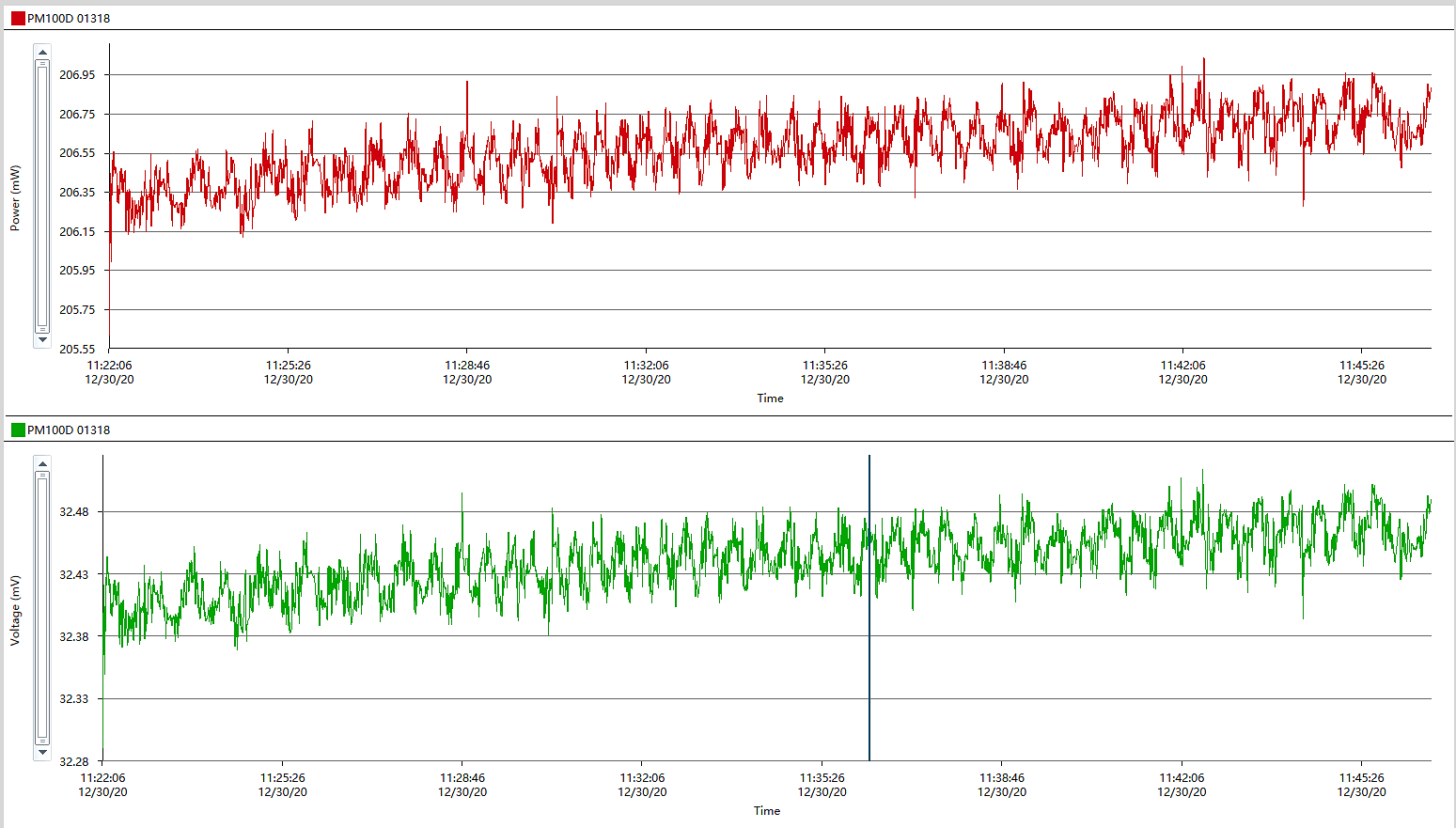

    Power Stability Curve



    Ordering info

    LDC-250-M-910-FBG

    Operating Wavelength:

    910: 910nm 915: 915nm

    Optional Configurations

    --
