首页 Light Sources Coherent Sources Mid infrared laser 3.39um low-power desktop ICL-DFB tunable continuous laser 5mW 3.39um Low-Power Benchtop ICL-DFB Tunable Continuous-Wave Laser (Benchtop Light Source)

    • 3.39um Low-Power Benchtop ICL-DFB Tunable Continuous-Wave Laser (Benchtop Light Source)

    The 3.39um ICL-DFB laser is a tunable continuous-wave laser developed by Idealphotonics. It features a narrow linewidth, high power, and low power consumption, making it ideal for gas sensing applications, particularly for testing hydrocarbons and other related gases. The benchtop ICL-DFB laser module integrates a driver and temperature control module, and it allows software control of the laser's temperature and operating current, ensuring stable operation and maintaining measurement accuracy. Additionally, the laser module includes an FPGA, facilitating the processing of gas concentration measurements.

    产品特点Continuous wave、 Single-mode spectrum、 Tunable light source、 Low power consumption、 High-quality beam、 Narrow linewidth、 Software intelligent control、 Compact size

    产品货号A80070024

    应用领域TDLAS gas system measurement setup、 Mid-infrared system light source、 Mid-infrared device analysis

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Parameter

    Unit

    Specs

    Min.

    Typ.

    Max.

    3.39um  ICL-DFB

    Laser Output Power

    mW

    0.5

    5

    8

    Peak Operating Wavelength

    um


    3.39


    Spectral Width (FWHM)

    MHz


    3


    Side Mode Suppression Ratio (SMSR)

    dB


    20

    30

    Wavelength Tuning Range

    nm

    6

    10

    25

    Wavelength Temperature Coefficient

    nm/℃


    0.32


    Wavelength Current Coefficient

    nm/mA


    0.06


    Output Power Stability (8h)

    %


    ±1

    ±4

    Output Power Adjustable Range

    %

    0


    100

    Operating Current

    mA

    40

    80

    140

    Threshold Current

    mA

    25

    40

    80

    Operating Voltage

    V

    7

    9

    12

    Chip Operating Temperature

    ℃

    -20

    10

    40

    Storage Temperature

    ℃

    15

    20

    65

    Dimensions

    mm

    340(L)×240(W)×100(H)

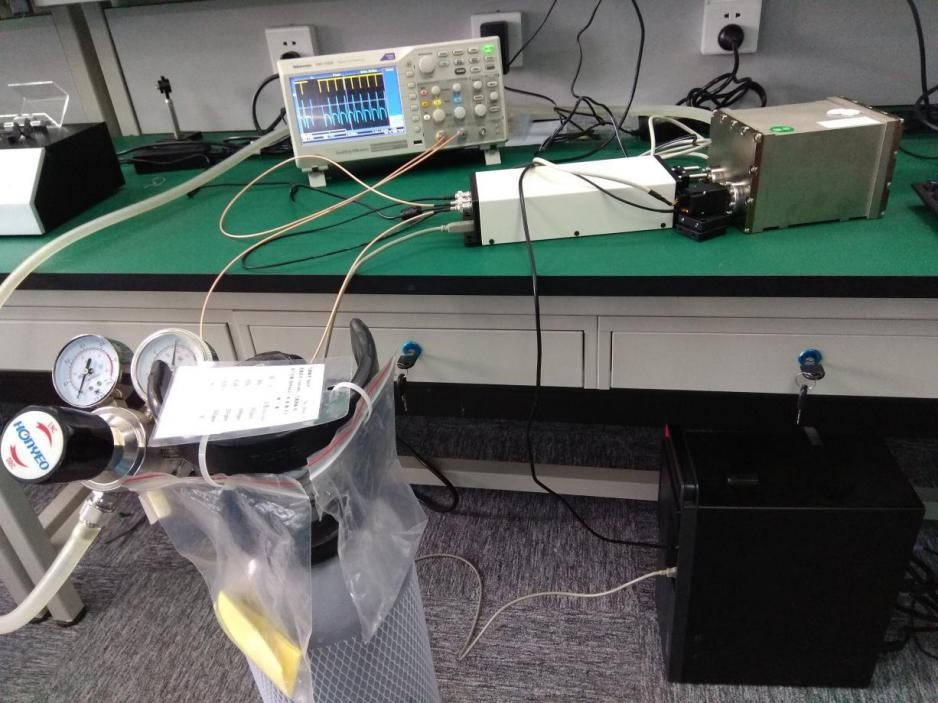

    System Setup Diagram

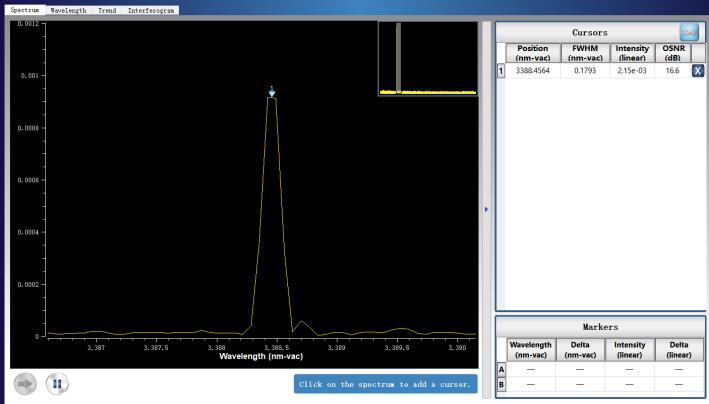

    Spectral Diagram (15℃, 80mA)

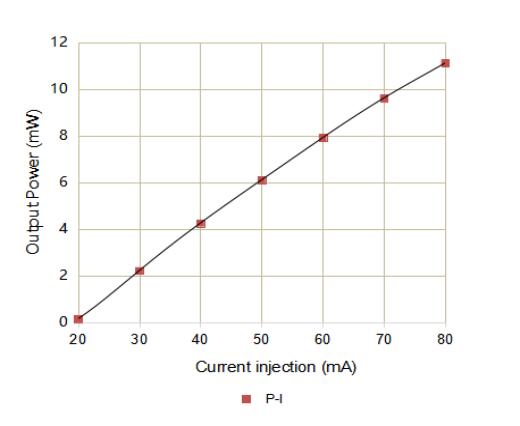

    Power Curve (15℃)




    Wavelength Tuning Curve

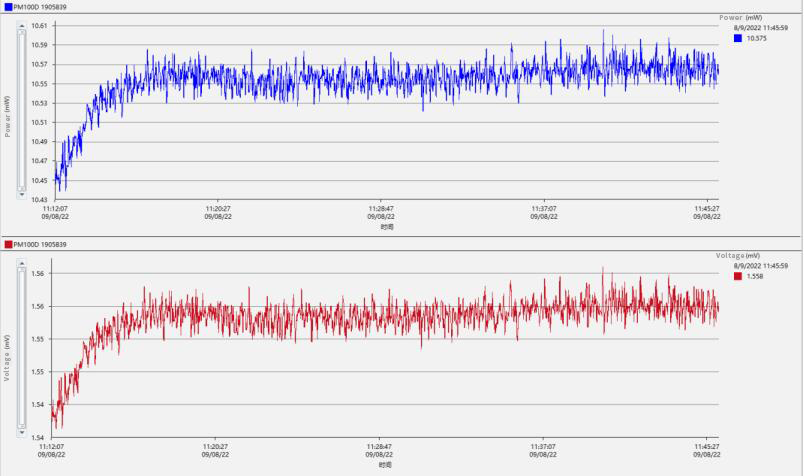

    Power Stability (15°C, 80mA)

    1.5 (2).png

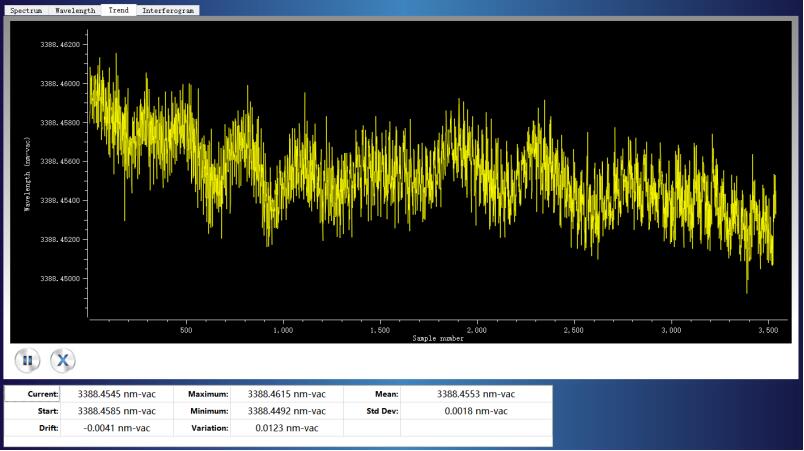

    Wavelength Stability (15°C, 80mA)

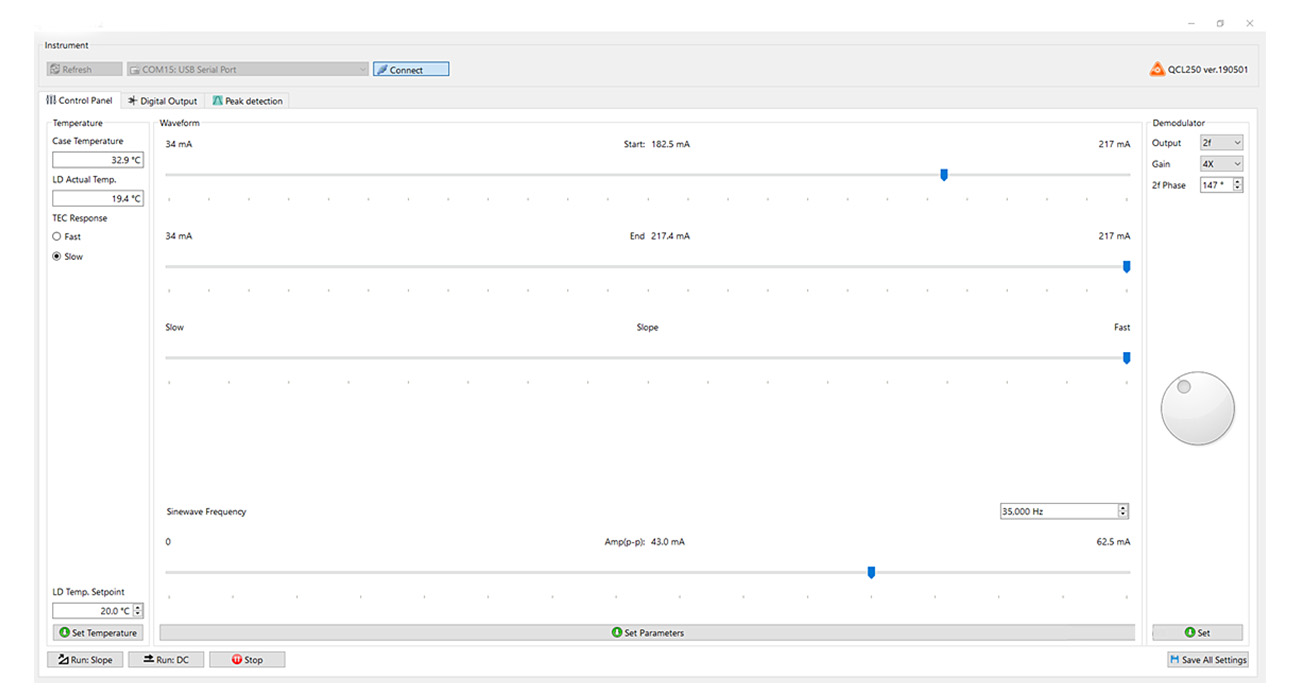

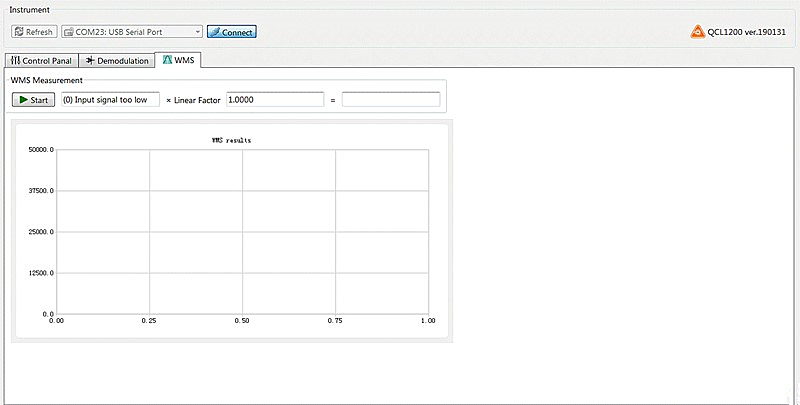

    Control Software

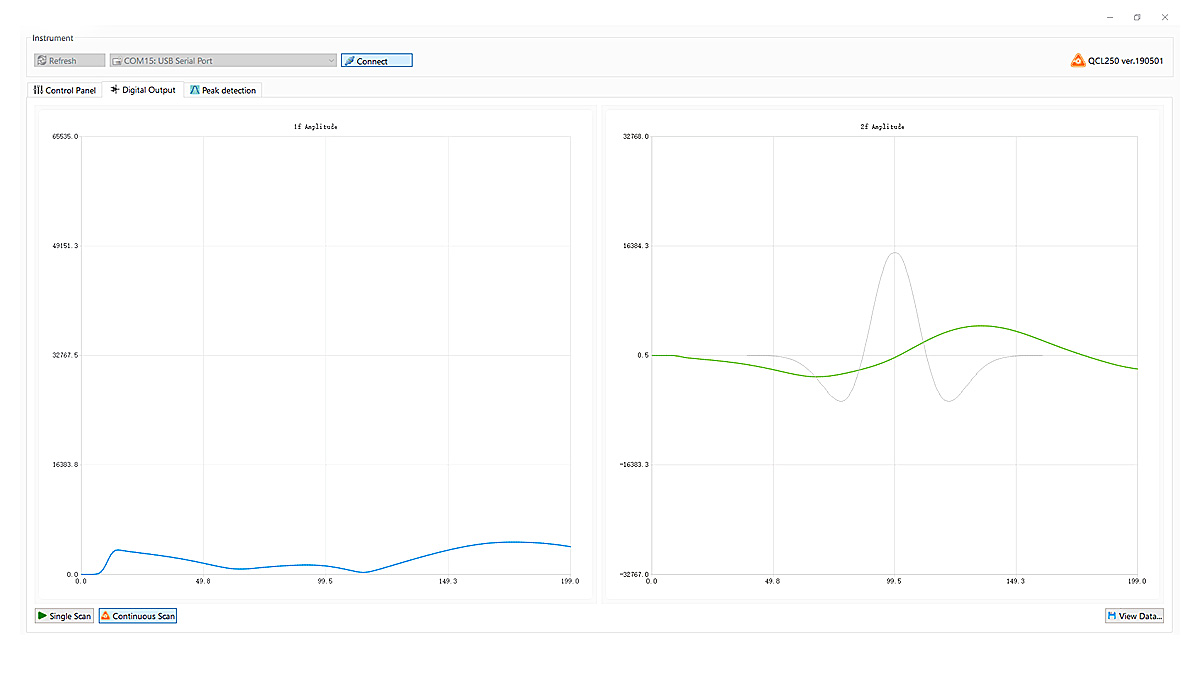

    2F Signal Acquisition Interface






    Algorithm Calibration Interface

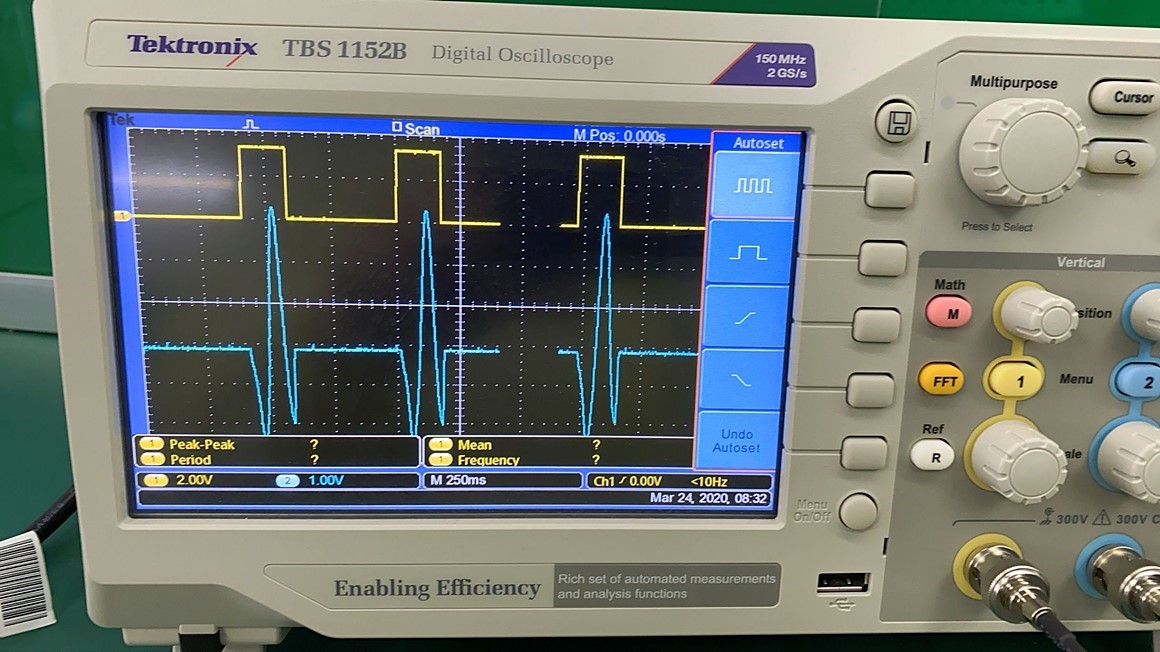

    Modulation Signal Linearity Test (Oscilloscope Voltage Signal Effect Diagram)






    Ordering info

    MIR-ICL-W3390-3-DFB-05

    Central Wavelength：3390:3.39um

    Bandwidth：3：3MHz

    Output Power：05:5mW
