首页 PhotoDetectors Balanced photodetector InGaAs balanced photodetector Indium gallium arsenide InGaAs ultra-low noise balanced detector UBD-A 800-1700nm InGaAs Ultra-Low Noise Balanced Detector UBD-300M-A

    • InGaAs Ultra-Low Noise Balanced Detector UBD-300M-A

    The UBD series ultra-low noise balanced detection modules are upgraded products based on the previous MBD series. Compared to the original MBD series, the background noise is significantly reduced under the same conditions. With the same bandwidth and gain, the background noise of the UBD series is approximately one-third of that of the MBD series modules, resulting in higher sensitivity and better signal-to-noise ratio.

    产品特点Ultra-low noise、 High Gain、 High bandwidth、 Compact structure、 Built-in low-noise isolation power supply

    产品货号E80040207

    应用领域Distributed fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement、 Pulsed light detection

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    PN#

    UBD-100M-A

    UBD-200M-A

    UBD-300M-A

    UBD-400M-A

    UBD-500M-A

    UBD-800M-A

    UBD-1G-A

    UBD-1.2G-A

    UBD-1.5G-A

    UBD-2G-A

    UBD-2.5G-A

    Unit

    Detector type

    InGaAs


    Wavelength

    800~1700

    nm

    Bandwidth

    100M

    200M

    300M

    400M

    500M

    800M

    1G

    1.2G

    1.5G

    2G

    2.5G

    Hz

    Detector responsivity

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    A/W@1550nm

    Transimpedance gain

    30K

    30K

    30K

    20K

    10K

    30K

    30K

    30K

    30K

    30K

    30K

    V/W

    Maximum input optical power

    140

    140

    140

    210

    420

    140

    140

    140

    140

    140

    140

    μW

    NEP

    2.5

    2.5

    2.5

    2.9

    3.1

    3.1

    3.1

    3.1

    3.1

    3.1

    3.1

    pW/Sqrt(Hz)

    Common mode rejection ratio

    >30

    >30

    >30

    >30

    >30

    >30

    >30

    >30

    >30

    >30

    >30

    dB

    Output impedance

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    Ω

    Output coupling mode

    DC/AC

    DC/AC

    DC/AC

    DC/AC

    DC

    AC

    AC

    AC

    AC

    AC

    AC


    Supply voltage

    5

    5

    5

    5

    5

    12

    12

    12

    12

    12

    12

    V

    Supply current

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    A

    Optical input

    FC/APC（Free space optional）


    RF output

    SMA


    Dimensions

    80*90*25

    mm




    Test result


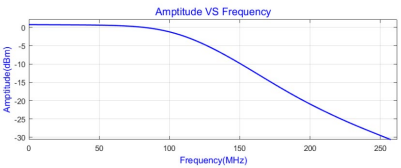

    300 MHz bandwidth response curve

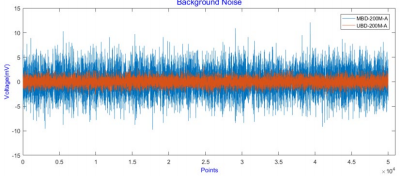

    Comparison of the baseline noise between ultra-low noise balanced detectors and conventional balanced detectors
