InGaAs Ultra Low Noise Balanced Photo Detector UBD-800M-A

InGaAs Ultra Low Noise Balanced Photo Detector UBD-800M-A

The UBD series ultra-low noise balance photo detection module is an upgraded product based on the original MBD series. Compared with the original MBD series under the same parameters, its background noise is significantly reduced. Under the same bandwidth and gain conditions, its background noise is about one-third of the MBD series module, so it has higher sensitivity and higher signal-to-noise ratio.

Product features：Ultra-low noise、 High gain、 High bandwidth、 Compact structure、 Built-in low-noise isolated power supply

Part Number：--

Application area：Distributed fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement、 Level optical pulse detection

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Parameter

PN#

UBD-100M-A

UBD-200M-A

UBD-300M-A

UBD-400M-A

UBD-500M-A

UBD-800M-A

UBD-1G-A

UBD-1.2G-A

UBD-1.5G-A

UBD-2G-A

UBD-2.5G-A

Unit

Detector type

InGaAs

Wavelength

800~1700

Bandwidth

100M

200M

300M

400M

500M

800M

1.2G

1.5G

2.5G

Detector responsivity

0.95

A/W@1550nm

Transimpedance gain

30K

20K

10K

30K

V/W

Maximum input optical power

140

210

420

140

μW

NEP

2.5

2.9

3.1

pW/Sqrt(Hz)

Common mode rejection ratio

>30

Output impedance

Output coupling mode

DC/AC

Supply voltage

Supply current

0.5(max)

Optical input

FC/APC（Free space optional）

RF output

SMA

Dimensions

80*90*25

Test result

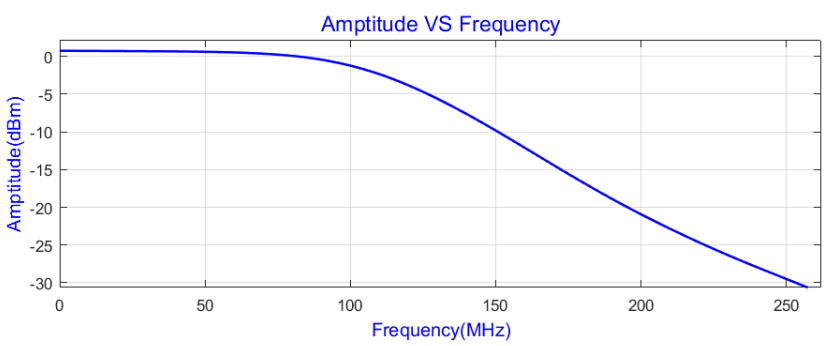

300 MHz bandwidth response curve

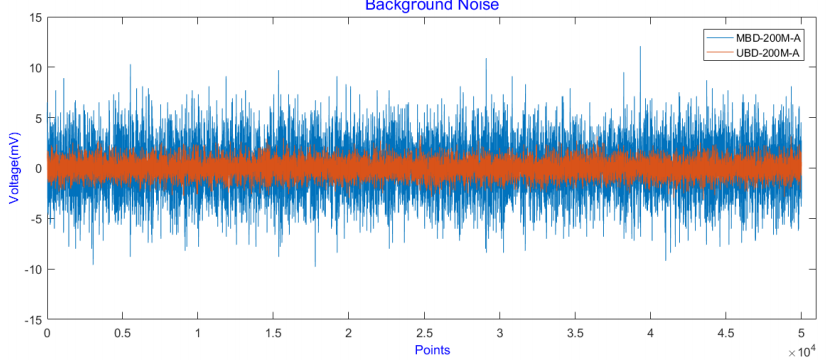

Comparison of the baseline noise between ultra-low noise balanced detectors and conventional balanced detectors
