2GHz Low Noise OCT Balance Photodetector

Product features：Low noise、 High bandwidth、 High gain、 Compact structure

Part Number：--

Application area：Distributed fiber optic sensing (ψ-OTDR/ C-OTDR, DAS/DVS, BOTDA/ BOTDR)、 Laser wind measurement radar、 Optical coherence tomography、 Spectral measurement / ns-level optical pulse detection

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Working wavelength bandwidth optical power

Dimension Drawing

General Parameters

Parameters

PN#	SBD-2G-A	Unit
Detector type	InGaAs	Unit
Wavelength	1300±150	nm
Bandwidth	2G	Hz
Detector responsivity	0.91@ 1300nm	A/W
Transimpedance gain	15K	V/A
Saturation input optical power	280	uW
NEP (Noise Equivalent Power)	9（ Typical）	pW/Sqrt( Hz)
Output impedance	50	Ω
Common mode rejection ratio	>30	dB
Output coupling method	AC
Supply voltage	12	V
Supply current	0.3 (max)	A
Optical input	FC/APC
RF output	SMA
Dimensions	4535 11.5	mm

Instructions for Use

1.The module's supply voltage is 12V, with a maximum supply current of 0.3A.

2.Input+ and Input- are the optical input interfaces; RF is the RF output interface.

3.Before connecting to the input end, ensure the end face is clean to prevent contamination from affecting measurement results.

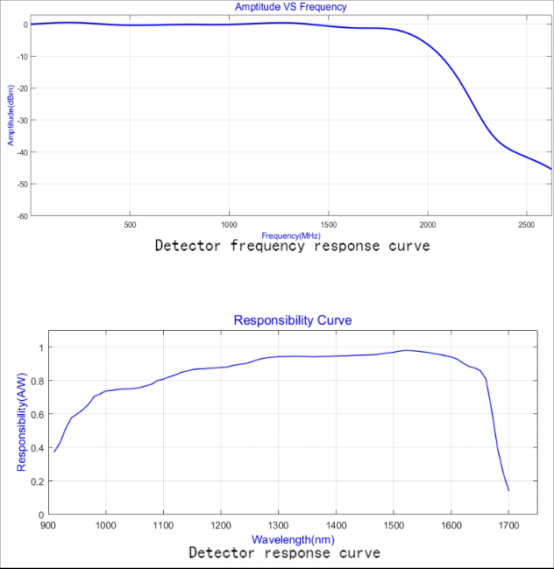

Test result

Optional Configurations

Downloads

1300±150nm OCT photonic balanced detecto.pdf
