首页 Light Sources Coherent Sources Mid infrared laser QCL9060-9.06um low-power desktop DFB-QCL mid infrared quantum cascade laser 20mW 9.06um low power bench top DFB-QCL mid-infrared quantum cascade laser 20mW (benchtop light source)

    • 9.06um low power bench top DFB-QCL mid-infrared quantum cascade laser 20mW (benchtop light source)

    QCL9060-9.06um Low Power Benchtop DFB-QCL Mid-Infrared Quantum Cascade Laser is an industry-leading ultra-low power QCL-DFB laser developed by Idealphotonics in the first half of 2018. With a tunable range of over 100nm and an output power greater than 20mW, it meets the industrial demands of customers in gas sensing and other applications. Our laser features collimated output with stable power, high temperature and wavelength stability, which is significantly superior to traditional high-power quantum cascade lasers in terms of stability. It provides an excellent test light source for our mid-infrared testing customers.

    产品特点Low power, high power、 Narrow linewidth、 Compact structure、 Software intelligent control、 Built-in FPGA

    产品货号A80060066

    应用领域TDLAS NH3 high-precision trace analysis、 Mid-infrared test light source、 Mid-infrared device analysis

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Parameter

    Unit

    Specs



    Min.

    Typ.

    Max.

    PN#


    QCL9060

    Output power

    mW

    20

    -

    40

    Peak operating wavelength

    um

    9.0

    9.06

    9.16

    Spectral width (FWHM)

    MHZ

    -

    3

    -

    Side-mode suppression ratio (SMSR)

    dB

    20

    -

    -

    Output isolation

    dB

    -

    30

    -

    Wavelength temperature coefficient

    nm/℃


    0.6


    Wavelength current coefficient

    nm/mA


    0.2


    Output power stability (15 minutes)

    %

    -

    ±0.5

    ±1.0

    Output power stability (8 hours)

    %

    -

    ±1.0

    ±2.0

    Output power adjustable range

    %

    0

    -

    100

    Output power adjustment mode


    Software control

    TEC stability

    ℃

    -

    ±0.1

    ±0.2

    TEC working range

    ℃

    0

    30

    50

    Operating voltage

    VAC

    100

    220

    240

    Power consumption

    W

    -

    -

    2

    Operating temperature

    ℃

    0

    -

    55

    Storage temperature

    ℃

    -20

    -

    65

    Dimensions

    mm

    290(L)×108(W)×68(H)mm benchtop

    Technical Specifications:

    1.Output power is selectable.

    2.Peak operating wavelength is selectable.

    3.Output power stability test conditions are at 25°C, after a 30-minute warm-up.

    4.Maximum power consumption refers to the overall power consumption under extreme operating conditions.

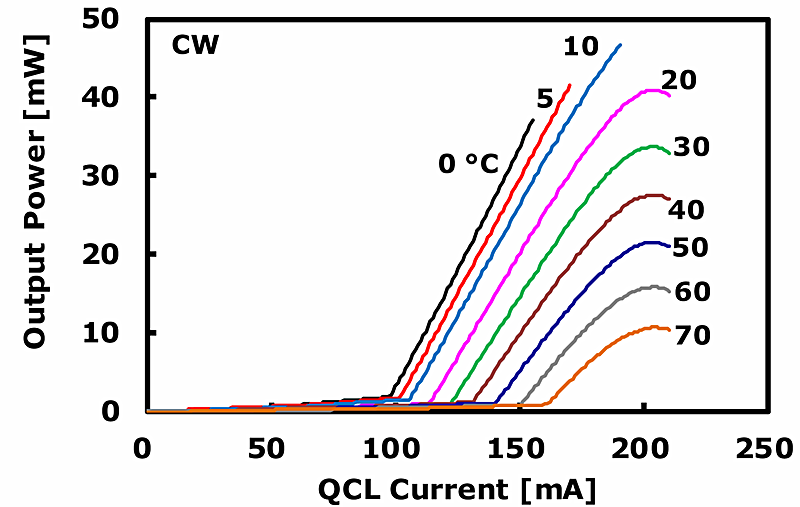

    QCL Laser Characteristic Curve (Example with 4.6um Typ. ) Output Power Characteristic Curve

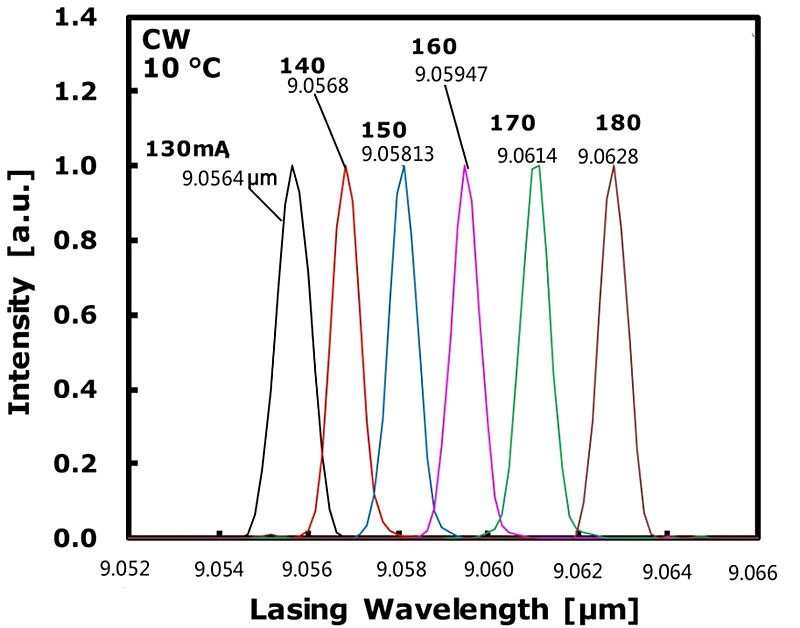

    Laser Spectrum (Continuous) for a Laser Operating at 10°C

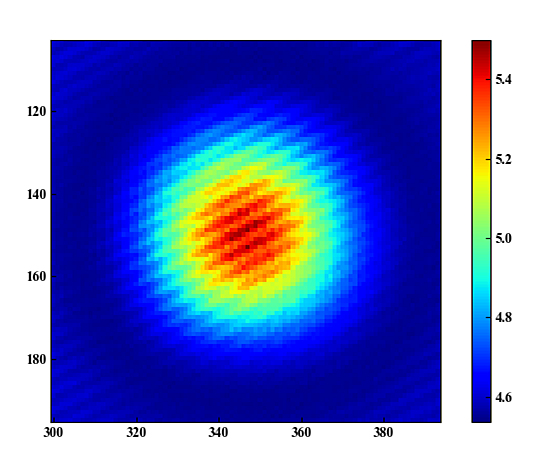

    Quantum Cascade Laser Output Spot

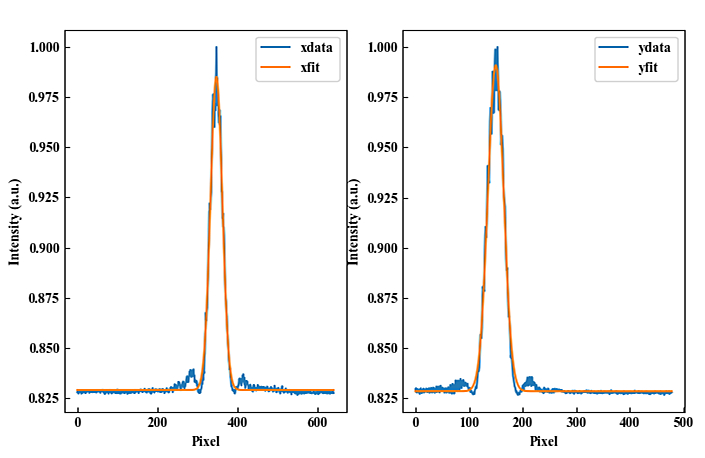

    Test Camera Pixel size = 5 μm, Gaussian fit spot diameter = 320 μm

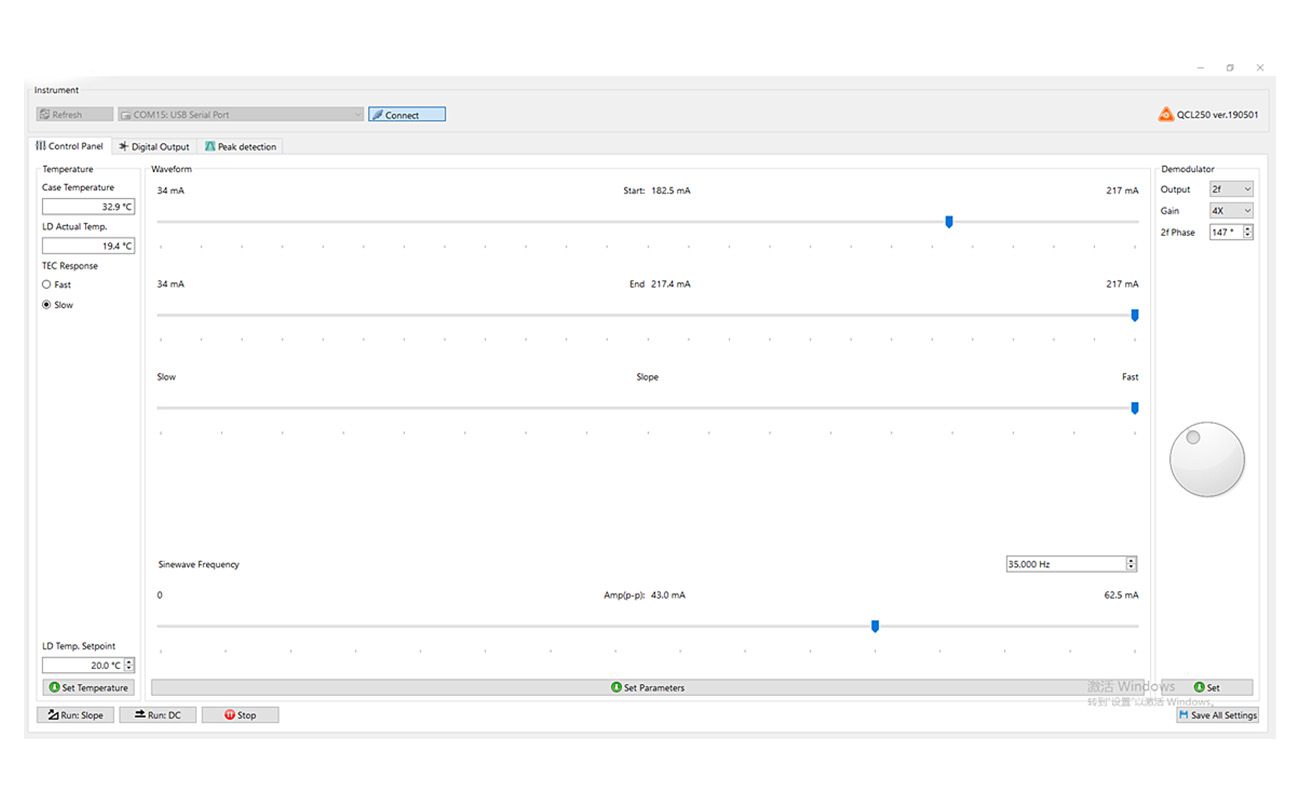

    Control Software

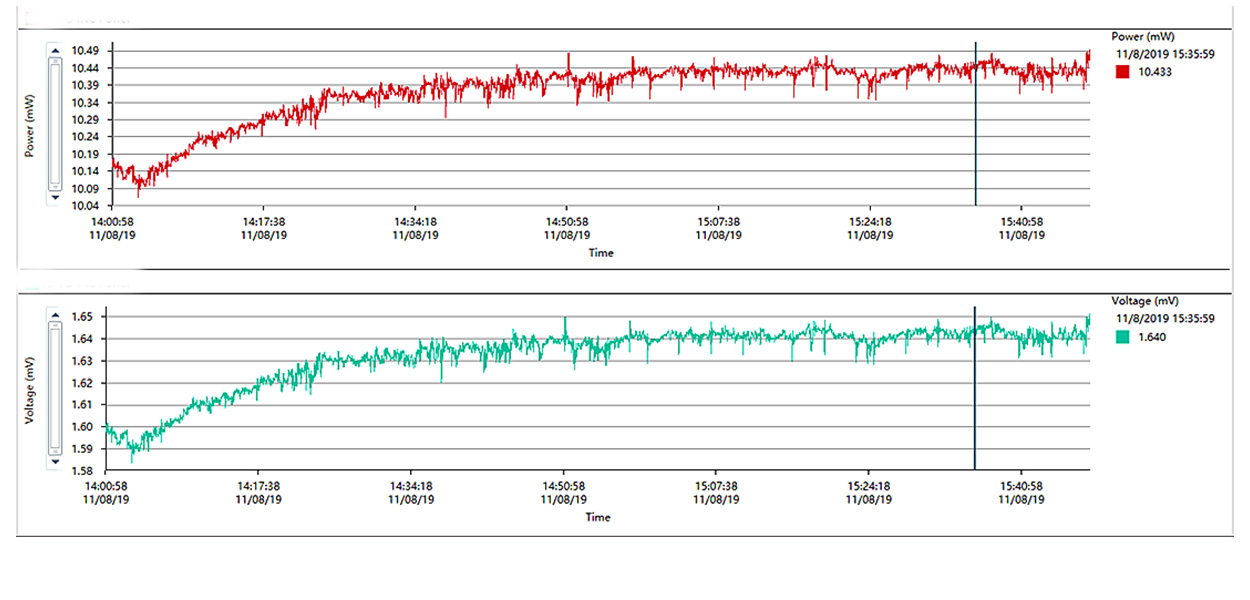

    QCL Laser Power Stability Test Curve






    Ordering info

    MIR-QCL- W□□□□ -☆-△-XX

    W□□□□：Wavelength

    5260: 5260nm

    7400: 7400nm

    9060: 9060nm

    10530: 10530nm

    ☆ ：Collimated Output

    1: With

    0: Without

    △：Laser Type

    FP: QCL-FP

    DFB: QCL-DFB

    XX: Output power

    001=1mw

    010=10mw

    020=20mw

    100=100mw

    1000=1000mw
