    • 7.42um Low Power benchtop DFB-QCL Mid-Infrared Quantum Cascade Laser 10mW (TDLAS Integrated Control Module)

    QCL7420 - 7.42um low-power benchtop DFB-QCL mid-infrared quantum cascade laser is a low-power QCL DFB laser developed by Idealphotonics in the first half of 2018. The tunable range exceeds 100nm, and the output power is greater than 10mw to meet the industrial needs of customers testing gas sensors. Our laser collimated output has stable output power and high temperature and wavelength stability, which is several orders of magnitude higher than the stability of traditional high-power quantum cascade lasers. It provides an excellent test light source for our mid-infrared test customers.

    Product features：

    Part Number：--

    Application area：

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters

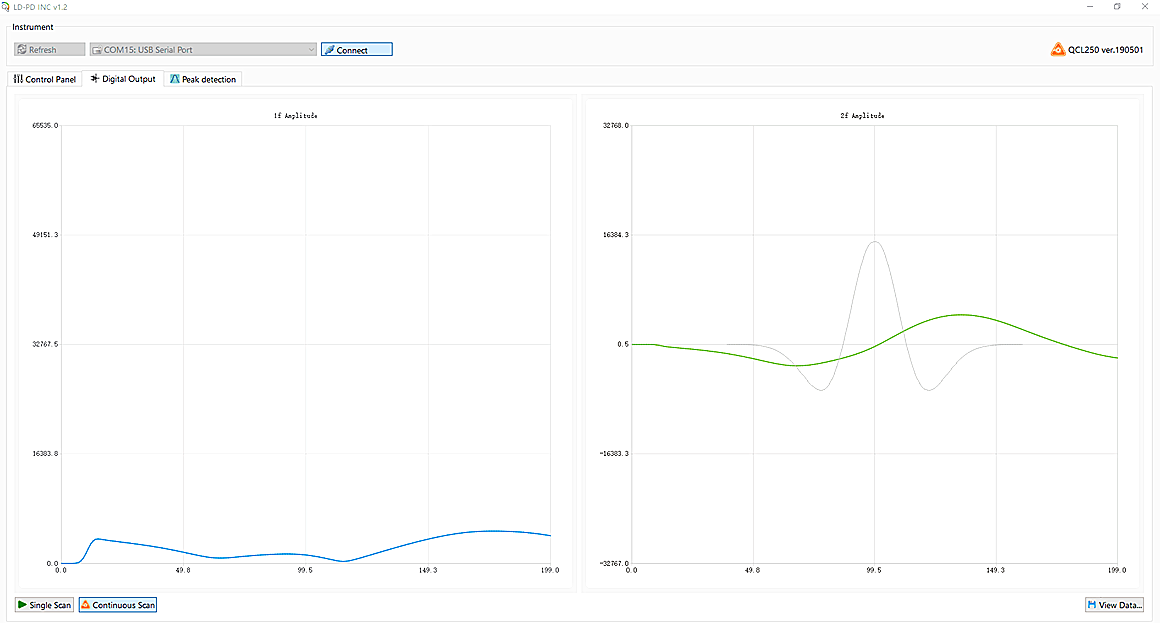

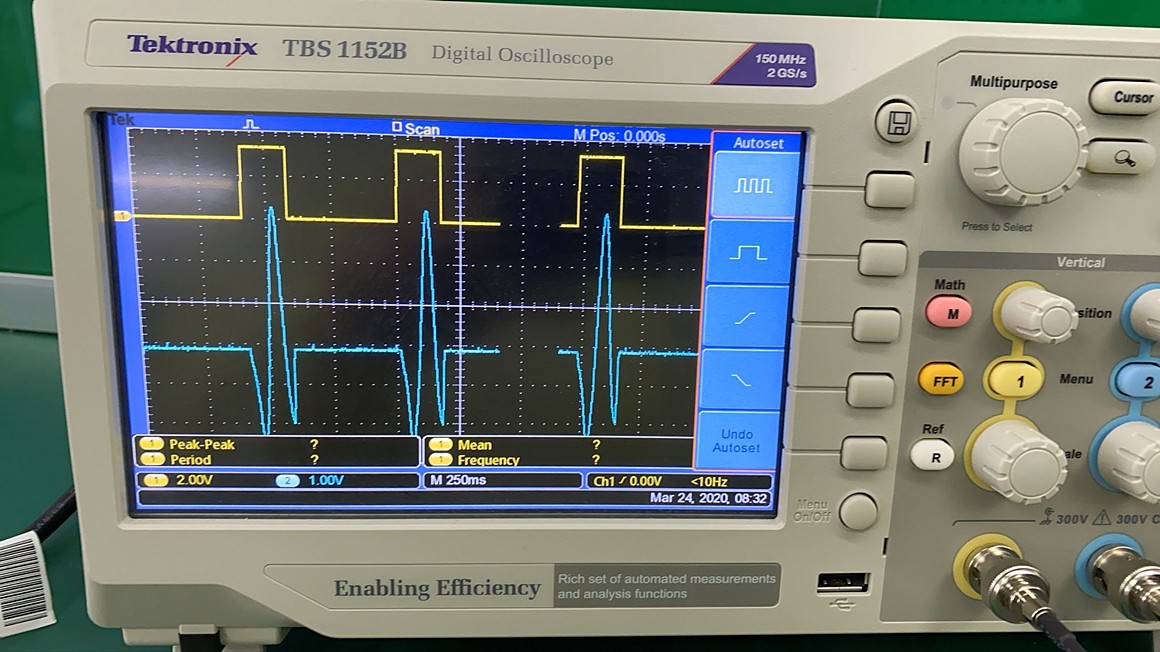

    2F signal acquisition interface




    Algorithm calibration interface





    Modulation signal linearity test (oscilloscope voltage signal effect diagram)





    Main Parameters



    Parameters

    Unit

    Specifications

    Min.

    Typ.

    Max.

    7.42umDFB-QCL

    Laser collimated output power

    mW


    10


    Peak operating wavelength

    um


    7.42


    Spectral width (FWHM)

    MHz


    1


    Output side mode suppression ratio (SMSR)

    dB

    20



    Output isolation

    dB


    30


    Wavelength temperature coefficient

    nm/℃


    0.6


    Wavelength current coefficient

    nm/mA


    0.2


    Output power stability (8 hours)

    %


    ±1

    ±4

    Output power adjustable range

    %

    0


    100

    TEC operating range

    ℃

    0


    50

    Operating voltage

    VAC

    100

    220

    240

    Operating temperature

    ℃

    0


    55

    Storage temperature

    ℃

    -20


    65

    Dimensions

    mm

    290(L)×108(W)×68(H)mm



    Technical indicators:

    1. Output power is optional;

    2. Peak operating wavelength can be specified;

    3. Output power stability test condition is 25 degrees, after 30 minutes of preheating;

    4. Max. power consumption refers to the overall power consumption under extreme working conditions.

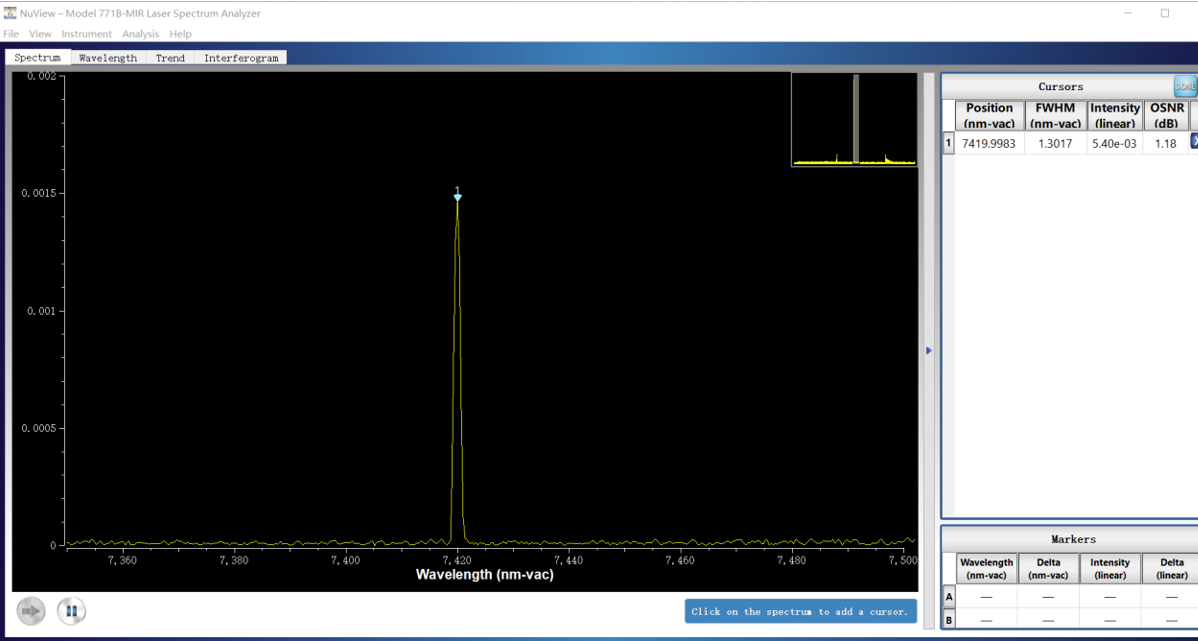

    Spectral diagram

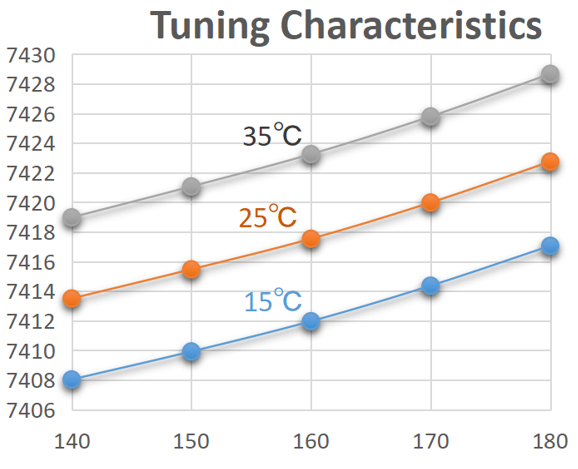

    Wavelength temperature tuning curve

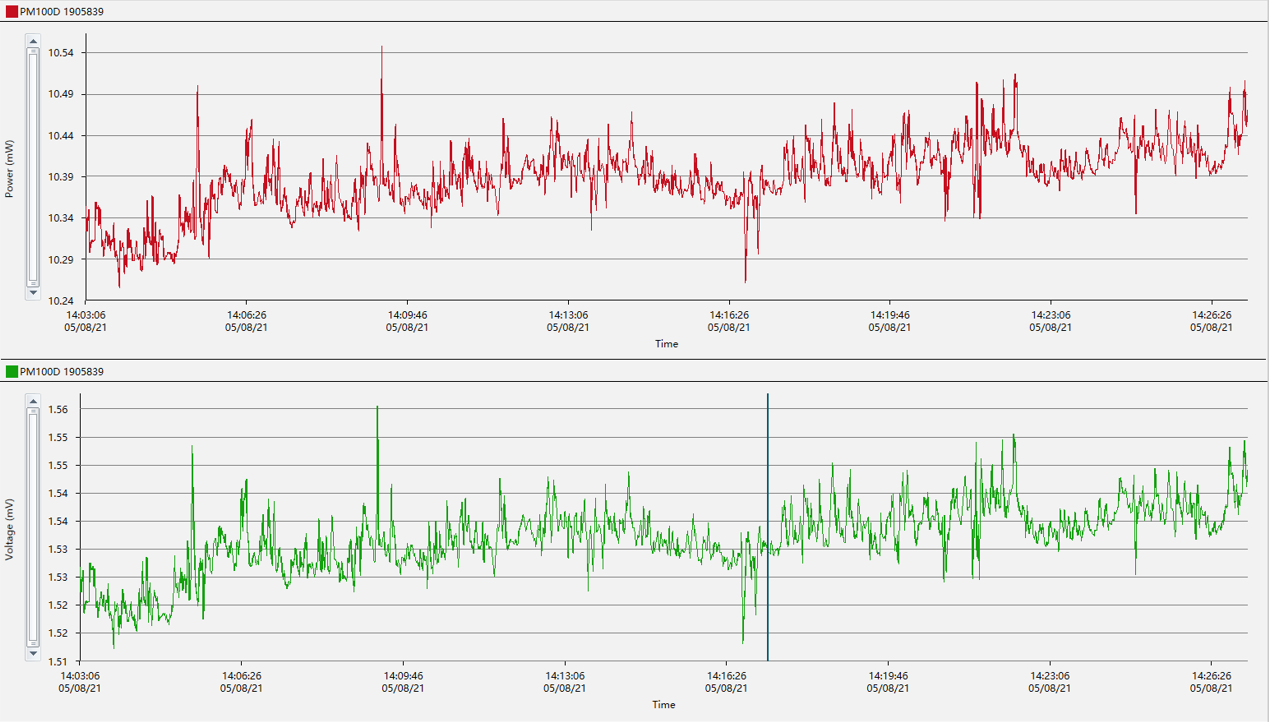

    Power stability

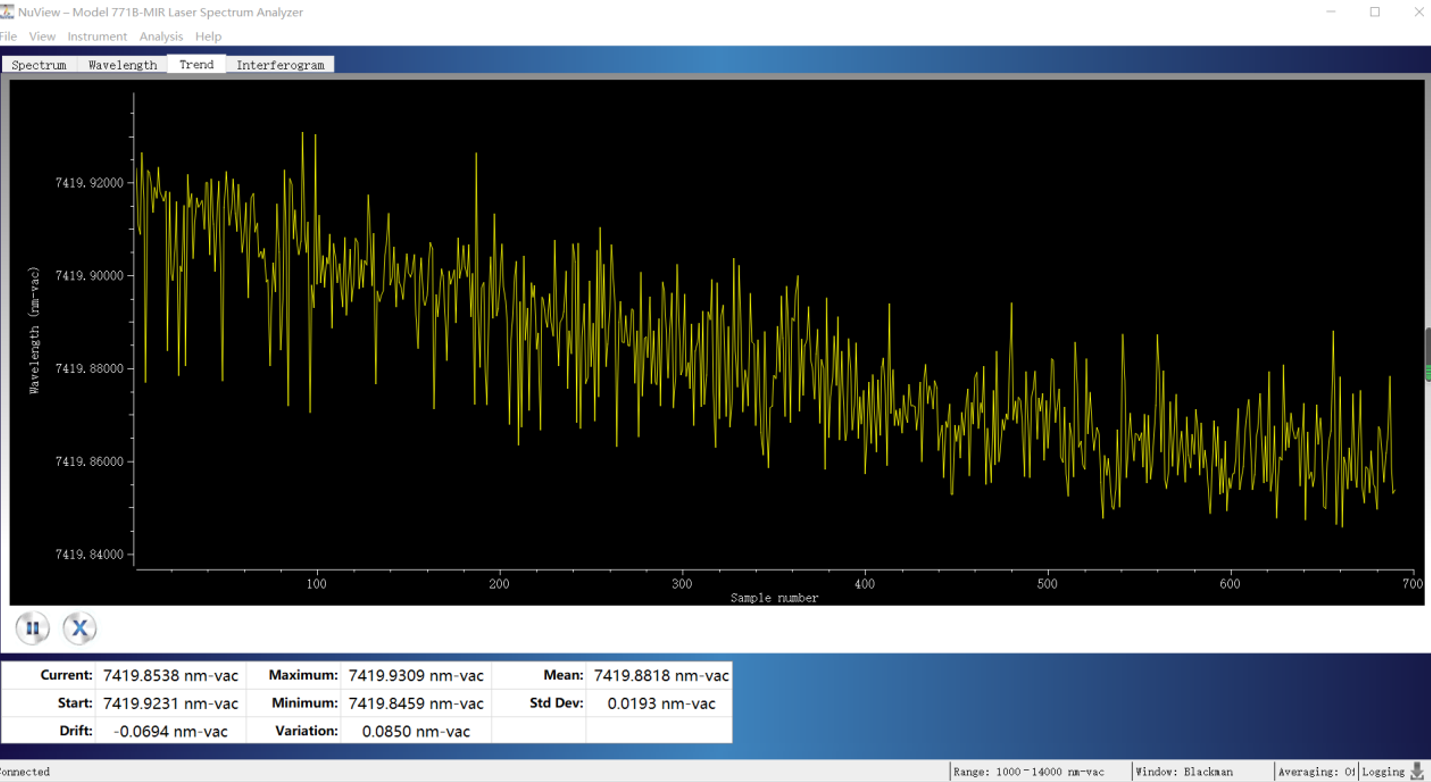

    Wavelength stability




    QCL laser characteristic curve (taking 7.4um typical wavelength as an example)

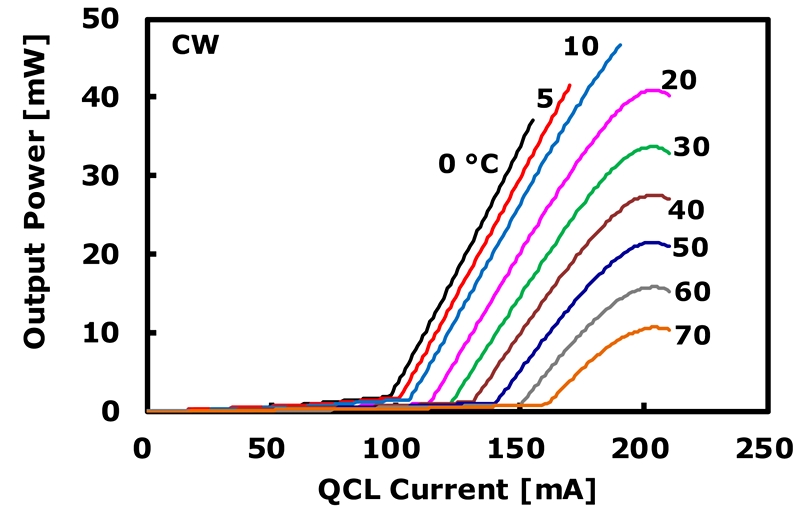

    Output power characteristic curve

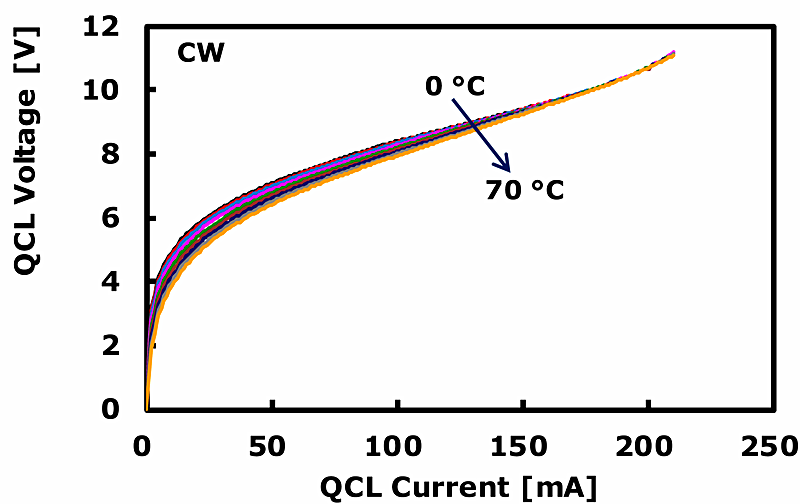

    Voltage characteristic curve

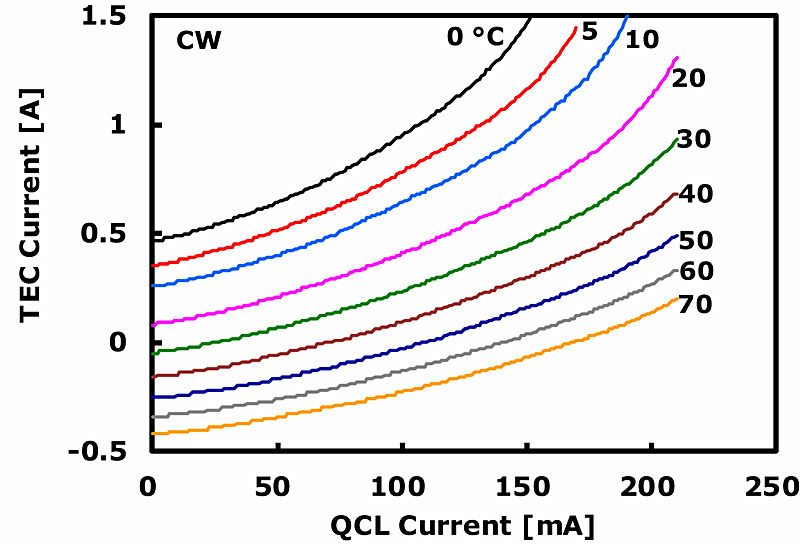

    TEC current characteristic curve

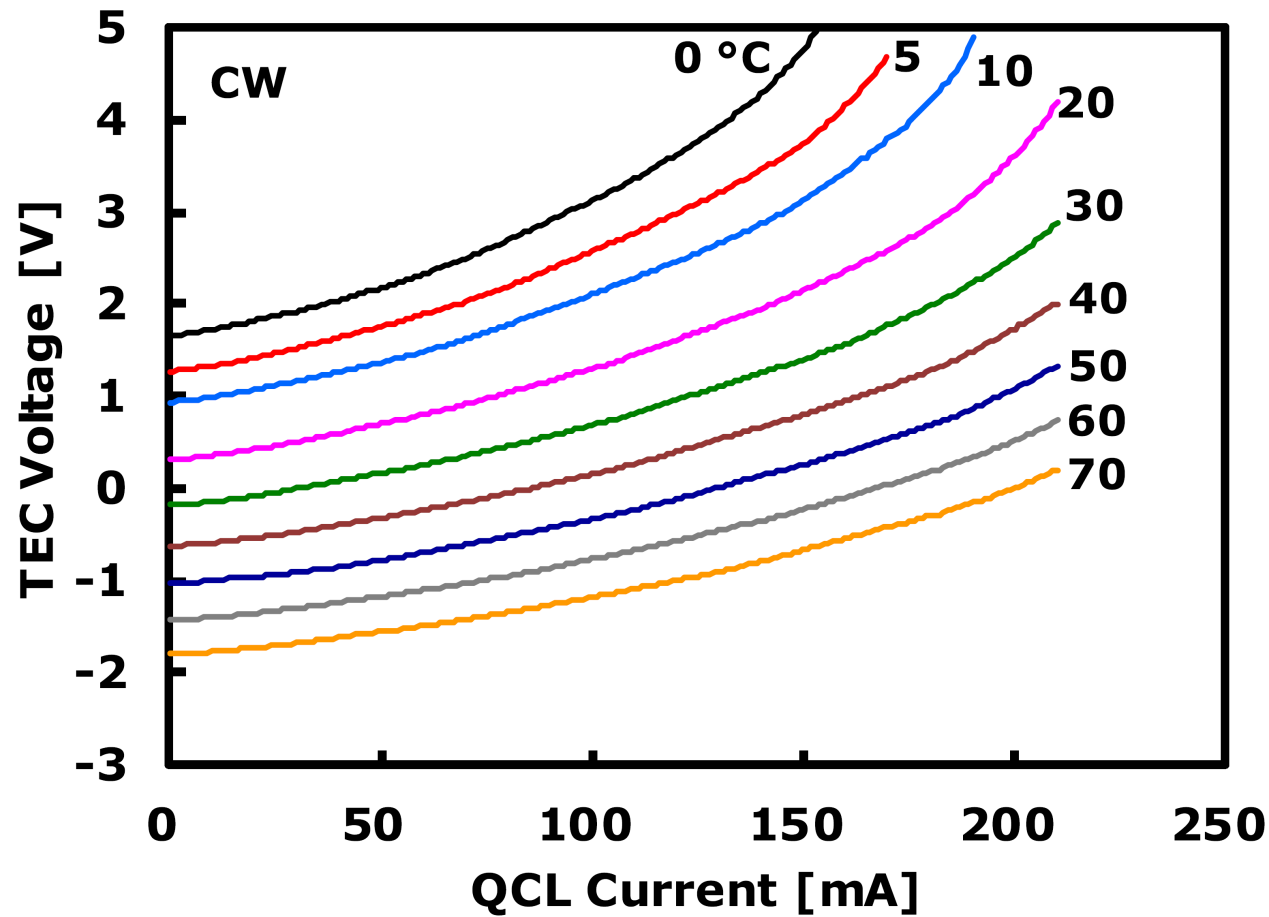

    TEC Voltage characteristic curve

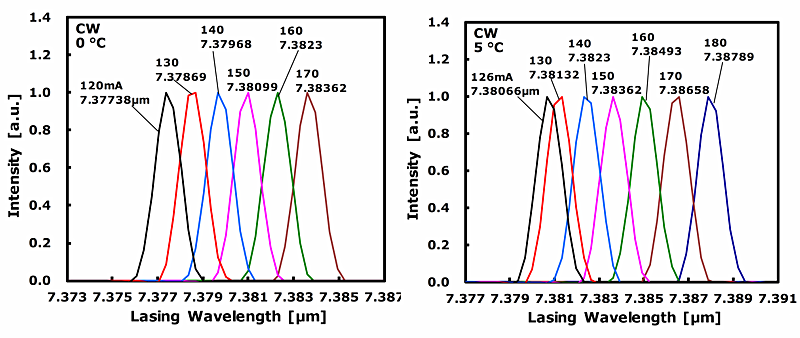

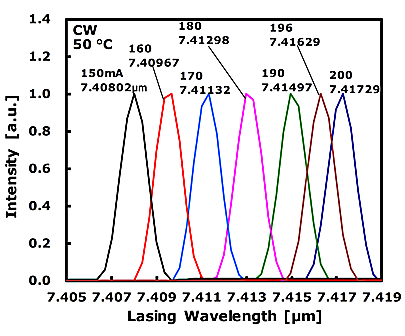

    Laser spectrum (continuous)

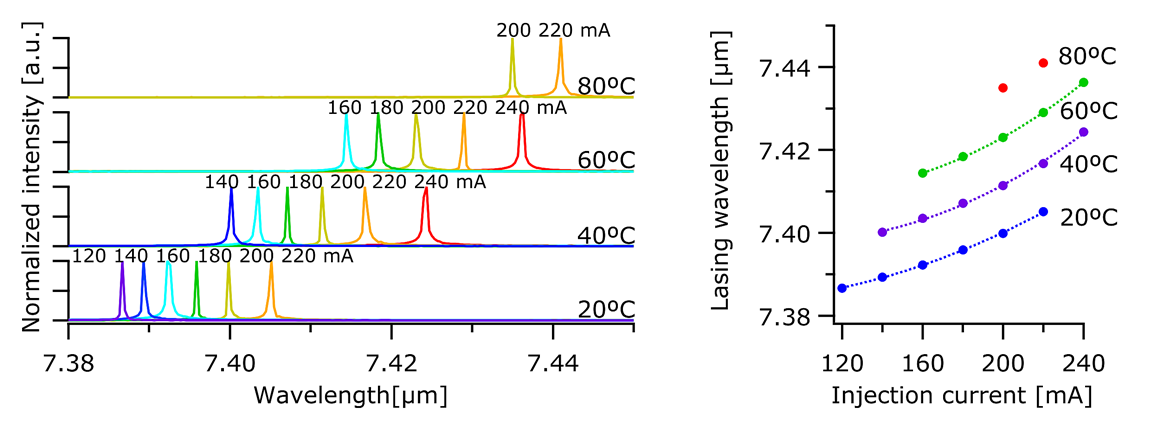

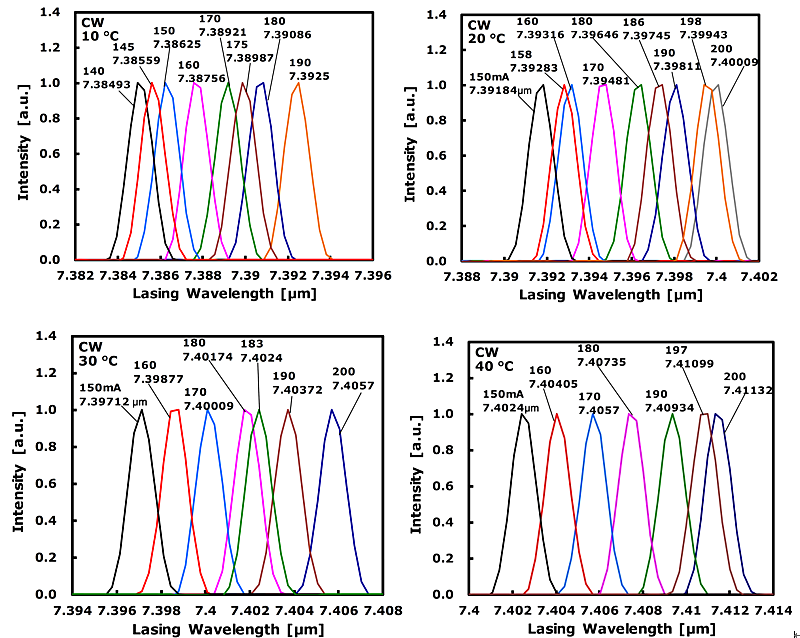

    Wavelength Temperature Current Tuning Curve

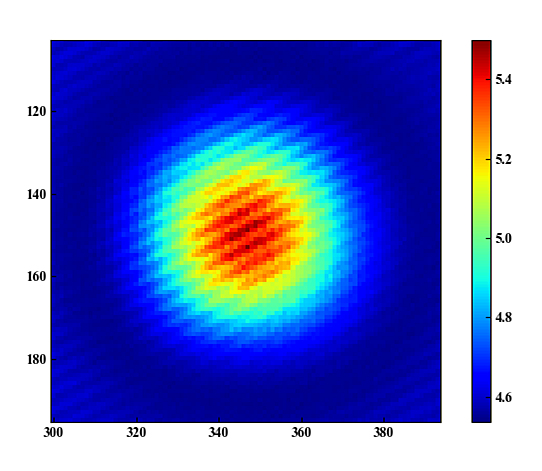

    Quantum cascade laser output spot

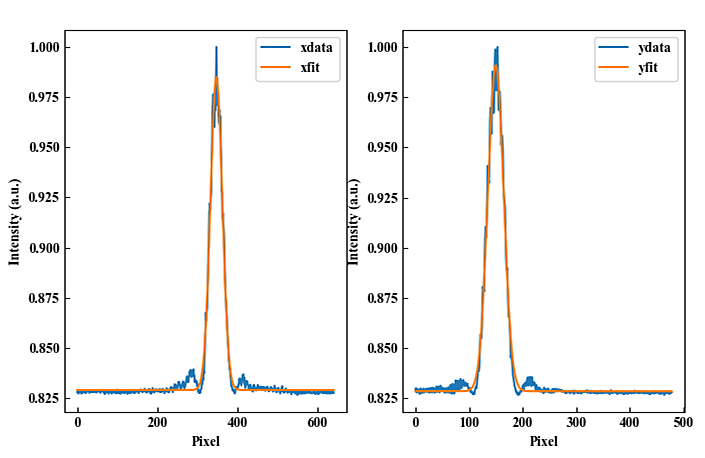

    Test camera pixel size = 5 μm, Gaussian fitting spot diameter is 320 μm

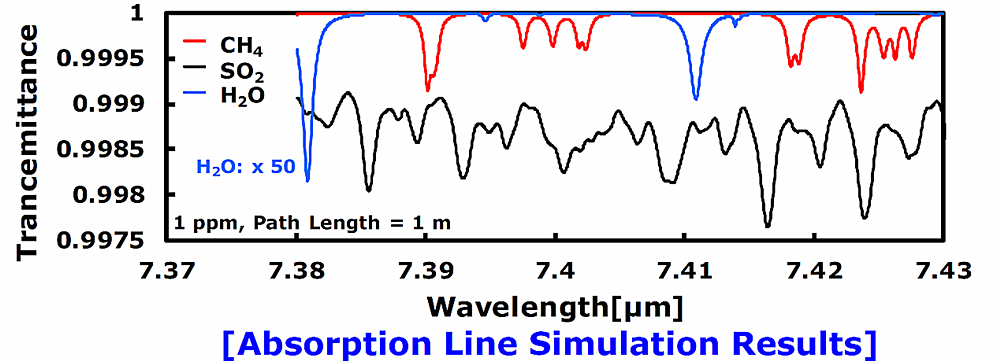

    Simulation results of absorption spectrum near 7.4um

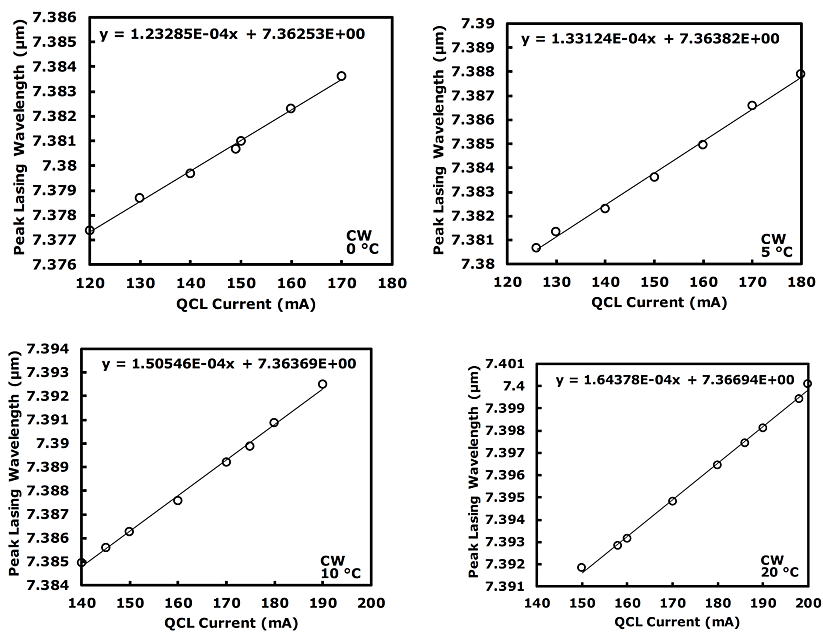

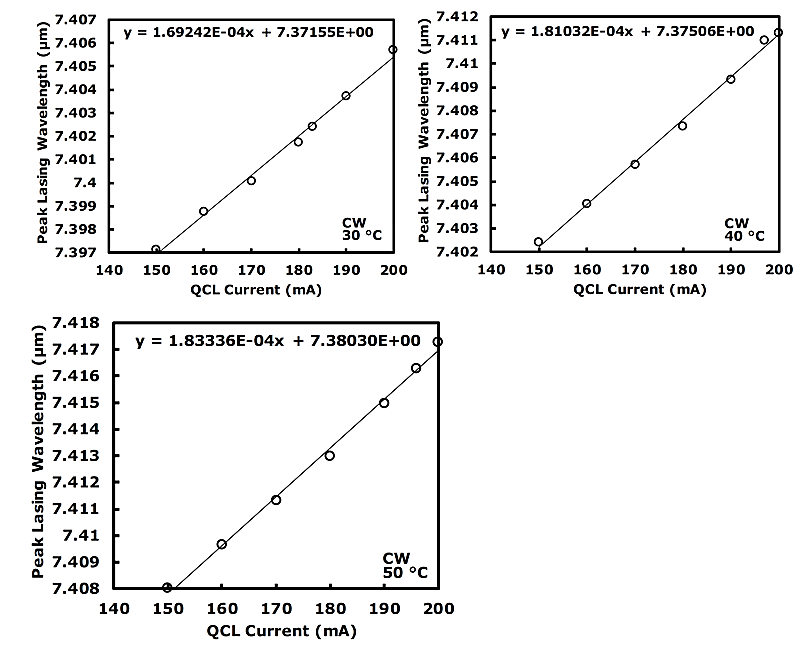

     Peak wavelength vs. current curve

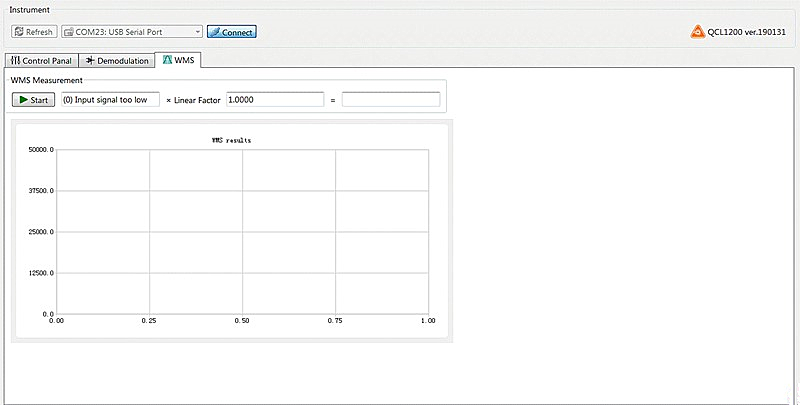

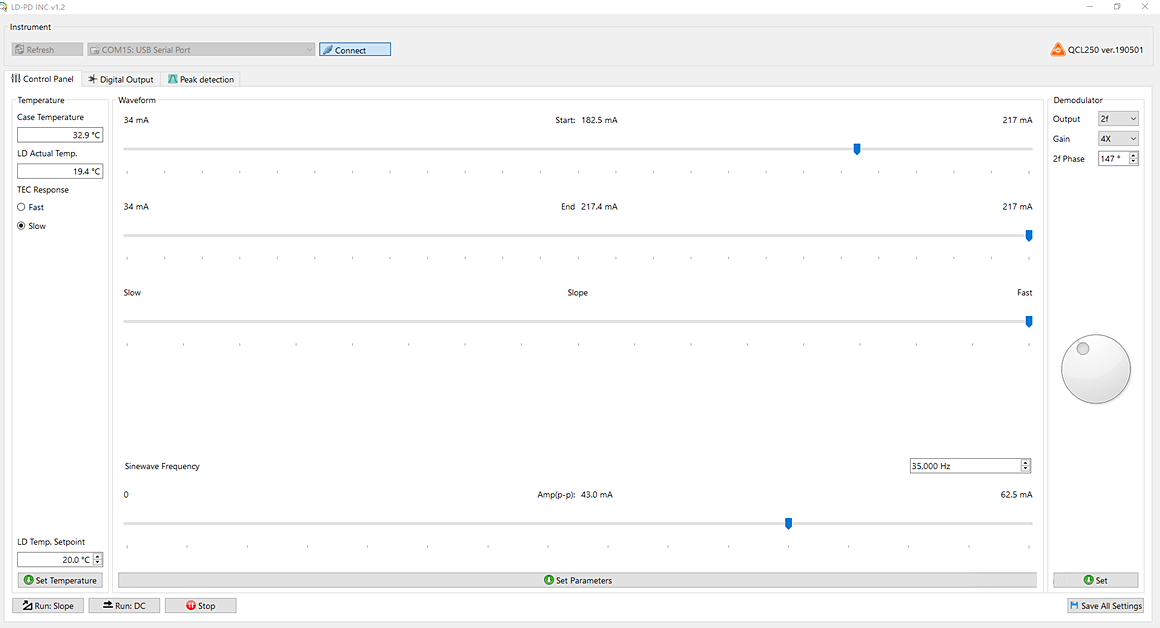

    Control software
