800-2600nm High-Speed InGaAs PIN Photodiode with 1.5mm TO39 Sealed Dome Lens

首页 PhotoDetectors Photodiode InGaAs photodiode 800-2600nm high-speed indium gallium arsenide PIN photodiode with a diameter of 3.0mm/1.5mm 800-2600nm High-Speed InGaAs PIN Photodiode with 1.5mm TO39 Sealed Dome Lens

800-2600nm High-Speed InGaAs PIN Photodiode with 1.5mm TO39 Sealed Dome Lens

The MTPD260K8-150, with a sensitivity wavelength range of 800nm to 2600nm, is a high-sensitivity and highly reliable product series, making it ideal for optical communication equipment. Customers can customize different packaging types.

产品特点Fast response speed、 TO-39 sealed dome lens packaging、 1.5mm Φ effective area / high sensitivity、 Spectral range: 800nm - 2600nm

产品货号E80043049

应用领域High-speed optical communication、 Industrial control、 Gas/water analysis 、 Laser ranging、 Medical

产品单价联系客服询价

到货日期请咨询客服获得货期

产品库存请咨询客服

Sherry

电话：16628709332

邮箱：moli@microphotons.com

加入询价单在线咨询

相关产品

主要参数
可选配置表
资料下载

主要参数

核心参数

尺寸图

Absolute Maximum Rated Parameters (Ta=25ºC):

Parameter	Symbol	Main Value	Unit
Effective Photosensitive Area Diameter	Ф	1.5	mm
Operating Temperature Range	Topr	40 to +85	ºC
Storage Temperature Range	Tstg	40 to +125	ºC

Photonic Parameters (Ta = 25ºC):

Parameter	Symbol	Condition	Min.	Typ.	Max.	Unit
Breakdown Voltage	V_R	I_R=100uA	--	--	1	V
Sensitivity Range	λ	V_R=0V	800	--	2600	nm
Dark Current	I_D	V_R=0V	--	150	--	nA
Dark Current	I_D	V_R=1V	--	350	--	uA
Responsivity	R	λ=2400nm	--	1.24	--	A/W
Shunt Resistance	R_S	V_R=10mV	--	1.25	--	kOhm
Quantum Efficiency	QE	λ=1840nm	--	72	--	%
Capacitance	C	V_R =0V	--	1500	--	pF
Capacitance	C	V_R=1V	--	100	--	pF

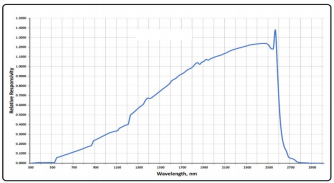

Spectral Response Curve:

Quantum Efficiency Curve:
