    • 8.34um Benchtop High Power FP-QCL mid-infrared Quantum Cascade Laser 80mW (TDLAS integrated control module)

    QCL8340FP-8.34um High Power Bench Top FP-QCL Mid-infrared quantum cascade laser is mid-infrared test laser developed by Idealphotonics in the first half of the year 2024. It has low atmospheric window loss, which is beneficial to space optical communication test research. Our bench top light source has high power and does not require ITAR review, making it an excellent choice for commercial mid-infrared test light sources. The tunable range exceeds 200nm, and the output power is greater than 80mW, which can meet the industrial needs of customer testing. Our laser has built-in Znse. The output is collimated and the output power is stable, and the temperature and wavelength stability are high , which is several orders of magnitude higher than the stability of traditional high-power quantum cascade lasers.

    产品特点High Power、 Compact structure、 Software intelligent control、 Built-in FPGA

    产品货号A80060106

    应用领域Mid-infrared test light source、 Mid-infrared device analysis

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • Center wavelength Output power

  • 尺寸图

    • General parameters



    Technical Parameters



    unit

    Technical indicators

    Min . Value

    Typical Value

    Max . Value

    Product Model


    LDC-MIR-QCL-W8340-1-FP- 0100

    Output Power 1

    mW

    50

    80

    100

    Peak operating wavelength 2

    um

    -

    8.34

    -

    Spectral Width (FWHM)

    nm

    -

    3

    -

    Output side mode suppression ratio (SMSR)

    dB

    30

    -

    -

    M2 Factor



    <1.2


    Output light divergence angle

    Mrad


    ＜2


    Output Isolation 3

    dB

    -

    30

    -

    Wavelength temperature coefficient

    nm/℃


    0.6


    Wavelength current coefficient

    nm/mA


    0.2


    Output power stability (15 minutes ) 4

    %

    -

    ±0.5

    ±1.0

    Output power stability (8 hours ) 4

    %

    -

    ±1.0

    ±2.0

    Output power adjustable range

    %

    0

    -

    100

    Output power regulation mode


    Software Control

    TEC stability

    ℃

    -

    ±0.1

    ±0.2

    TEC operating range

    ℃

    0

    30

    50

    Operating voltage

    VAC

    100

    220

    240

    Electrical power consumption 5

    W

    -

    -

    2

    Operating temperature

    ℃

    0

    -

    55

    Storage temperature

    ℃

    - 20

    -

    65

    Specifications and dimensions

    mm

    343(L)×193(W)×180(H) Bench Top

    Technical indicators:

    1. Output power is optional;

    2. The peak operating wavelength can be specified ;

    3. The output power stability test condition is 25 degrees, after 30 minutes of preheating ;

    4. Max . power consumption refers to the overall power consumption under extreme working conditions.




    Note: The laser's Max . operating current is 520mA; the operating temperature is 0-50℃.

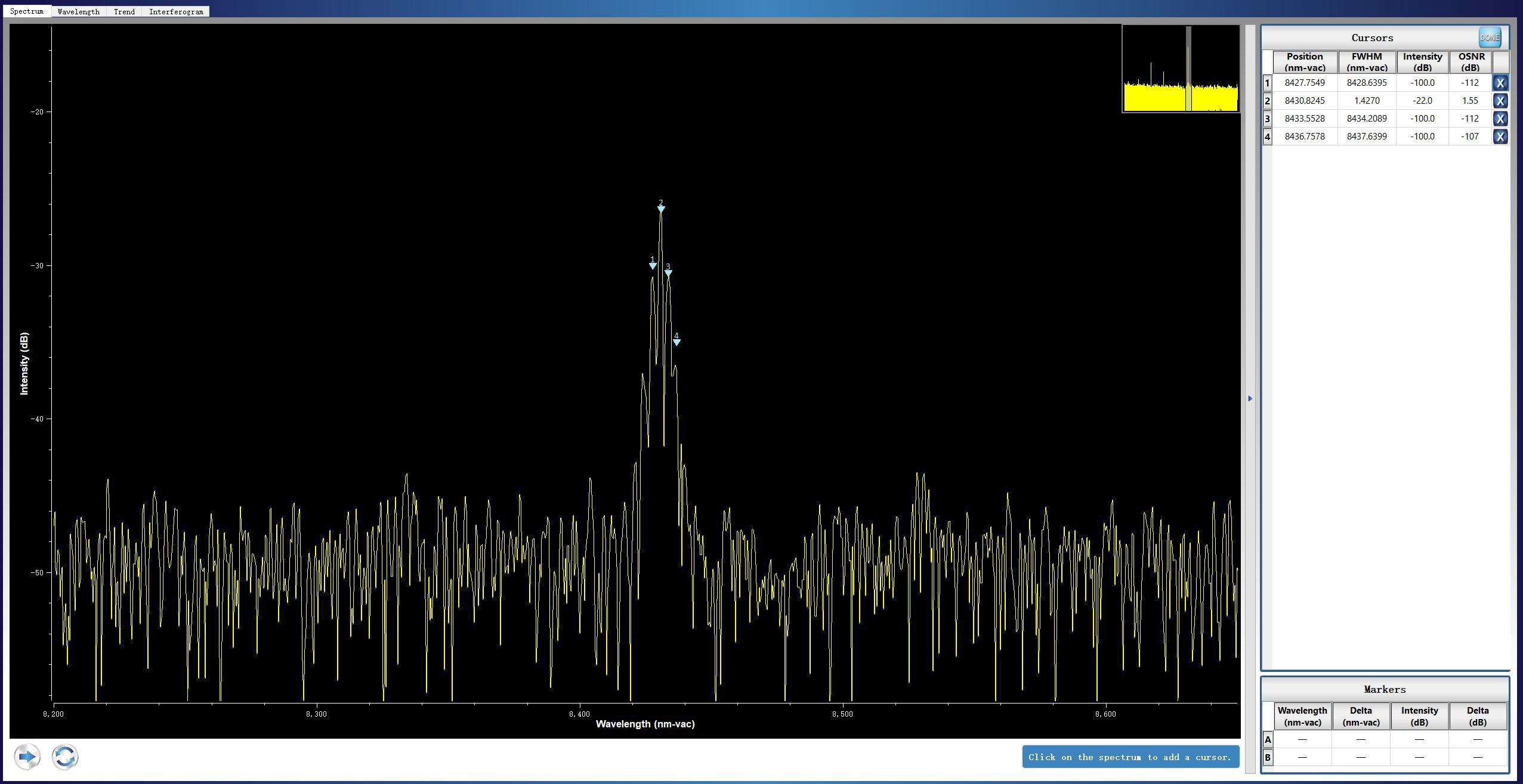

    1. Spectrum ( 4 ℃, 300mA )

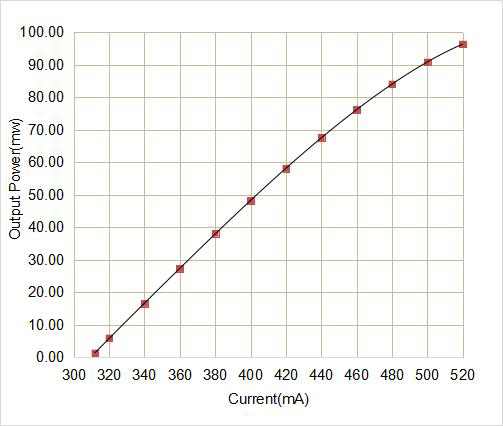

    2. Power curve ( 10 ℃)

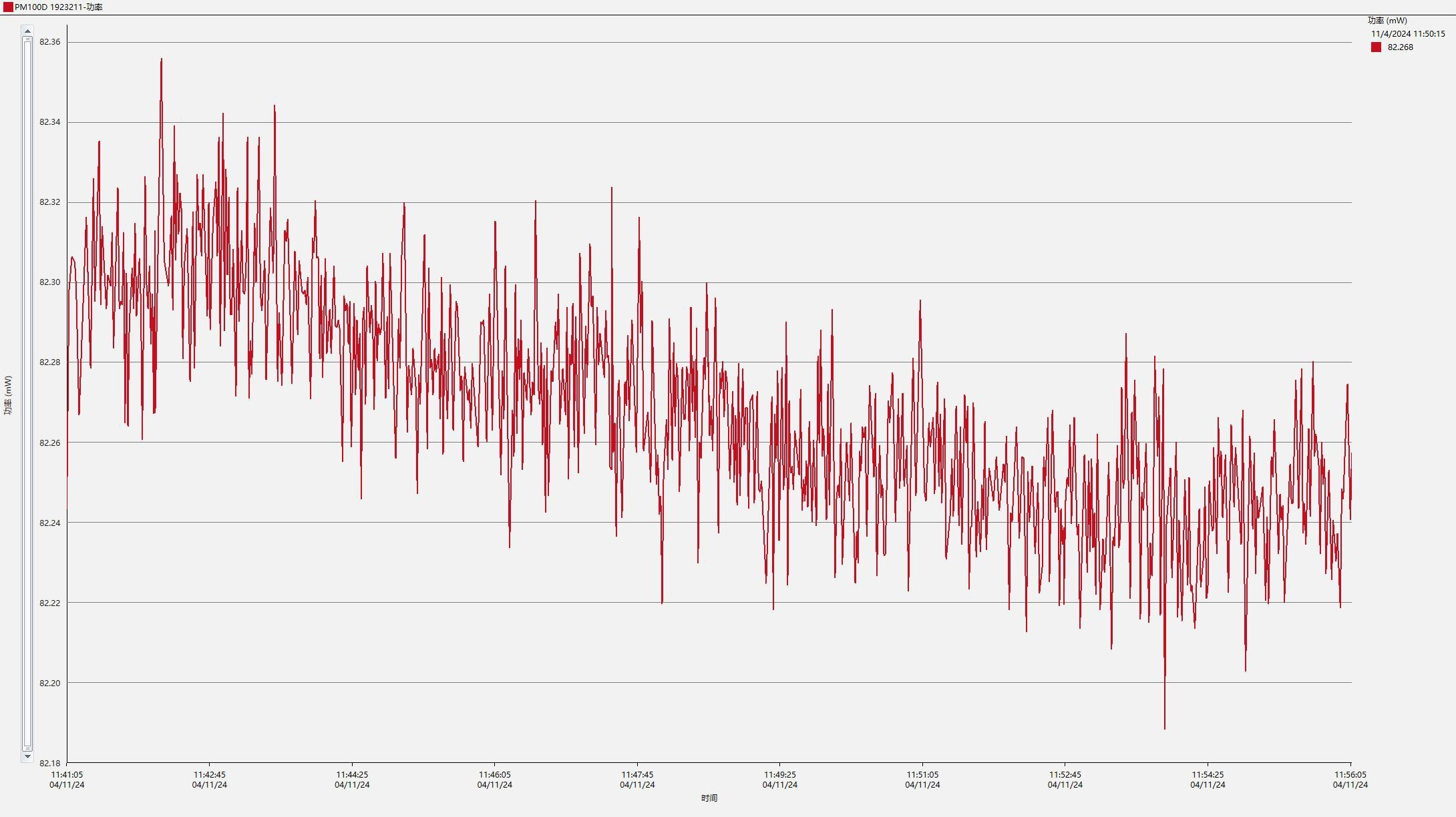

    3. Power stability ( 10 °C, 475mA )
