    • 1560nm high power femtosecond pulse fiber laser

    The E-Fiber series of ultrafast lasers integrate the latest femtosecond laser technology, use high-performance rare earth optical fiber as the working medium, and combine high-precision dispersion compensation technology and active servo system to achieve stable output of high-repetition-rate femtosecond pulse lasers in the 1560nm band. It can start automatically with one button, work stably and maintenance-free for a long time, and has the characteristics of extremely narrow laser pulses and high pulse peak power. It has wide applications in optical frequency combs, supercontinuum, terahertz THz and other fields. * Customization of parameters such as pulse width, power, and repetition frequency is accepted.

    产品特点Pulse width 120 fs、 Average laser power 1 W、 Self-starting and maintenance-free、 High stability

    产品货号A80080141

    应用领域Optical frequency comb、 Supercontinuum、 Terahertz wave、 Ultrafast laser phenomenon

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Parameter

    Unit

    Typical

    Notes

    Central wavelength

    nm

    1560±10


    Pulse width

    fs

    ≤120

    Customizable

    Laser average power

    W

    1

    Customizable

    Power instability

    -

    < ±1%

    24h@25°C

    Repetition frequency

    MHz

    80~100

    Customizable

    Single pulse energy

    nJ

    >10


    Laser polarization state

    -

    Linear polarization，DOP>20dB

    Vertical polarization

    Laser output mode

    -

    Space Light


    Beam quality

    -

    M2<1.2

    TEM00

    Beam diameter

    mm

    ≤1.6

    * 1/e2 Waist Diameter

    Beam divergence angle

    mrad

    <1.5




    Electrical and environmental parameters

    Unit

    Typical

    Notes

    Synchronous electrical signal interface

    -

    SMA


    Warm-up time

    min

    <1


    Operating temperature

    °C

    5 ～ 45


    Power supply

    -

    AC 110~240VAC

    Power consumption<40W

    Dimensions

    mm

    330(W)×398(D)×112(H)

    Table Benchtop

    Weight

    kg

    ≤5

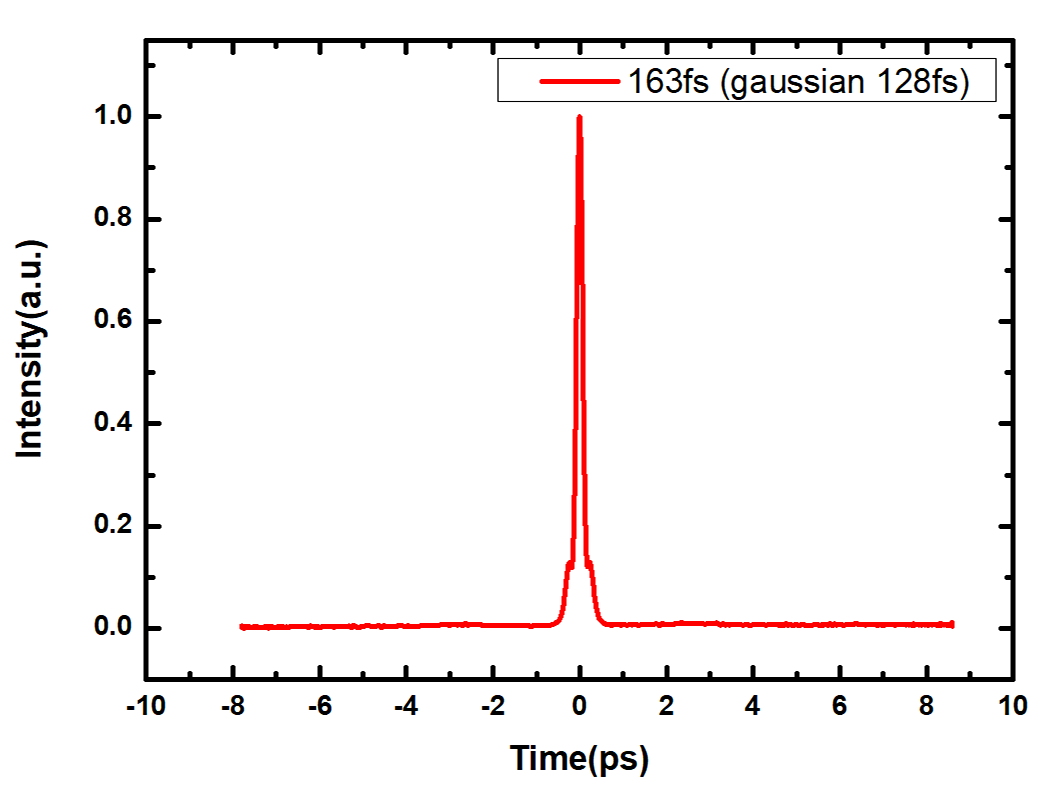

    Pulse AC Curve

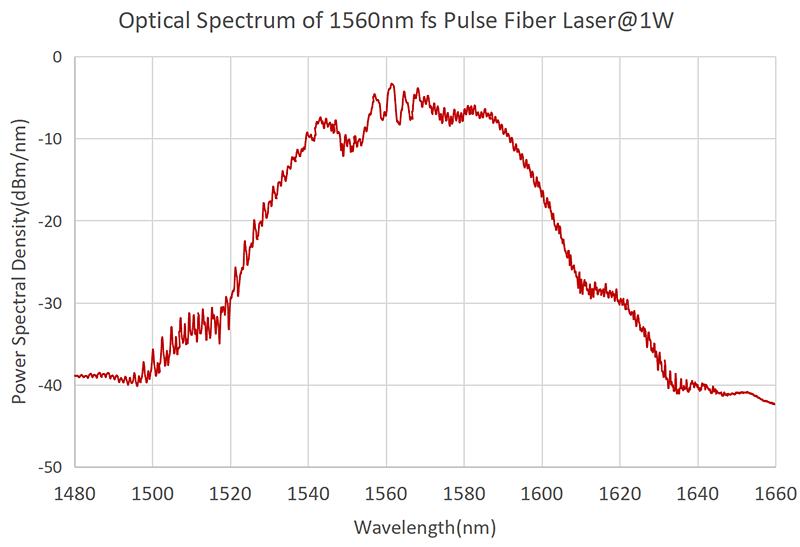

     spectrum

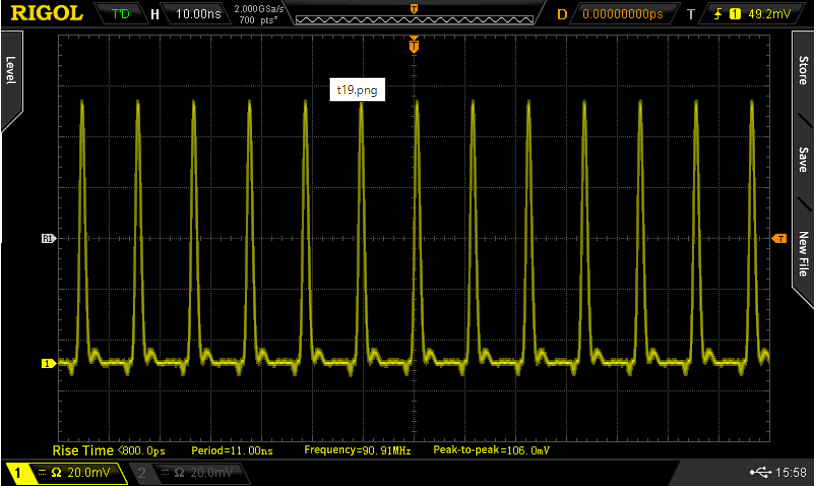

    Pulse sequence




    Ordering information / PN#

    FSPL

    wavelength(nm)

    Pulse width(fs)

    Average power (mW)

    Repetition rate(MHz)

    Output method

    Packaging form


    1560

    120

    1000

    80/100

    FS= free space optical

    B=Benchtop
