• 1560nm high repetition rate femtosecond pulse fiber laser

    The E-Fiber series of ultrafast lasers integrate the latest femtosecond laser technology, use high-performance rare earth optical fiber as the working medium, and combine high-precision dispersion compensation technology and active servo system to achieve stable output of high-repetition-rate femtosecond pulse lasers in the 1560nm band. It can start automatically with one button, work stably and maintenance-free for a long time, and has the characteristics of extremely narrow laser pulses and high pulse peak power. It has wide applications in optical frequency combs, supercontinuum, terahertz THz and other fields. * Customization of parameters such as pulse width, power, and repetition frequency is accepted.

    产品特点Pulse width 50~500 fs、 Pulse repetition rate 200MHz~1GHz customizable、 Self-starting and maintenance-free、 Full polarization and high stability

    产品货号A80080093

    应用领域Optical frequency comb、 Supercontinuum、 Ultrafast laser phenomenon

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话:18602170419

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Parameter

    Parameter

    Unit

    Typical

    Notes

    Wavelength

    nm

    1560±10


    Spectral width

    nm

    20


    Pulse width

    fs

    50 ~ 500

    Customized

    Output power

    mW

    1 ~ 200

    Customized

    Power instability

    -

    < ±1%


    Repetition rate

    MHz

    ≥ 200

    200MHz~1GHz can customized

    Repetition rate instability

    Hz

    < 200


    Single pulse energy

    nJ

    >1


    Polarization state

    -

    Linear polarization


    Output fiber type

    -

    PM fiber 1m


    Optical connector type

    -

    FC/APC,Slow axis alignment slot


    Warm-up time

    min

    <1



    Electrical and Environmental Parameters

    Benchtop

    Moudle

    Control method

    button

    button

    Synchronous electrical signal interface

    SMA

    SMA

    Power supply

    100~240VAC,<30W

    5V DC,<20W

    Dimensions

    260(W)×280(D)×120(H)mm

    200(W)×121(D)×65(H)mm

    Operating temperature

    5 ~ 35°C

    Operating humidity

    0~70%

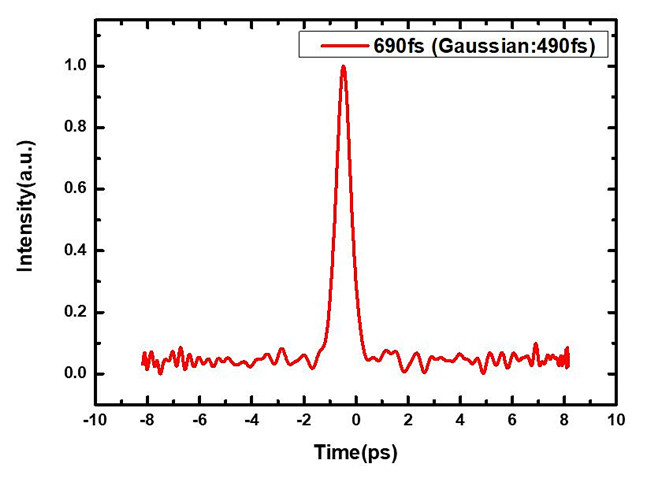

    Pulse autocorrelation line

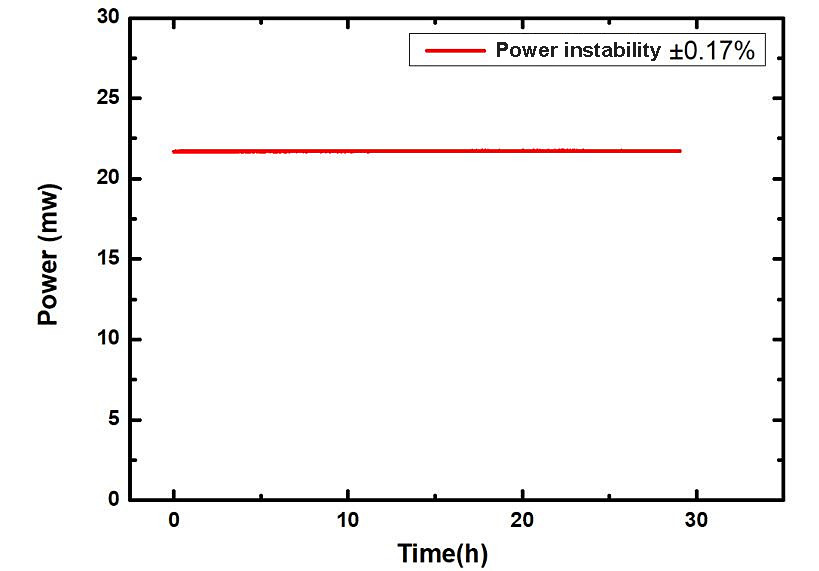

    Power

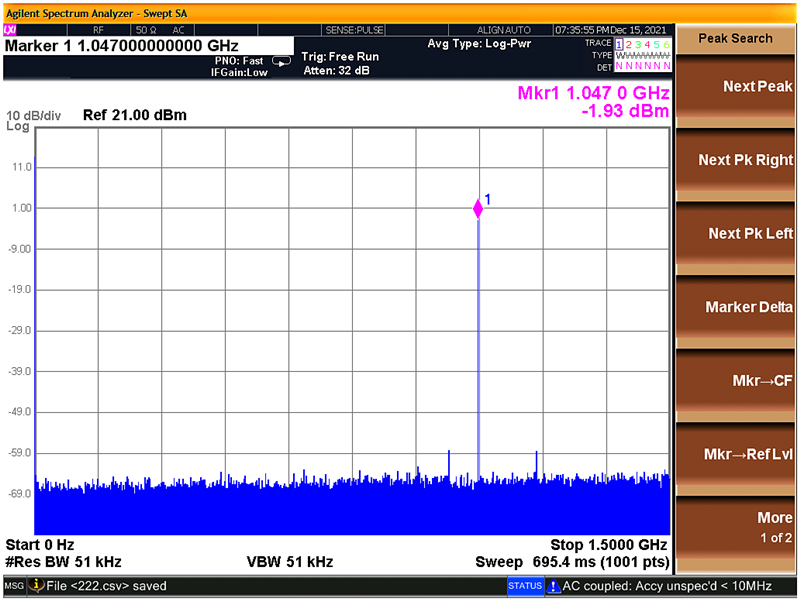

    Pulse sequence

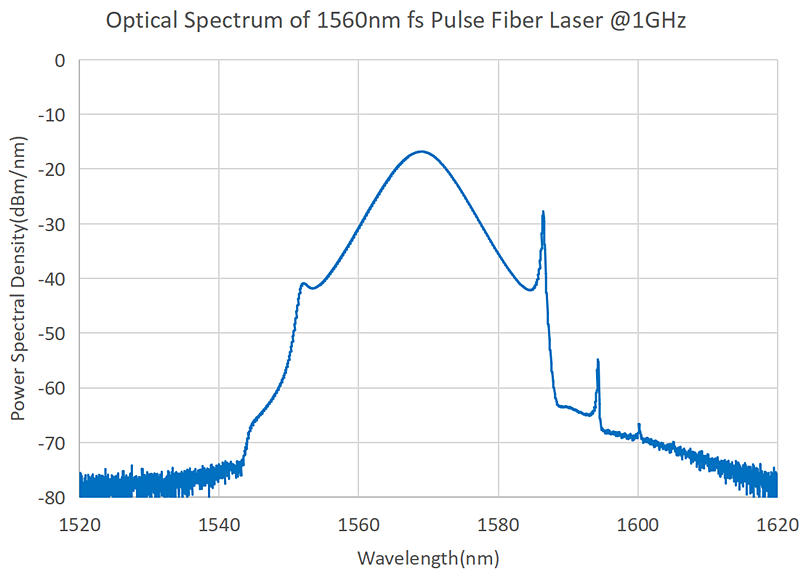

    Spectrum





    Ordering information / PN#

    FSPL

    wavelength(nm)

    Pulse width(fs)

    Average power (mW)

    Repetition rate(MHz)

    Output method

    Packaging form


    1560

    50/100/200/ 500

    10/50/100

    200/600/1000

    SM=single-mode

    PM=Polarization-mode

    B=Benchtop

    M=Module
