    • Ultrafast fiber laser 1030nm Femtosecond

    UFL 1030 Femto is a miniaturized version developed on the basis of UFL 1550 OEM. The optical path and circuit structure are highly integrated, compact and portable, especially suitable for industrial or OEM commercial system integrators. UFL 1030 Femto has a flexible performance parameter selection range, with a typical output wavelength of 1030±5 nm, a repetition frequency range of 25±1 MHz, and a pulse width as low as 200 f

    产品特点Customizable wavelength、 High peak power、 Linear polarization、 Diffraction-limited beam quality

    产品货号A80080065

    应用领域Ultrafast spectroscopy、 Two-photon polymerization、 High-speed optical sampling、 Light speed measurement

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Laser parameter

    Operating wavelength

    1030±5 nm

    Single pulse energy >4 nJ

    Pulse width

    <200 fs

    Polarization extinction ratio >20 dB

    Repetition frequency

    25±1 MHz

    Beam quality TEM00,M2<1.2

    Average power

    >60 mW

    Output mode spatial light output

    Power stability

    <0.5%RMS(24h@25℃)


    Electronic, environmental, mechanical parameters

    Power consumption

    <30 Watt

    Operating humidity 20-80%

    Synchronous signal

    1 V@50 Ohm

    machine weight 1.2 kg

    Power supply voltage

    12 VDC

    Dimensions 258×194×115 mm

    Operating temperature

    15-35℃

    Cooling method: air cooling


    Test Date

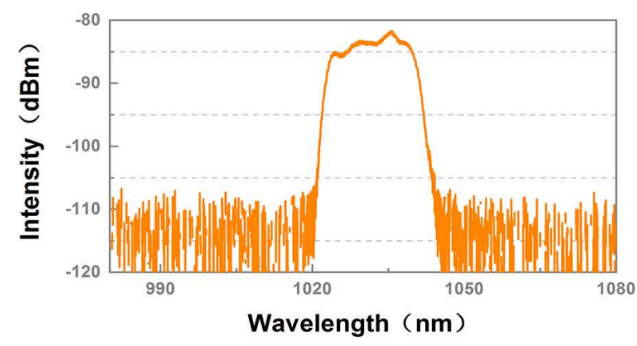

    Output spectrum

    Pulse autocorrelation trace







    Output power stability





    Test data:

    Test time 2022-08-04

    Test temperature 25℃ (±1)



    1. Output power test results

    Electric current/mA

    Power/mW

    0

    0.6

    100

    4.3

    150

    11.5

    200

    21

    250

    32

    300

    44

    350

    58

    400

    72

    450

    85

    500

    99

    550

    114



    Test Equipment: Power Meter Thorlabs


    2.Pulse width: (τ=147fs):



    Test instruments: APE autocorrelator; Sech2 fitting



    3.Pulse sequence: (f=24.6MHz)

    Main output pulse:




    Synchronous output:

    Test instruments: DSOX2022A (oscilloscope); DET08C/M (probe)



    4.Output spectrum @114mW: (λc=1032.5nm,Δλ=8.5nm)



    Test instrument: Anritsu MS9740A spectrometer



    5.Power stability test: (Power Stability 0.7%RMS)

    Average power 114.3mW, stability qualified



    Test instrument: power meter Thorlabs, test temperature (25±1℃)



    6. Locking mode detection: Start times 1000 times, successful start times within 3s 1000 times, success rate 100%.



    7. Polarization extinction ratio test

    Test structure: laser collimated output → half-wave plate → PBS.

    Test method: By rotating the half-wave plate, measure the Max. and Min. power values at the two output ports of PBS. Polarization extinction ratio PER=10log（Pmax/Pmin）.

    Pmax=112mW

    Pmin=0.6mW

    Polarization extinction ratio：22.7dB



    8. Typical light spot (ellipticity 95%@0.2m)
