3.45um low power benchtop ICL-DFB tunable continuous light laser (TDLAS integrated control module) 5mW

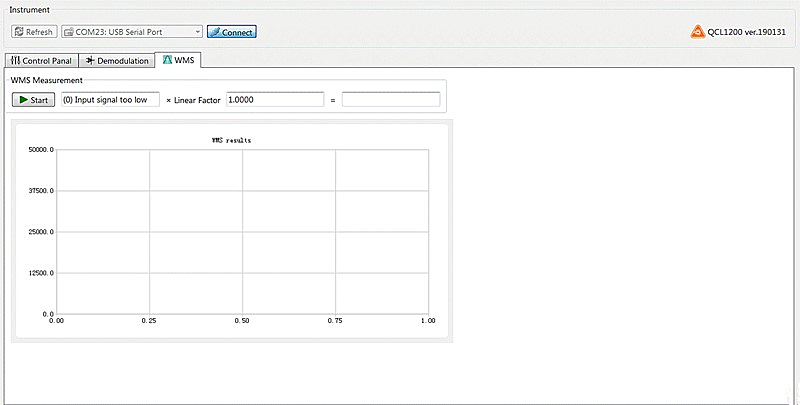

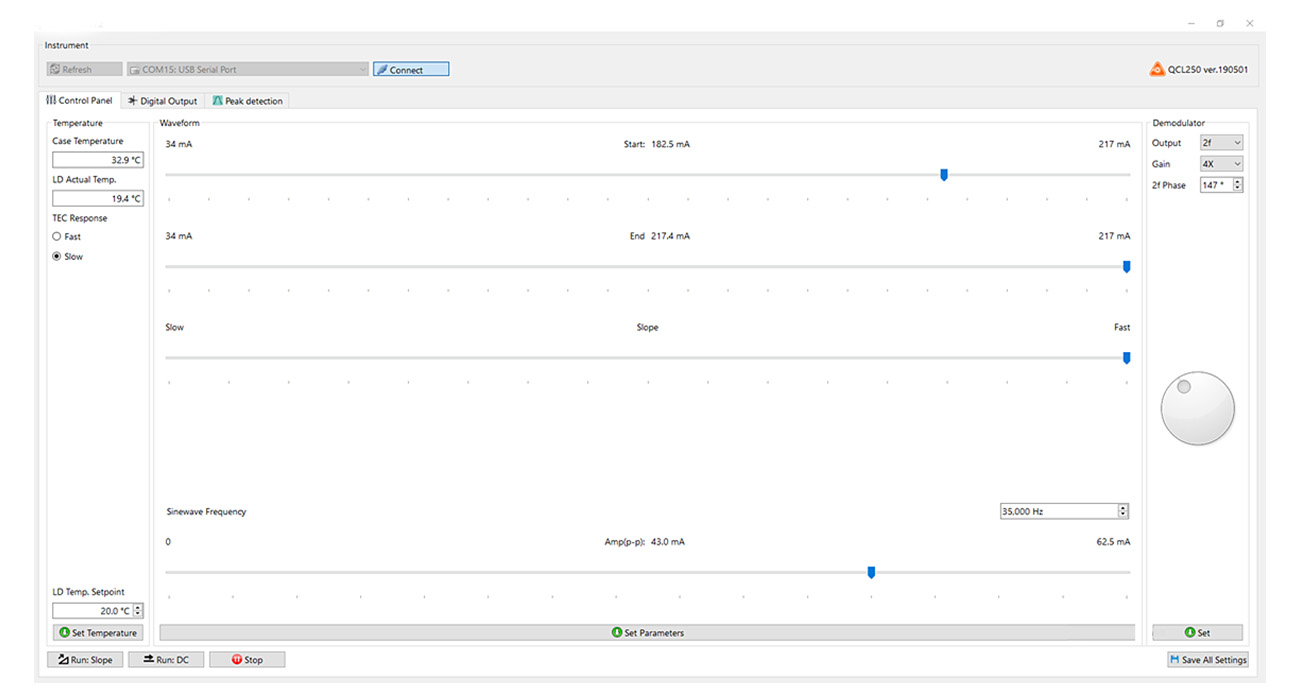

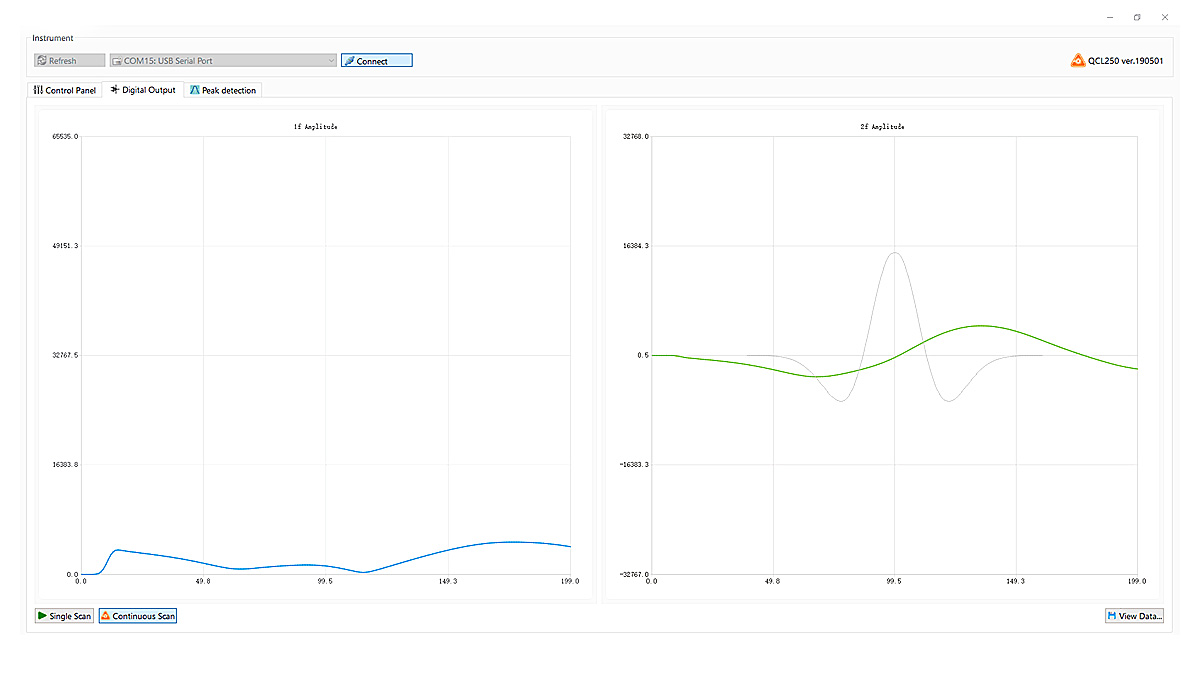

The 3.45um ICL-DFB laser is a tunable continuous light laser developed by Idealphotonics. It has a narrow line width, high power, and low power consumption. It can meet the gas sensing test, especially for the test of hydrocarbons and other related gases. In addition, the benchtop ICL-DFB laser module integrates a driver and temperature control module. The temperature and operating current of the tuned laser can also be controlled by software, which can make the laser work stably and maintain the accuracy of the measured value. FPGA is also added inside the laser module to facilitate the processing of the concentration of the measured gas.

产品特点Continuous wave、 Single-mode spectrum、 Adjustable light source、 Low power consumption、 High-quality beam、 Narrow line width、 Software intelligent control、 Small structure

产品货号A80070007

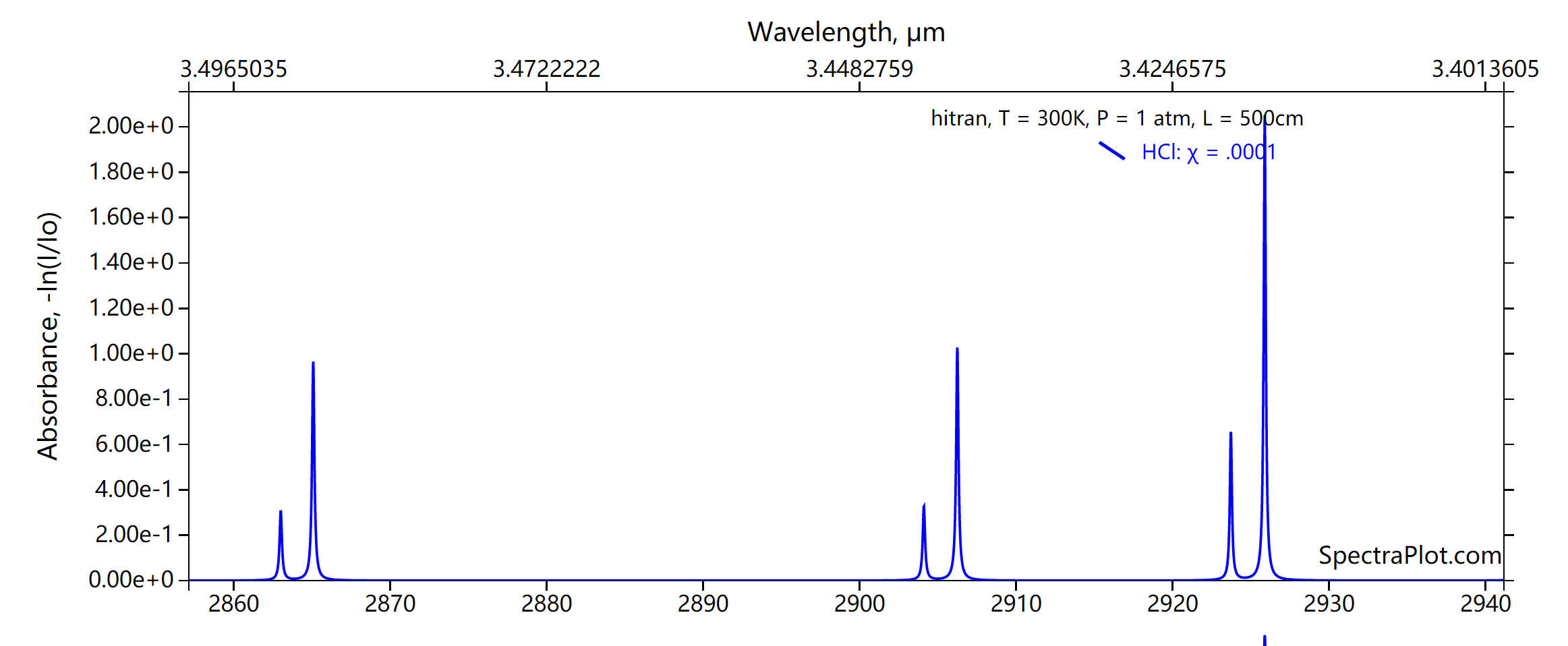

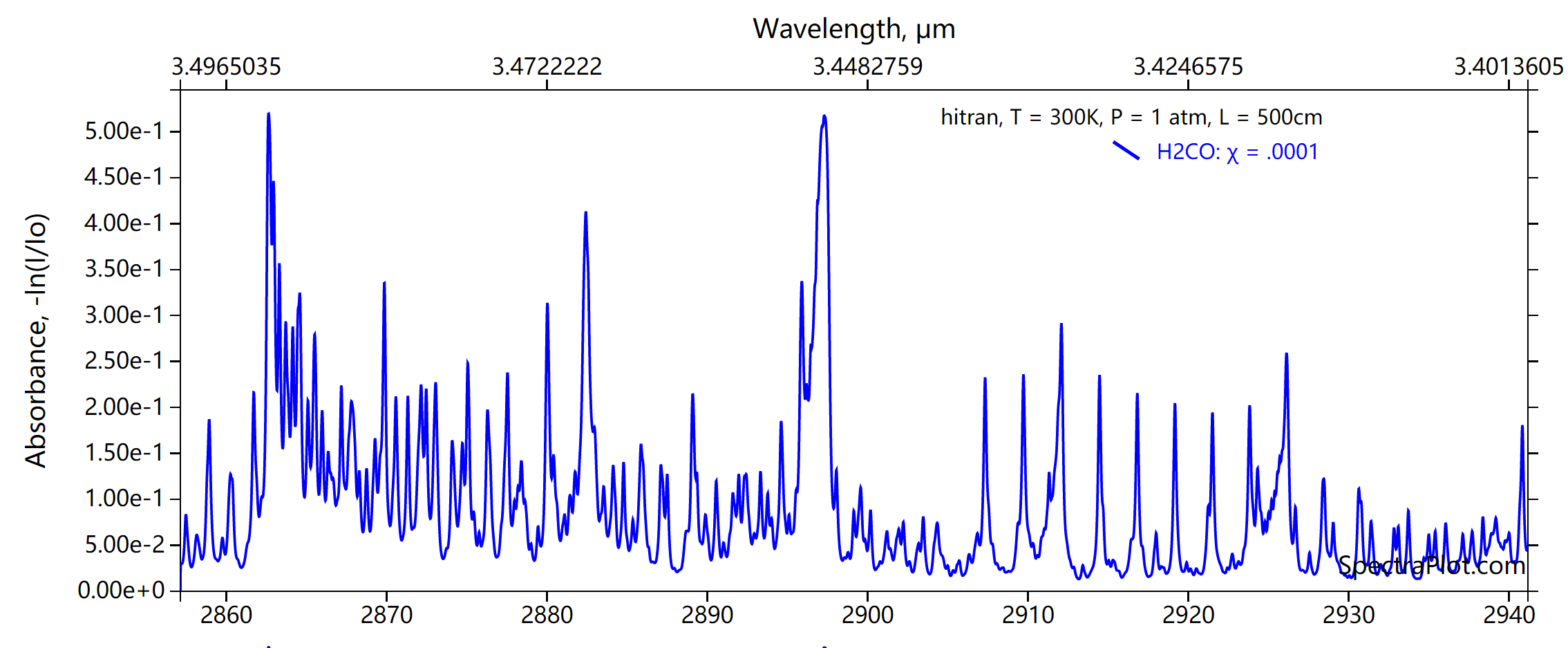

应用领域TDLAS HCL and formaldehyde, methane and other gas system measurement setup 、 Mid-infrared system light source 、 Mid- device analysis
