The 4.0um high-power benchtop FP-QCL quantum cascade laser is a continuous light laser developed by Idealphotonics. It has a relatively high output optical power and a collimated output power of several hundred milliwatts, which can meet the light source conditions for mid-infrared testing. In addition, the benchtop FP-QCL laser module integrates a driver and temperature control module, and can also use software to control the temperature and operating current of the tuned laser, which can make the laser work stably and maintain the accuracy of the measured values.
产品特点Low power consumption, high power、 High side mode suppression ratio 、 Intelligent software control、 Small structure
产品货号A80060029
应用领域Mid-infrared test light source、 Mid-infrared device analysis、 Mid-infrared system light source
产品单价联系客服询价
到货日期请咨询客服获得货期
产品库存请咨询客服
Daisy
电话:18602170419
邮箱:moli@microphotons.com
相关产品
Parameter
Parameter | Unit | Technology indicator | ||
Min. | Typical | Max. | ||
4.0umFP-QCL | ||||
Collimated laser output power | mW | 250 | 280 | |
Peak operating wavelength | um | 4.0 | 4.05 | 4.1 |
Spectral width (FWHM) | dB | 8 | ||
Output side mode suppression ratio (SMSR) | dB | 30 | ||
Output isolation | dB | 30 | ||
Wavelength temperature coefficient | nm/℃ | 0.6 | ||
Wavelength current coefficient | nm/mA | 0.2 | ||
Output power stability (8 hours) | % | ±1 | ±4 | |
Output power adjustable range | % | 0 | 100 | |
TEC operating range | ℃ | 0 | 50 | |
Operating voltage | VAC | 100 | 220 | 240 |
Operating temperature | ℃ | 0 | 55 | |
Storage temperature | ℃ | -20 | 65 | |
Specifications and dimensions | mm | 343(L)×193(W)×180(H) |
Technical indicators:
1. Output power is optional;
2. Peak operating wavelength can be specified;
3. Output power stability test condition is 25 degrees, after 30 minutes of preheating;
4. Max. power consumption refers to the overall power consumption under extreme working conditions.

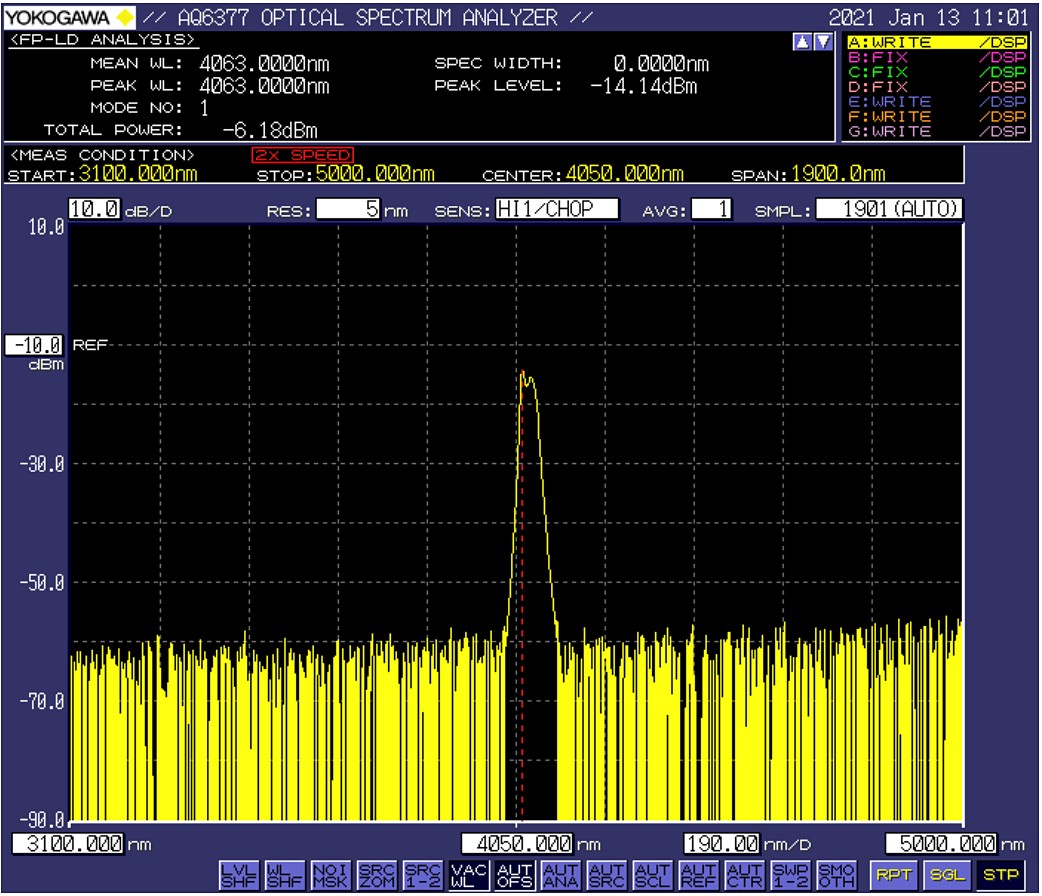

Wavelength spectrum of 4.0um FP-QCL laser

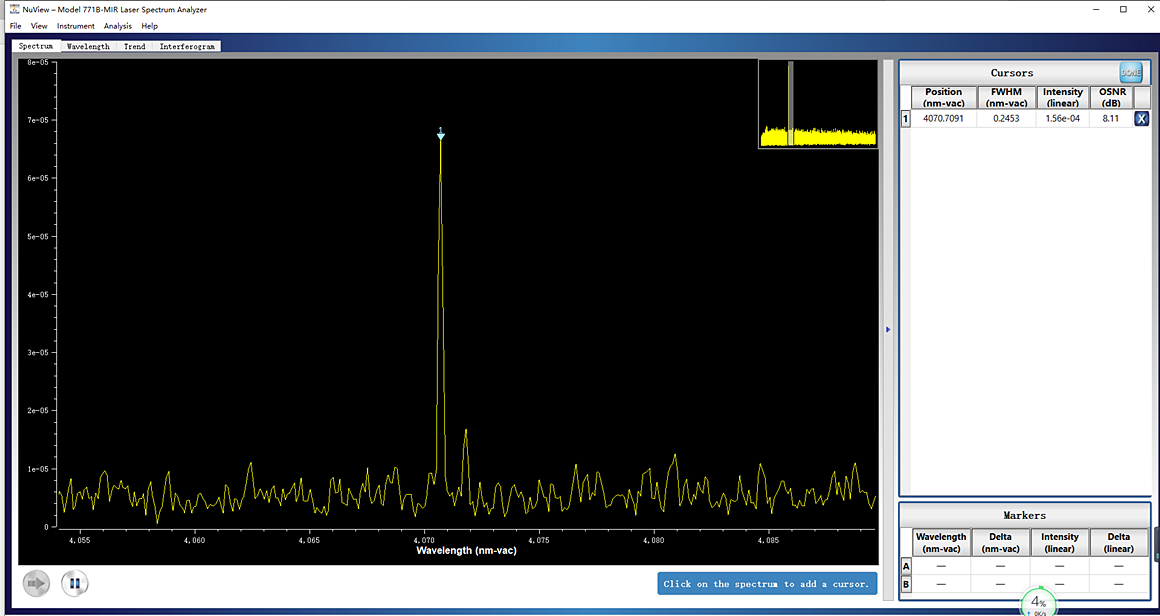

Laser spectrum (CW)

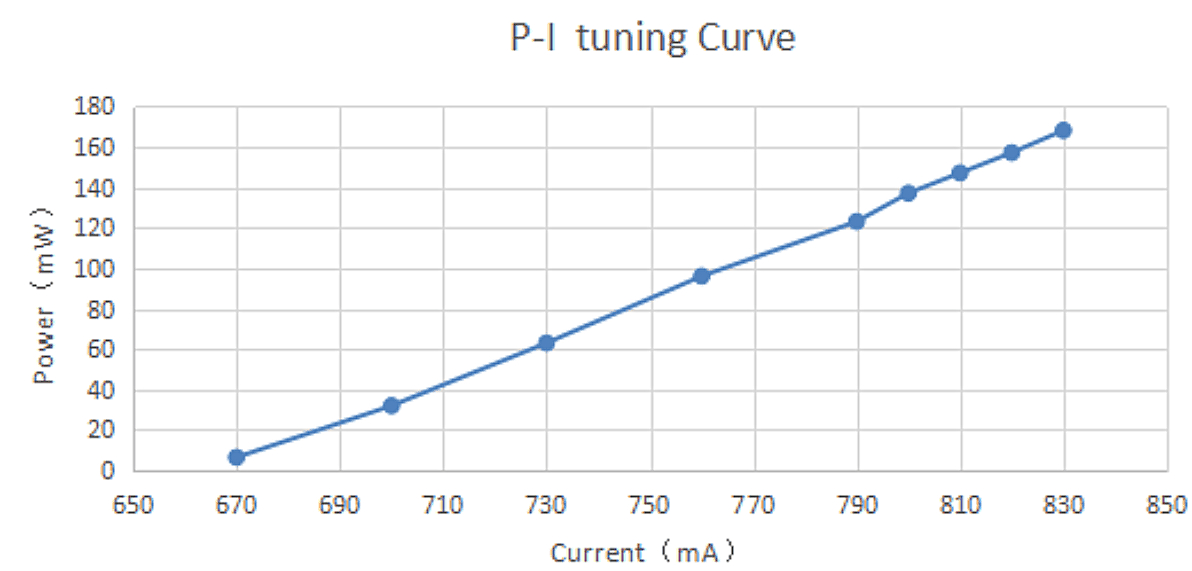

QCL laser characteristic curve (taking 4.0um typical wavelength as an example) output power characteristic curve:

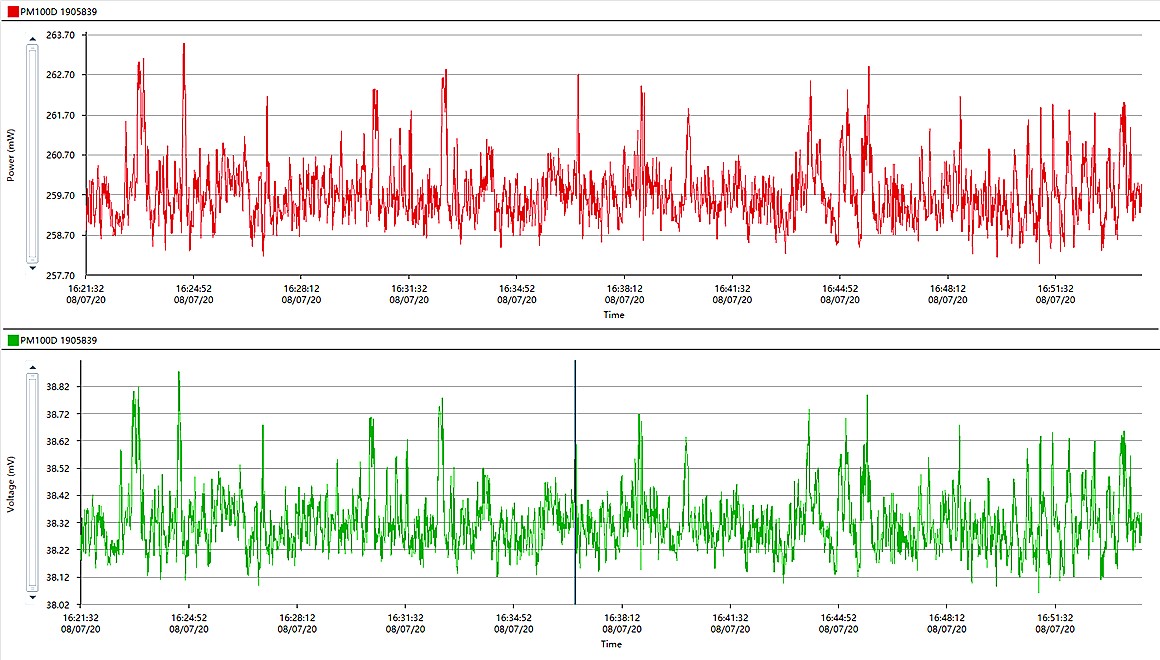

Power stability of 4.0um FP-QCL laser
Spot analysis

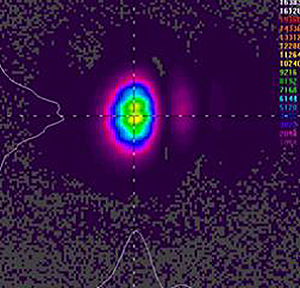

2-D Beam Profile at 1524.0 mm (60.0 in)

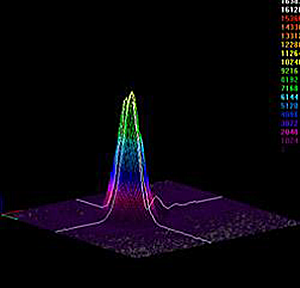

3-D Beam Profile at 1524.0 mm (60.0 in)

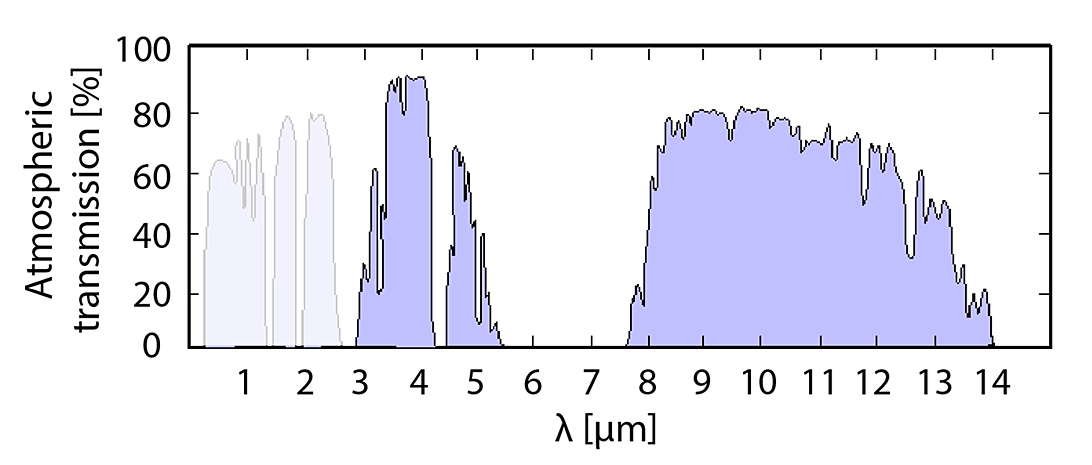

Mid-infrared atmospheric window
Ordering Information
MIR-QCL- W □-☆-△-XX
W□□□□: Wavelength
4000: 4000nm
4600: 4600nm
9000: 9000nm
☆: collimator
1: with
0: without
△: laser type
FP: QCL-FP
DFB: QCL-DFB
XX: output power
001=1mw
010=10mw
050=50mw
400=400mw
1000=1000mw
CW Distributed Feedback (DFB) Quantum Cascade Laser
* Center wavelength measured at T = 15°C under continuous wave
* Center wavelength tuning range: +/- 0.03 um
* Other center wavelengths listed in the table +/- 100 nm We can provide screening services
* Other central wavelengths can be customized, minimum order quantity: 5 pieces
Currently, the wavelengths we can provide are as follows*
Wavelength (μm) | Wave number(cm-1) | Wavelength (μm) | Wave number(cm-1) | Wavelength (μm) | Wave number(cm-1) | Wavelength (μm) | Wave number(cm-1) | Wavelength (μm) |
4.22 | 2370 | > 50 | 6.25 | 1600 | > 100 | 9.38 | 1066 | > 100 |
4.28 | 2336 | > 50 | 7.15 | 1399 | > 100 | 9.47 | 1056 | > 150 |
4.32 | 2315 | > 50 | 7.26 | 1377 | > 100 | 9.49 | 1054 | > 150 |
4.34 | 2304 | > 50 | 7.32 | 1366 | > 100 | 9.52 | 1050 | > 200 |
4.45 | 2247 | > 80 | 7.37 | 1357 | > 100 | 9.56 | 1046 | > 200 |
4.48 | 2232 | > 80 | 7.43 | 1346 | > 150 | 9.63 | 1038 | > 150 |
4.53 | 2208 | > 150 | 7.57 | 1321 | > 150 | 9.66 | 1035 | > 100 |
4.56 | 2193 | > 150 | 7.61 | 1314 | > 150 | 9.68 | 1033 | > 100 |
4.59 | 2179 | > 150 | 7.75 | 1290 | > 300 | 9.72 | 1029 | > 100 |
4.61 | 2169 | > 100 | 7.78 | 1285 | > 300 | 9.95 | 1005 | > 100 |
4.72 | 2119 | > 100 | 7.80 | 1282 | > 300 | 10.24 | 977 | > 150 |
5.18 | 1931 | > 150 | 7.82 | 1279 | > 300 | 10.26 | 975 | > 150 |
5.26 | 1901 | > 150 | 7.85 | 1274 | > 300 | 10.28 | 973 | > 150 |
5.66 | 1767 | > 300 | 8.01 | 1248 | > 100 | 10.32 | 969 | > 150 |
5.73 | 1745 | > 150 | 8.28 | 1208 | > 200 | 10.36 | 965 | > 150 |
6.13 | 1631 | > 150 | 9.02 | 1109 | > 100 | 10.54 | 949 | > 100 |
6.15 | 1626 | > 150 | 9.05 | 1105 | > 100 | 10.60 | 943 | > 80 |
6.18 | 1618 | > 100 | 9.26 | 1080 | > 100 | 10.63 | 941 | > 80 |
Pulsed Distributed Feedback (DFB)
Wavelength (μm) | Wave number(cm-1) | Wavelength (μm) | Wave number(cm-1) | Wavelength (μm) | Wave number(cm-1) | Wavelength (μm) | Wave number(cm-1) | Wavelength (μm) | Wave number(cm-1) | Wavelength (μm) | Wave number(cm-1) |
3.399 | 2942 | 4.453 | 2245 | 5.193 | 1925 | 6.135 | 1629 | 7.788 | 1284 | 9.489 | 1053 |
3.402 | 2939 | 4.457 | 2243 | 5.214 | 1917 | 6.143 | 1627 | 7.795 | 1282 | 9.509 | 1051 |
3.450 | 2898 | 4.461 | 2241 | 5.224 | 1914 | 6.153 | 1625 | 7.809 | 1280 | 9.529 | 1049 |
3.451 | 2897 | 4.465 | 2239 | 5.233 | 1910 | 6.156 | 1624 | 7.819 | 1278 | 9.544 | 1047 |
3.477 | 2876 | 4.471 | 2236 | 5.240 | 1908 | 6.170 | 1620 | 7.831 | 1276 | 9.586 | 1043 |
3.480 | 2873 | 4.475 | 2234 | 5.244 | 1906 | 6.177 | 1618 | 7.857 | 1272 | 9.598 | 1041 |
3.497 | 2859 | 4.479 | 2232 | 5.250 | 1904 | 6.214 | 1609 | 7.869 | 1270 | 9.623 | 1039 |
3.519 | 2841 | 4.483 | 2230 | 5.255 | 1902 | 6.225 | 1606 | 7.887 | 1267 | 9.634 | 1037 |
3.536 | 2828 | 4.485 | 2229 | 5.261 | 1900 | 6.228 | 1605 | 7.906 | 1264 | 9.655 | 1035 |
3.538 | 2826 | 4.489 | 2227 | 5.264 | 1899 | 6.242 | 1602 | 7.933 | 1260 | 9.672 | 1033 |
3.546 | 2820 | 4.492 | 2226 | 5.266 | 1898 | 6.243 | 1601 | 7.986 | 1252 | 9.692 | 1031 |
3.549 | 2817 | 4.498 | 2223 | 5.272 | 1896 | 6.258 | 1597 | 7.998 | 1250 | 9.720 | 1028 |
3.566 | 2804 | 4.501 | 2221 | 5.279 | 1894 | 6.262 | 1596 | 8.016 | 1247 | 9.744 | 1026 |
3.568 | 2802 | 4.506 | 2219 | 5.289 | 1890 | 7.148 | 1398 | 8.026 | 1245 | 9.903 | 1009 |
3.605 | 2773 | 4.509 | 2217 | 5.294 | 1888 | 7.164 | 1395 | 8.054 | 1241 | 9.921 | 1007 |
3.607 | 2772 | 4.513 | 2215 | 5.304 | 1885 | 7.176 | 1393 | 8.101 | 1234 | 9.943 | 1005 |
3.655 | 2735 | 4.517 | 2213 | 5.306 | 1884 | 7.185 | 1391 | 8.163 | 1225 | 9.964 | 1003 |
3.724 | 2685 | 4.521 | 2211 | 5.452 | 1834 | 7.195 | 1389 | 8.220 | 1216 | 9.983 | 1001 |
4.184 | 2390 | 4.525 | 2209 | 5.486 | 1822 | 7.205 | 1387 | 8.242 | 1213 | 10.001 | 999 |
4.185 | 2389 | 4.529 | 2207 | 5.523 | 1810 | 7.217 | 1385 | 8.252 | 1211 | 10.029 | 997 |
4.188 | 2387 | 4.534 | 2205 | 5.557 | 1799 | 7.229 | 1383 | 8.265 | 1209 | 10.042 | 995 |
4.194 | 2384 | 4.538 | 2203 | 5.592 | 1788 | 7.258 | 1377 | 8.282 | 1207 | 10.063 | 993 |
4.197 | 2382 | 4.543 | 2201 | 5.612 | 1781 | 7.268 | 1375 | 8.292 | 1205 | 10.190 | 981 |
4.200 | 2380 | 4.545 | 2200 | 5.626 | 1777 | 7.285 | 1372 | 8.301 | 1204 | 10.206 | 979 |
4.204 | 2378 | 4.550 | 2197 | 5.632 | 1775 | 7.289 | 1371 | 8.326 | 1201 | 10.238 | 976 |
4.207 | 2376 | 4.554 | 2195 | 5.639 | 1773 | 7.327 | 1364 | 8.335 | 1199 | 10.259 | 974 |
4.215 | 2372 | 4.560 | 2192 | 5.646 | 1771 | 7.337 | 1362 | 8.352 | 1197 | 10.289 | 971 |
4.219 | 2370 | 4.565 | 2190 | 5.651 | 1769 | 7.348 | 1360 | 8.386 | 1192 | 10.327 | 968 |
4.221 | 2369 | 4.569 | 2188 | 5.657 | 1767 | 7.354 | 1359 | 8.902 | 1123 | 10.342 | 966 |
4.226 | 2366 | 4.574 | 2186 | 5.665 | 1765 | 7.367 | 1357 | 8.948 | 1117 | 10.377 | 963 |
4.231 | 2363 | 4.577 | 2184 | 5.669 | 1763 | 7.373 | 1356 | 9.004 | 1110 | 10.396 | 961 |
