    • 4.6um low power benchtop DFB-QCL mid-infrared quantum cascade laser 20mW (TDLAS integrated control module)

    QCL4660-4.6um low-power benchtop DFB-QCL mid-infrared quantum cascade laser is a domestically advanced ultra-low-power QCL DFB laser developed by Idealphotonics in the first half of 2018. The tunable range exceeds 100nm, and the output power is greater than 20mw to meet the industrial needs of customers testing gas sensors. Our laser collimated output has stable output power and high temperature and wavelength stability, which is several orders of magnitude higher than the stability of traditional high-power quantum cascade lasers. It provides an excellent test light source for our mid-infrared test customers.

    Product features：Low power consumption, high power、 Narrow line width、 Compact structure、 Intelligent software control、 Built-in FPGA

    Part Number：--

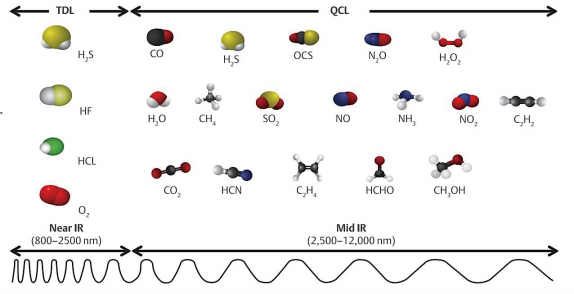

    Application area：TDLAS CO high-precision trace analysis、 Mid-infrared test light source、 Mid-infrared device analysis

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters




    Parameter

    Parameter

    Unit

    Indicators



    Min.

    Typical value

    Max.

    PN#


    QCL4600

    Output power 1

    mW

    20

    -

    40

    Peak operating wavelength 2

    um

    4.5

    4.6

    4.7

    Spectral width (FWHM)

    MHZ

    -

    3

    -

    Output side mode suppression ratio (SMSR)

    dB

    20

    -

    -

    Output isolation 3


    -

    30

    -

    Wavelength temperature coefficient

    Mrad


    0.6


    Wavelength current coefficient

    mm


    0.2


    Output power stability (15 minutes) 4

    nm/K


    ±0.5

    ±1.0

    Output power stability (8 hours) 4

    nm/A


    ±1.0

    ±2.0

    Output power adjustable range

    %

    0

    -

    100

    Output power adjustment mode


    Soft control

    TEC stability

    ℃

    -

    ±0.1

    ±0.2

    TEC operating range

    ℃

    0

    30

    50

    Operating voltage

    VAC

    100

    220

    240

    Electrical power consumption 5

    W

    -

    -

    2

    Operating temperature

    ℃

    0

    -

    55

    Storage temperature

    ℃

    -20

    -

    65

    Specifications and dimensions

    mm

    290(L)×108(W)×168(H) mm

    Technical Specifications

    1. Output power is optional;

    2. Peak operating wavelength can be specified;

    3. Output power stability test condition is 25 degrees, after 30 minutes of preheating;

    4. Maximum power consumption refers to the overall power consumption under extreme working conditions;

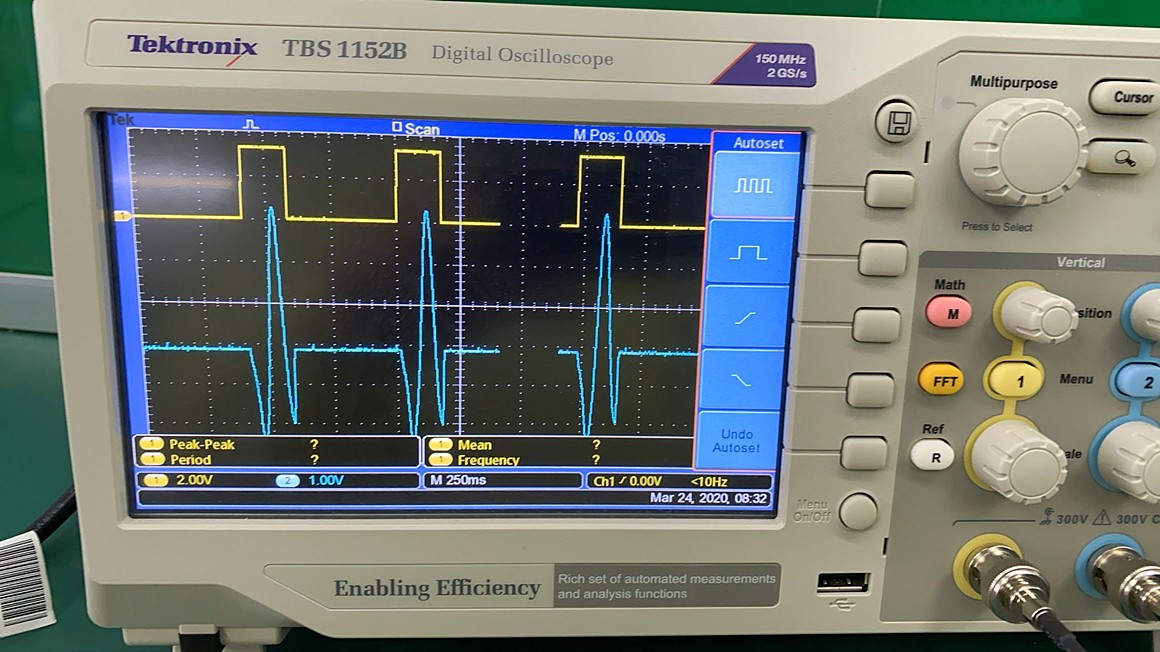

    Modulation signal linearity test (oscilloscope voltage signal effect diagram)






    Algorithm calibration interface

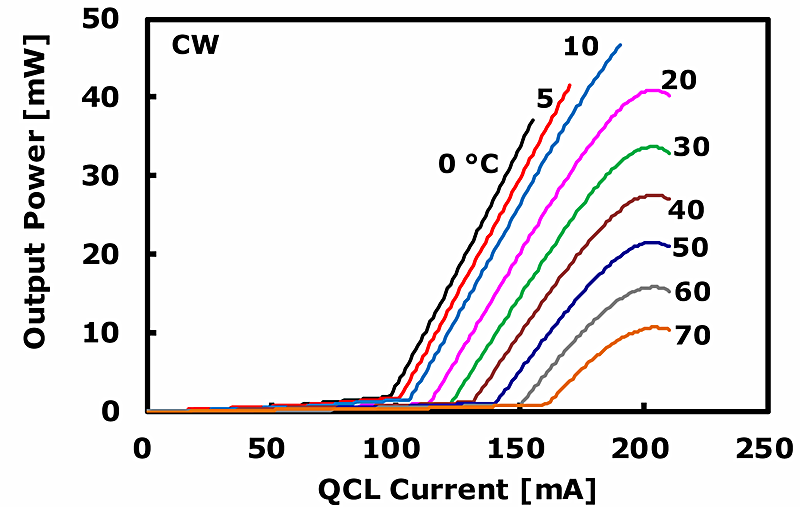

    QCL laser characteristic curve (taking 4.6um typical wavelength as an example) Output power characteristic curve

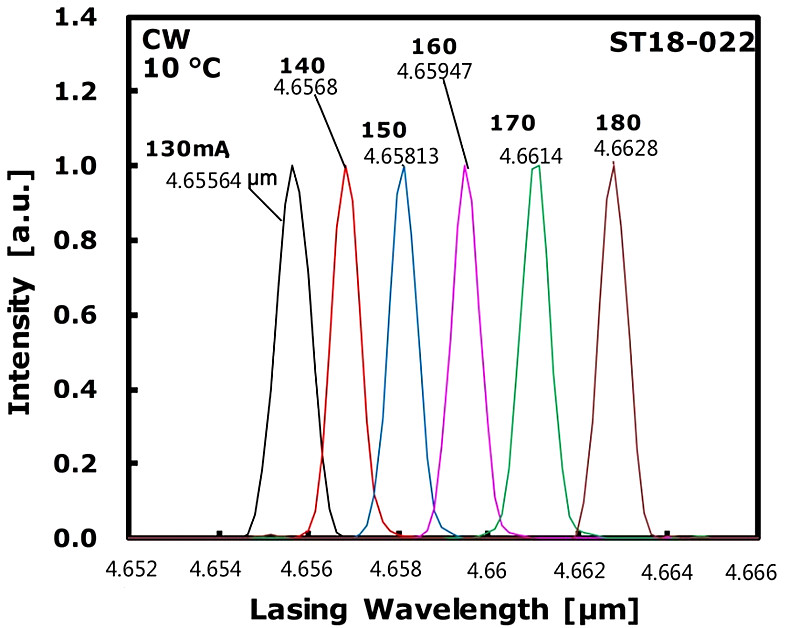

    Laser spectrum (CW) laser working at 10℃

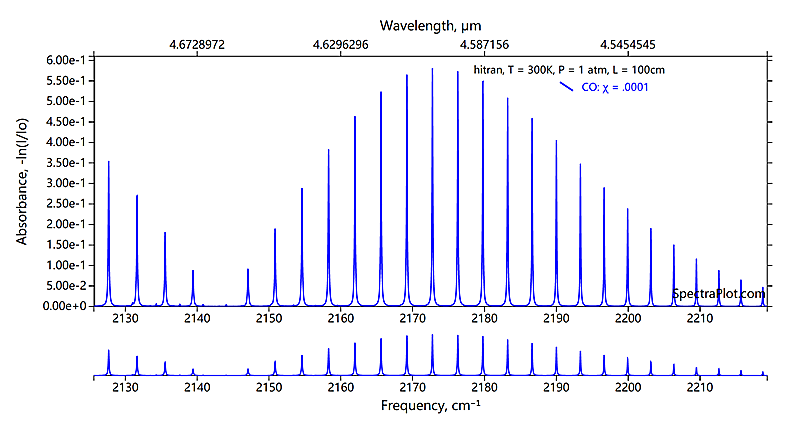

    Absorption spectrum simulation curve

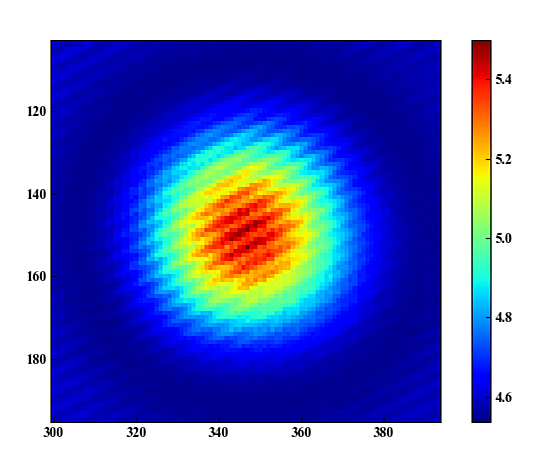

    Quantum cascade laser output spot

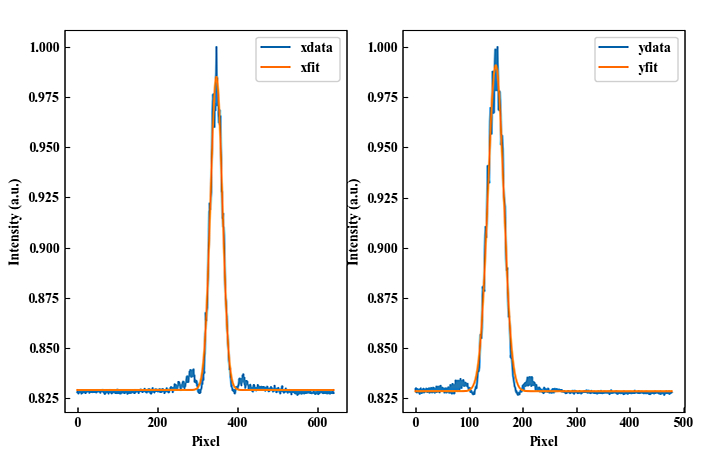

    The pixel size of the test camera is 5 μm, and the Gaussian fitting spot diameter is 320 μm.

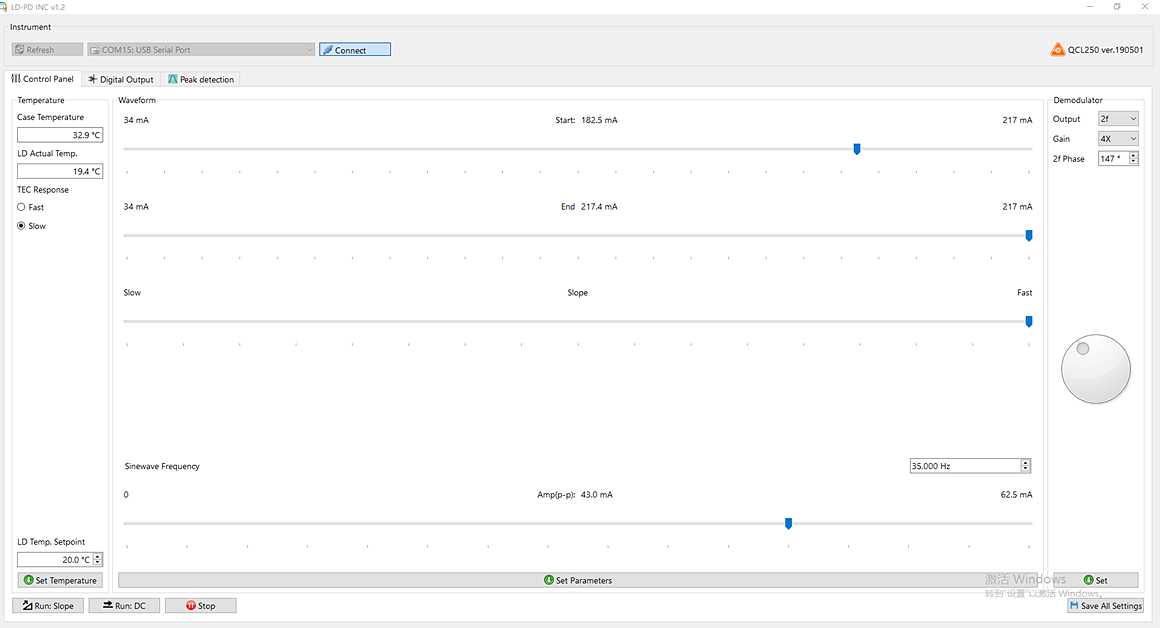

    Control software

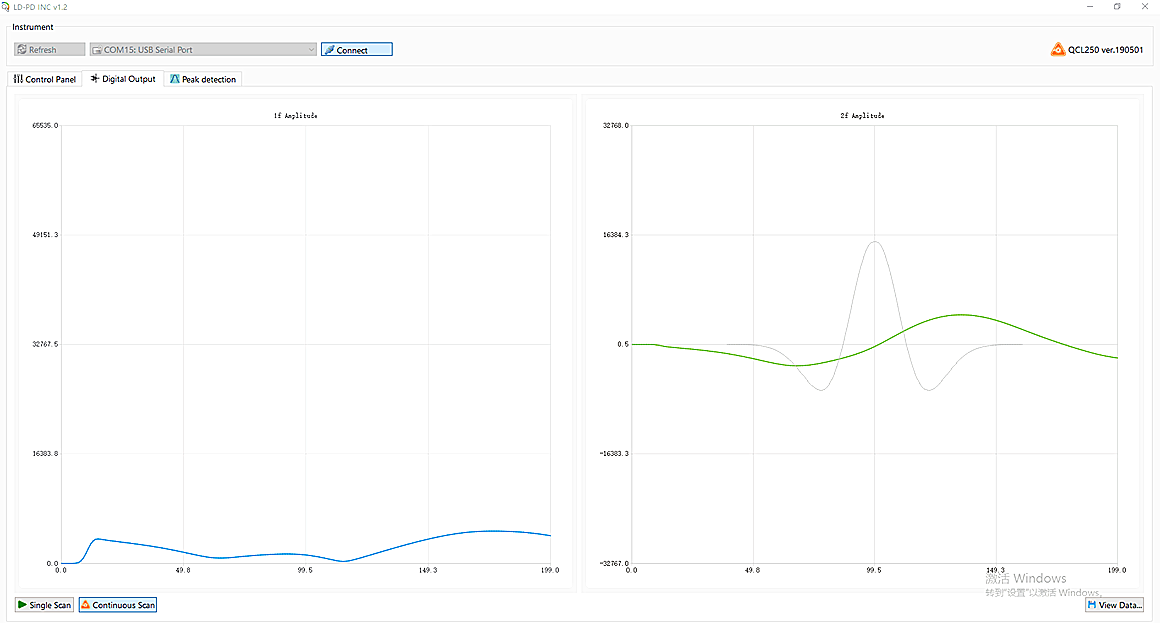

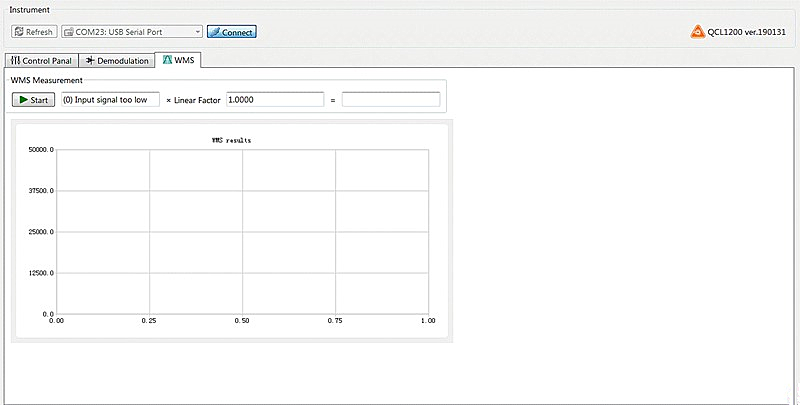

    2F signal acquisition interface:

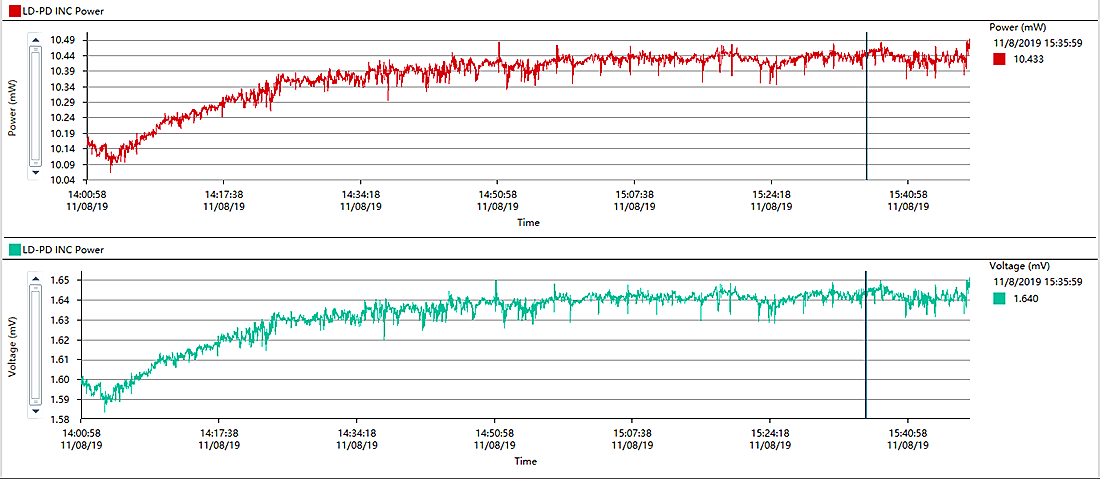

    QCL laser power stability test curve





    Ordering Information

    MIR-QCL- W □-☆-△-XX

    W□□□□: Wavelength

    4600: 4600nm

    5260: 5260nm

    7400: 7400nm

    10530: 10530nm

    ☆: collimator

    1:  with

    0:  without

    △:  laser type

    FP: QCL-FP

    DFB: QCL-DFB

    XX:  output power

    001=1mw

    010=10mw

    020=20mw

    100=100mw

    1000=1000mw



    Optional Configurations

    --
