    • 1x4 Magneto-optic Switch Module

    Idealphotonics Microsecond Series Solid-State 1×4 Magneto-Optic Switch Module uses the Faraday rotation effect to achieve optical path switching. This magneto-optic switch adopts our patented technology—mechanical structure-free, fully solid-state crystal design—eliminating the need for mechanical movement to switch the optical path. The design of the microsecond series optical switch meets most switching requirements, such as extremely high stability and durability, fast response, and continuous high-frequency operation.

    产品特点No moving parts, long lifespan、 Ultra-fast switching speed、 Extremely stable latching mode、 Low power consumption、 One-end fiber output—easy for fiber winding、 Exceptional reliability and stability

    产品货号A80150593

    应用领域Optical path switching、 High-speed protection system、 System monitoring、 Testing and measurement、 Fiber optic sensing systems

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Specs

    Unit

    Parameters

    Notes

    Unidirectional

    Bidirectional

    Wavelength range

    nm

    1525～1565

    Other bandwidth ranges are available.

    Insertion loss

    dB

    1.8 (Typ.); 2.2 (Max.)

    2.0 (Typ.); 2.4 (Max.)

    For high-power models, an additional 1.2dB should be added.

    Polarization dependent loss (PDL)

    dB

    0.2 (Typ.); 0.3(Max.)


    Return loss

    dB

    40

    30


    Crosstalk

    dB

    40

    35


    Polarization dependent loss (PDL)

    ps

    0.2


    Repeatability

    dB

    +/- 0.01


    Durability

    cycles

    > 30 Billions


    Switching speed

    μs

    100 ~ 400


    Operating temperature

    °C

    -5 ~ 70


    Storage temperature

    °C

    -40 ~ 85


    Maximum optical power

    mW

    500

    ***for high-power

    Dimensions (L×W×H)

    mm

    80×55×18


    *.All indicators are connector-free and valid only within the above wavelength, polarization and temperature ranges.

    **.Indicators are subject to change without prior notice.

    ***High power version: 5W continuous laser, 700W nanosecond pulse laser

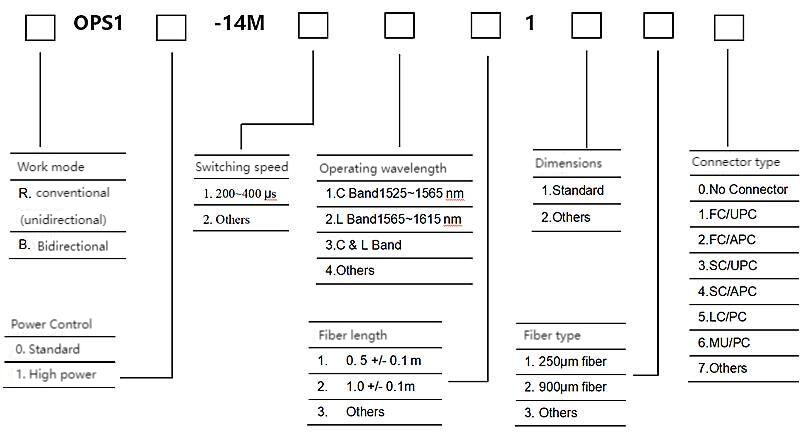

    Ordering info

    Example:ROPS10-14M1121120







    可选配置表
