• 10mm Ge large light sensitive surface detector (BNC interface output)

    Germanium photodiodes are often used to measure optical power in the near-infrared range, especially in cost-sensitive applications or where large area detectors are required. However, compared to similarly sized InGaAs detectors, Germanium detectors have lower shunt resistance and higher dark current, resulting in higher overall noise levels. Therefore, Germanium detectors are well suited for applications where the detection signal is much higher than the noise floor. Idealphotonics Photonics offers the "HS" series of Germanium photodiodes with higher than typical shunt resistances for improved performance.

    产品特点Chip diameters from 1 mm to 25 mm、 Spectral response from 800 nm to 1700 nm、 Multiple window and lens options、 Available optical filters (neutral density, bandpass, etc.)、 Thermoelectric cooling options、 Multiple package types: TO package, BNC options, chip on ceramic base, etc.

    产品货号E80043242

    应用领域Optical power measurement、 Spectroscopy、 Optical testing、 Medical diagnostics、 Fiber optic receivers

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话:16628709332

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Parameter


    10X10mm Germanium Photodiode Performance Specifications

    PN#

    GB10M-XX

    GE-10X10-BNC

    GV10M-XX


    Photoelectric properties@ 23 ºC  ±  2  ºC

    Unit

    RSHUNT      @  10mV  (minimum/typical)


    2/3.5


    IDARK   (Max)

    50

    μA

    capacitance

    90000

    pF

    VREVERSE

    0.5

    V

    Noise equivalent power (typical)

    6

    pW/Hz1/ 2

    Maximum reverse voltage

    1

    V





    Germanium Photodiode

    Photoelectric properties @ 23 ºC ± 2 ºC

    Spectral response range

    800-1700

    nm

    Responsivity @ 850 nm (typical)

    0.30

    A/W

    Responsivity @ 1300 nm (typical)

    0.75

    A/W

    Responsivity @ 1550 nm (typical)

    0.85

    A/W

    Linearity

    10

    dBm

    Storage temperature

    -40 to 125

    ºC

    Operating temperature

    -40 to 85

    ºC

    Maximum Ratings @ 23 °C ± 2 °C

    Reverse current

    20

    mA

    Forward current

    10

    mA

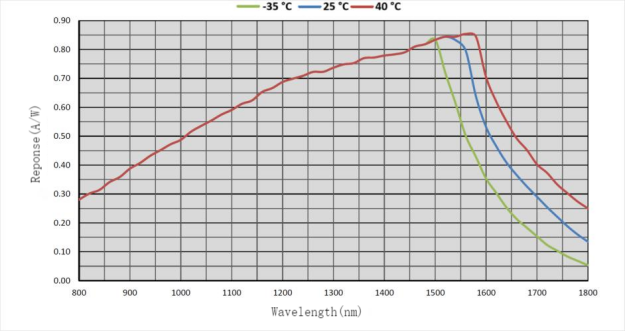

    Wavelength response curves at different temperatures

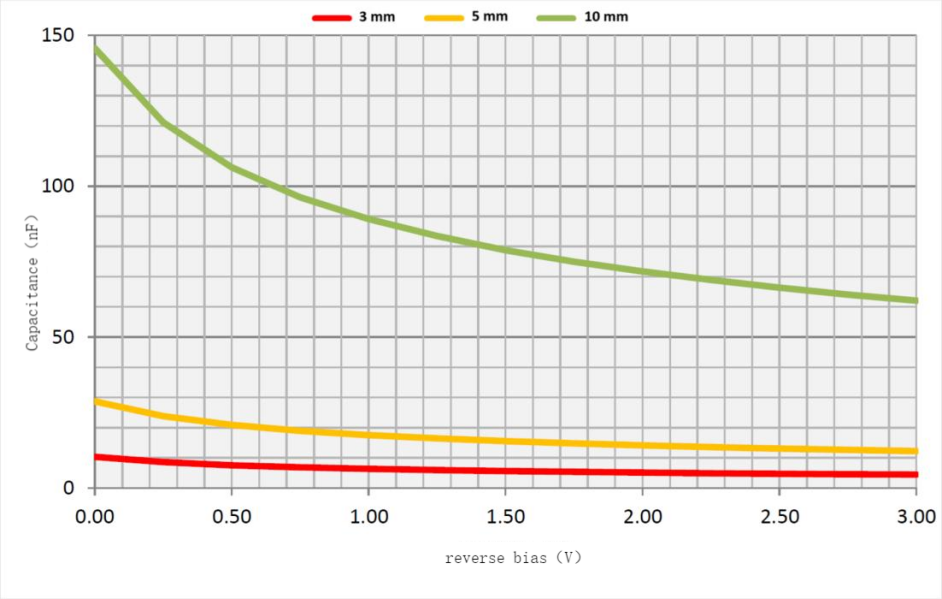

    Capacitor Bias Voltage Curve







    Order Info

    PN#GE-10X10-BNC






    可选配置表
    产品资料
