    • 9.06um low power benchtop DFB-QCL mid-infrared quantum cascade laser 20mW (TDLAS integrated control module)

    QCL9060-9.06um low-power benchtop DFB-QCL mid-infrared quantum cascade laser is a domestically advanced ultra-low-power QCL DFB laser developed by Idealphotonics in the first half of 2018. The tunable range exceeds 100nm, and the output power is greater than 20mw to meet the industrial needs of customers testing gas sensors. Our laser collimated output has stable output power and high temperature and wavelength stability, which is several orders of magnitude higher than the stability of traditional high-power quantum cascade lasers. It provides an excellent test light source for our mid-infrared test customers.

    Product features：Low power consumption, high power、 Narrow line width、 Compact structure、 Intelligent software control、 Built-in FPGA

    Part Number：--

    Application area：TDLAS NH3 high-precision trace analysis、 Mid-infrared test light source、 Mid-infrared device analysis

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters

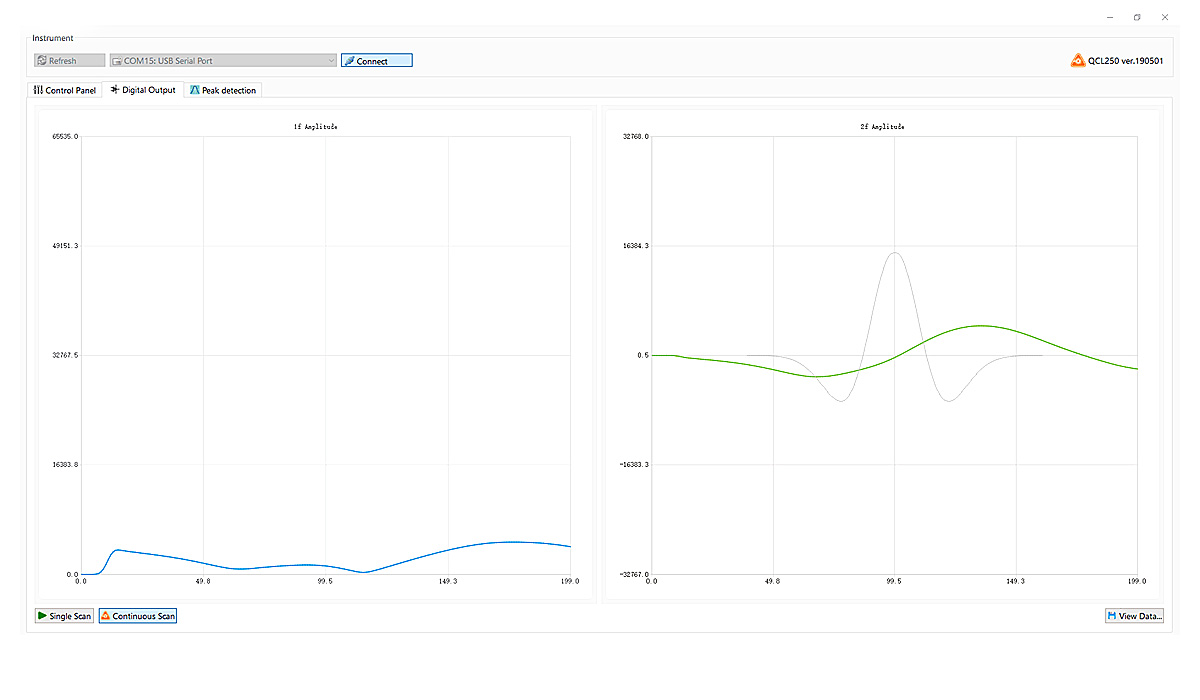

    2F signal acquisition interface

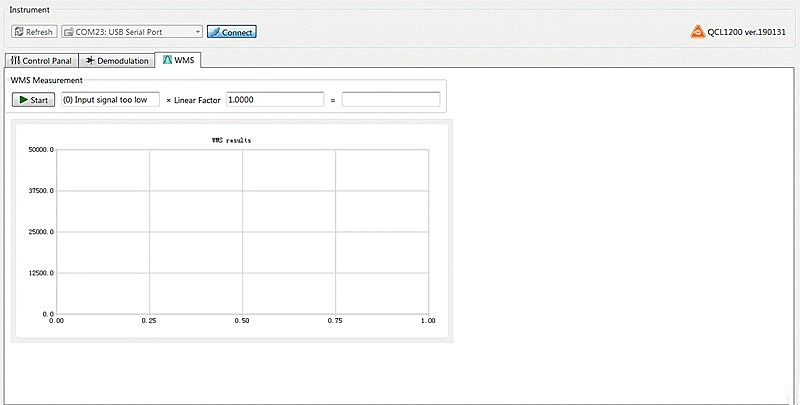

    Algorithm calibration interface

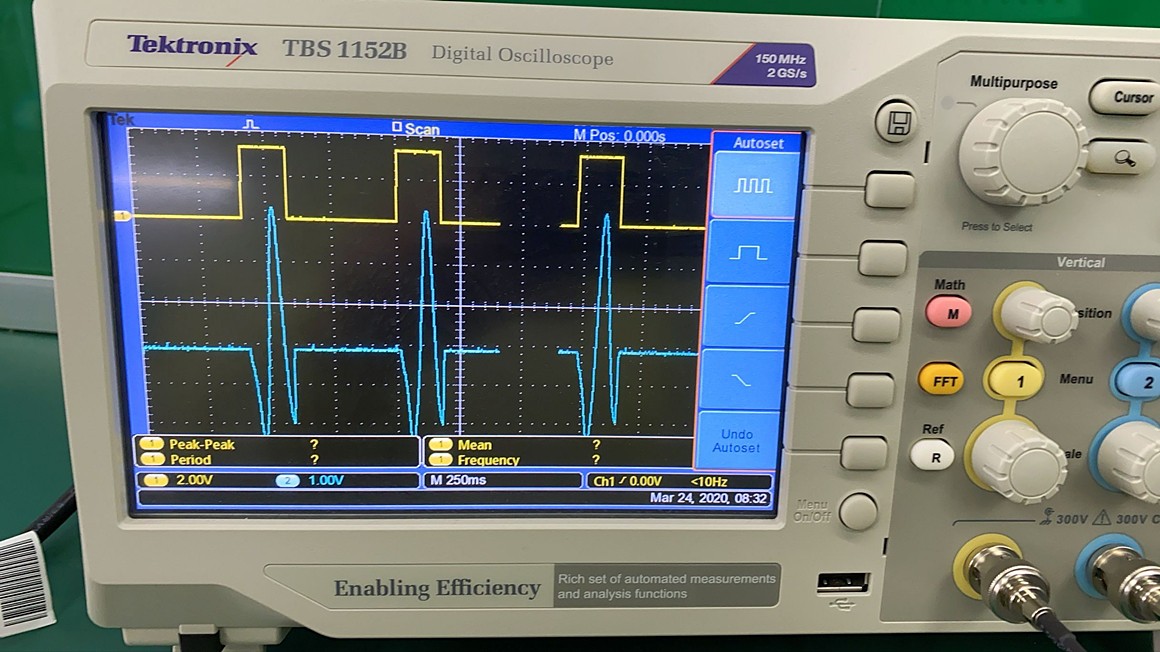

    Modulation signal linearity test (oscilloscope voltage signal effect diagram)




    Parameters

    Parameter

    Unit

    Indicators

    Min.

    Typical value

    Max.

    PN#


    QCL9060

    Output power 1

    mW

    20

    -

    40

    Peak operating wavelength 2

    um

    9

    9.06

    9.16

    Spectral width (FWHM)

    MHZ

    -

    3

    -

    Output side mode suppression ratio (SMSR)

    dB

    20

    -

    -

    Output isolation 3


    -

    30

    -

    Wavelength temperature coefficient

    Mrad


    0.6


    Wavelength current coefficient

    mm


    0.2


    Output power stability (15 minutes) 4

    nm/K


    ±0.5

    ±1.0

    Output power stability (8 hours) 4

    nm/A


    ±1.0

    ±2.0

    Output power adjustable range

    %

    0

    -

    100

    Output power adjustment mode


    Soft control

    TEC stability

    ℃

    -

    ±0.1

    ±0.2

    TEC operating range

    ℃

    0

    30

    50

    Operating voltage

    VAC

    100

    220

    240

    Electrical power consumption 5

    W

    -

    -

    2

    Operating temperature

    ℃

    0

    -

    55

    Storage temperature

    ℃

    -20

    -

    65

    Specifications and dimensions

    mm

    290(L)×108(W)×68(H) benchtop

    Technical Specifications:

    1.Output power is selectable.

    2.Peak operating wavelength is selectable.

    3.Output power stability test conditions are at 25°C, after a 30-minute warm-up.

    4.Maximum power consumption refers to the overall power consumption under extreme operating conditions.





    QCL laser characteristic curve (taking 9.06um typical wavelength as an example) Output power characteristic curve




    Laser spectrum (CW) laser working at 10℃





    Quantum Cascade Laser Output Spot



    Test Camera Pixel size = 5 μm, Gaussian fit spot diameter = 320 μm

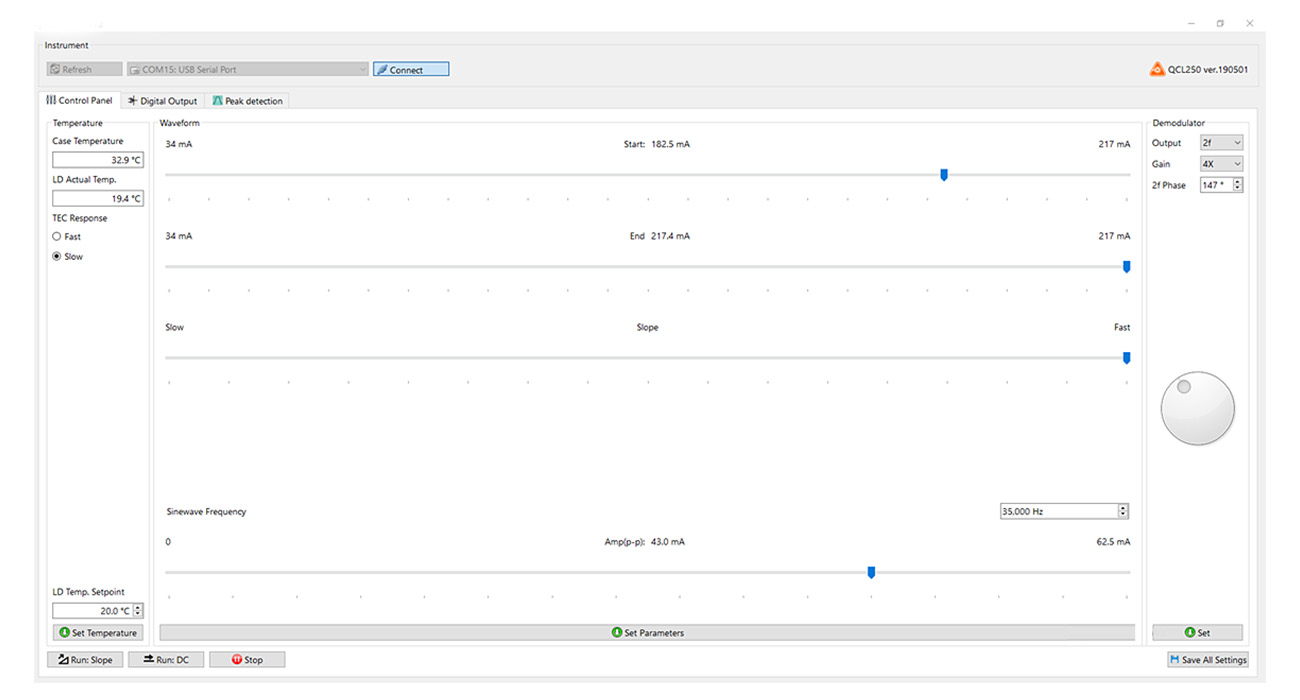

    Control Software






    QCL Laser Power Stability Test Curve




    Ordering info

    MIR-QCL- W□□□□ -☆-△-XX

    W□□□□：Wavelength

    5260: 5260nm

    7400: 7400nm

    9060: 9060nm

    10530: 10530nm

    ☆ ：Collimated Output

    1: With

    0: Without

    △：Laser Type

    FP: QCL-FP

    DFB: QCL-DFB

    XX: Output power

    001=1mw

    010=10mw

    020=20mw

    100=100mw

    1000=1000mw
