• 405nm single mode fiber optic connector/patch cord

    Fiber optic patch cords (also known as fiber optic connectors) are optical cables with connector plugs installed on both ends to achieve active connection of the optical path. Xiaoxiao Photonics' fiber optic patch cords have high-quality, narrow-pin ceramic FC/AFC connectors on both ends. Produced by our equipment, each patch cord is individually tested at the test wavelength listed in the specification label to ensure the extinction ratio and low back reflection (return loss) when connecting fibers. These patch cords are in stock and have high-quality polishing to ensure a typical return loss of more than 60 dB.

    产品特点Typical 60 dB return loss、 Ceramic ferrule, angled 8° (APC)、 Ø3 mm outer protective layer、 Custom patch cords available

    产品货号A80150208

    应用领域Fiber optic communication system、 Fiber optic access network、 Fiber optic data transmission、 Fiber optic CATV、 Local area network (LAN)、 Test equipment、 Fiber optic sensor

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话:16628709332

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Specifications

    PN#

    SM-405-2-1

    FC/APC

    SM-633-2-1-

    FC/APC

    SM-780-2-1-

    FC/APC

    SM-1060-2-1-

    FC/APC

    SM-1310/1550-2-1-FC/APC

    SM-1950-2-1-FC/APC

    Test wavelength

    405 nm

    630nm

    780nm

    1060nm

    1550nm

    1950nm

    Operating wavelength

    400 - 680 nm

    620 - 850 nm

    770 - 1100 nm

    970 - 1550 nm

    1270 - 1625 nm

    1750 - 2100 nm

    Cut-off wavelength

    380 ± 20 nm

    570 ± 50 nm

    720 ± 50nm

    920 ±50 nm

    1200 ±70 nm

    1620 ±80 nm

    Fiber type

    SM 405

    SM630nm

    HI780

    HI1060

    SMF -28e

    SM1950

    Maximum insertion loss

    1.5 dB

    0.5 dB

    0.5 dB

    0.5 dB

    0.5 dB

    0.5 dB

    Mode field diameter

    3.6±0.5 um

    @ 405 nm

    4.0±0.4um

    @ 630 nm

    4.6±0.5

    @ 780 nm

    6.2± 0.3

    @1060 nm

    10.40.5

    @ 1550 nm

    8.6 um

    @ 1950 nm

    Numerical aperture

    0.12

    0.13

    0.14

    0.14

    0.14

    0.14

    Return loss

    60 dB Typical

    Fiber connector

    FC/APC-FC/APC(FC/FC-FC/FC, FC/APC-FC/FC) optional

    Fiber length

    1 meter (length can be customized)

    Loose tube type

    900um/2mm/3mm loose tube optional

    Operating temperature

    0 to 70 ℃

    Storage temperature

    -45 to 85 ℃




    1550nm single mode fiber optic patch cord test

    1. End face test






    2. Insertion loss test

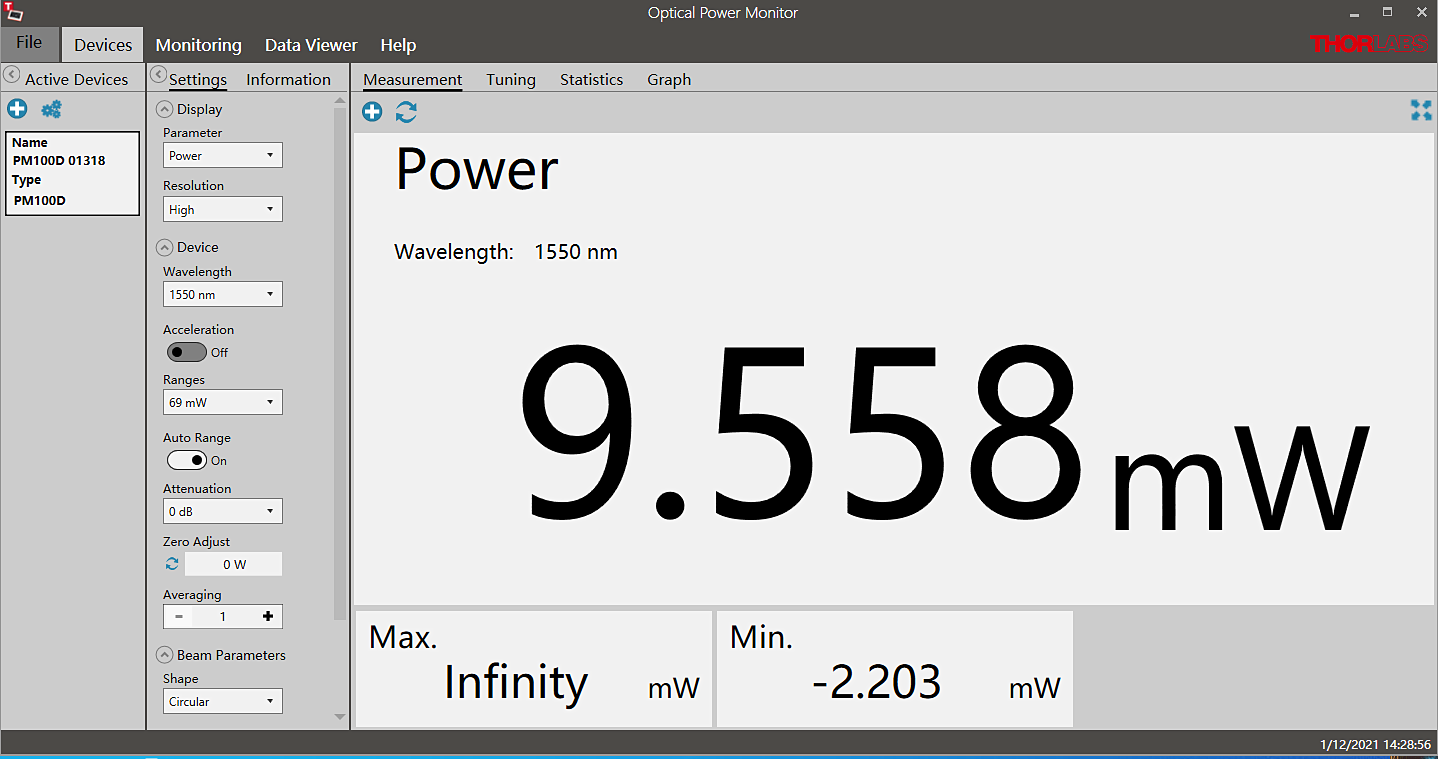

     Laser power before connecting to fiber patch cord

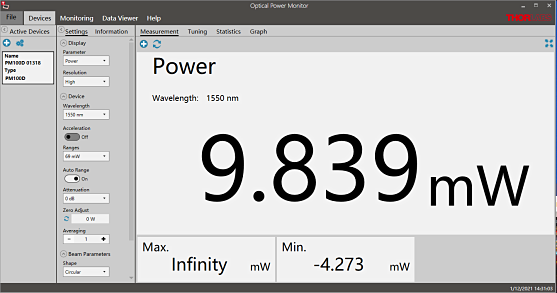

    Test the power after connecting the optical fiber patch cord
