    • C-band benchtop PM Erbium-Ytterbium co-doped fiber amplifier 33dBm

    The C-band high power polarization-maintaining erbium-doped fiber amplifier is based on the principle of stimulated laser amplification of optical signals in erbium-doped fiber. It employs a unique multi-stage optical amplification design and reliable high-power laser heat dissipation technology to achieve high-power polarization-maintaining output for lasers with wavelengths ranging from 1535 to 1565 nm. It offers advantages of high power, high extinction ratio, and low noise, making it suitable for applications in fiber optic communication, lidar, and more.

    产品特点High output power (up to 10 watts)、 High gain coefficient、 High polarization extinction ratio.

    产品货号B80030020

    应用领域Fiber Optic Communication、 Fiber Optic Sensing、 LiDAR

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Technical Parameters

    Optical Specs

    Unit

    Typ.

    Remarks

    Wavelength Range

    nm

    1535~1565

    Other wavelengths can be customized

    Input Power

    dBm

    -6~+10

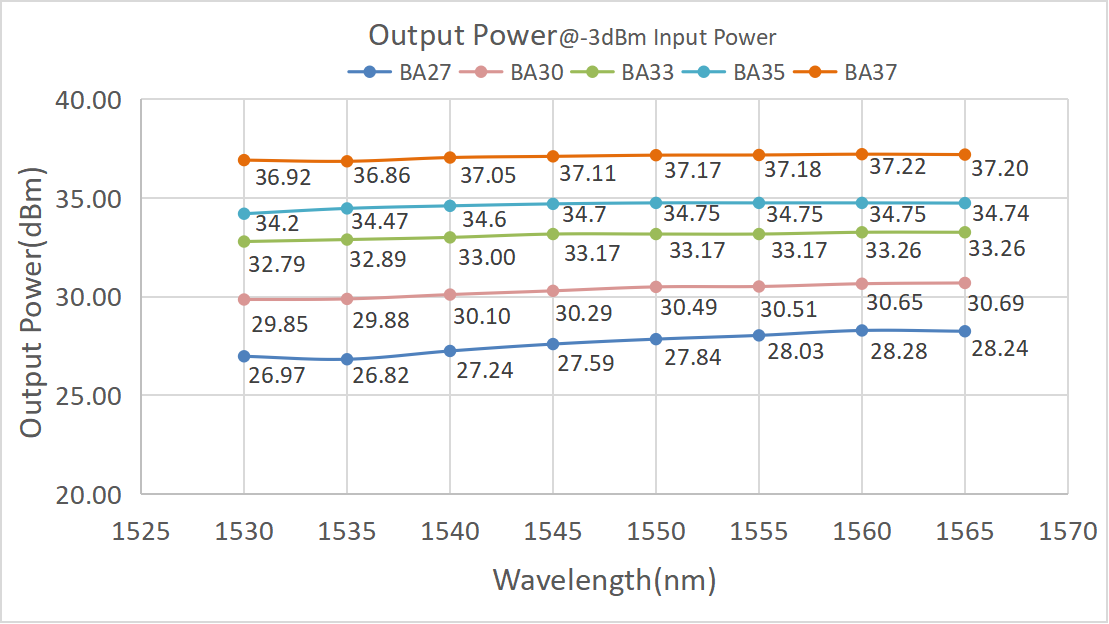

    Saturated Output Power

    dBm

    27/30/33/35/37/40

    @0dBm Input

    Adjustable Output Power Range

    -

    10%~100%


    Noise Figure

    dB

    <6.0

    @0dBm Input

    Polarization Extinction Ratio

    dB

    23(Type)，20(Min)


    Input/Output Isolation

    dB

    >35


    Optical Power Monitoring

    -

    Input/Output optical power monitoring


    Pigtail Type

    -

    PM1550


    Pigtail Connector Type

    -

    FC/APC

    For power testing only

    Operating Mode


    Automatic Current Control (ACC) / Automatic Power Control (APC)




    Electrical and Environmental Parameters

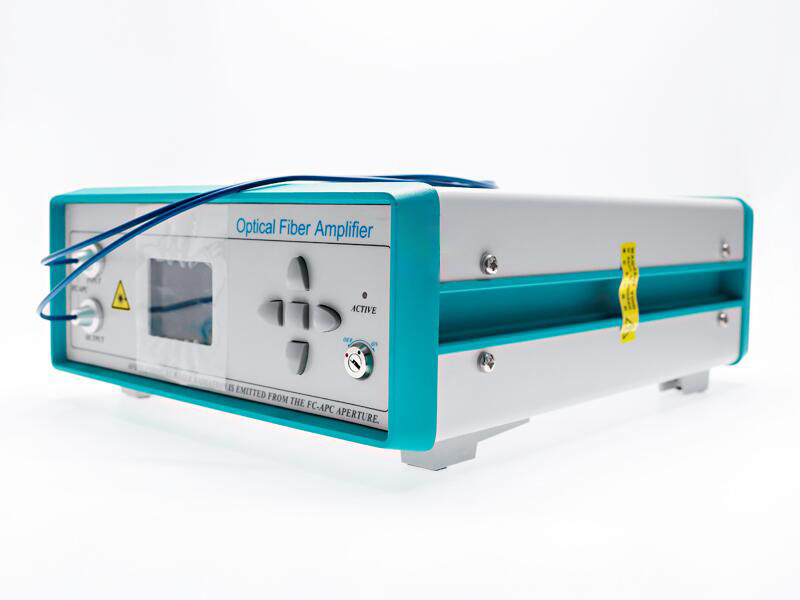

    Benchtop

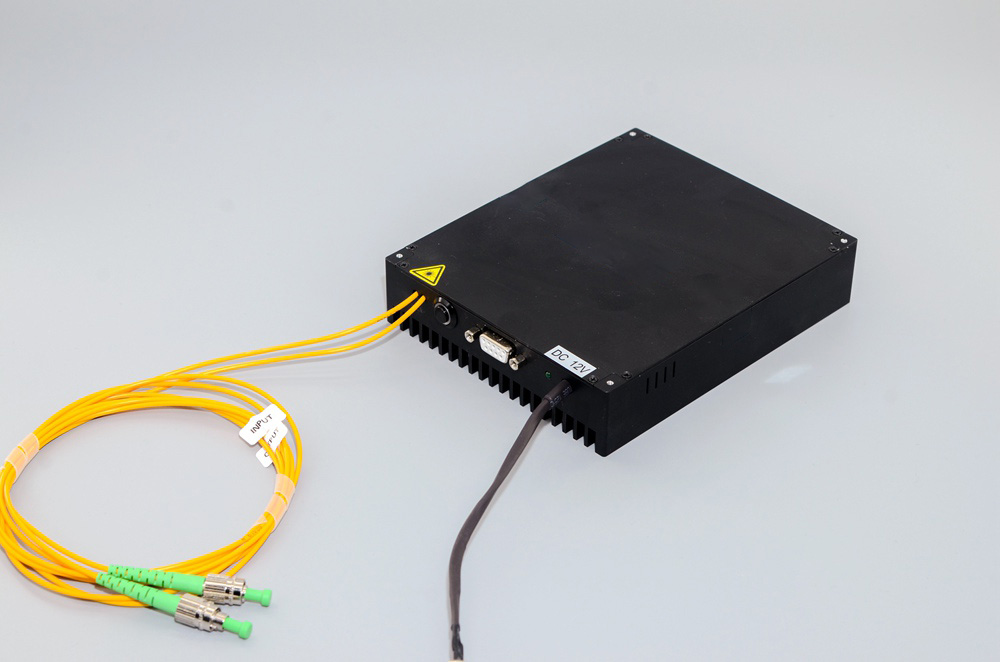

    Module

    Control Mode

    Keypad

    RS232 Serial Communication

    Communication Interface

    Optional

    DB9 Female

    Power Supply

    100~240VAC,<150W

    12V DC,<60W

    Dimensions

    27/30/33 dBm

    260(W)×320(D)×120(H)mm

    125(W)×150(D)×30(H)mm

    35/37/40 dBm

    360(W)×350(D)×120(H)mm

    139(W)×235(D)×70(H)mm

    Operating Temperature Range

    -5~+35°C

    Operating Humidity Range

    0~70%



    PN#/Ordering Info

    EYDFA

    Operating Wavelength

    Amplifier Type

    Output Power(dBm)

    Fiber Type

    Packaging


    C = C-Band

    HP-BA = High Power BA Amplifier

    27/30/33/35/37/40

    PM=Polarization Maintaining Fiber

    M=Module

    B=Benchtop





    Desktop Package: 260(W) × 320(D) × 120(H) mm



    0.5W~3W High Power Module (150 × 125 × 31.5 mm)


    5W~10W High Power Module (139 × 235 × 70 mm)
