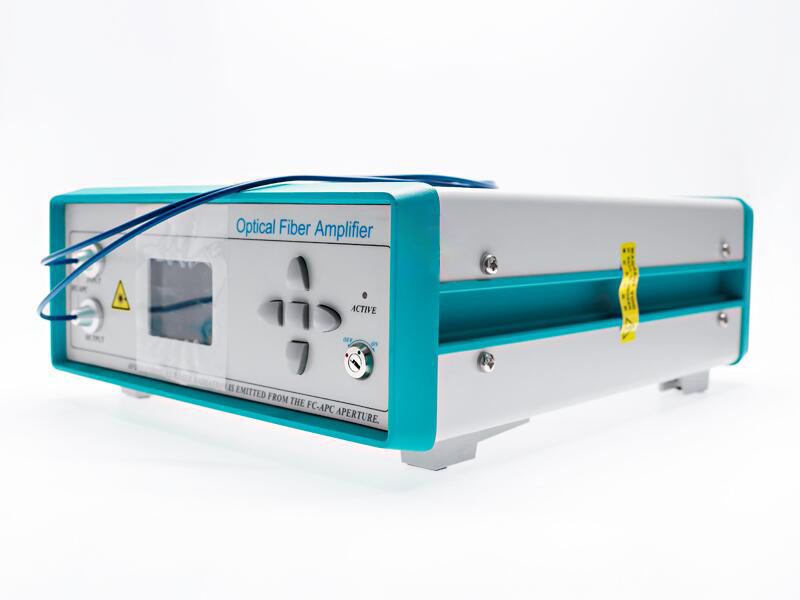

    • C-band Modular Single-mode Erbium-Ytterbium Co-doped Fiber Amplifier, 40dBm

    The high-power Er-Yb co-doped EDFA module uses single-mode lasers and multi-mode pump lasers as energy sources, and performs gain conversion between pump light and signal light through Er-Yb co-doped optical fiber. The maximum output power can reach 40dBm. It has been widely used in cable TV systems and FTTH. The product can work in ACC/APC/AGC mode and adopts highly achievable temperature control technology, so that the product has good thermal performance in a wide temperature range.

    产品特点Maximum Output Power: 10 W、 High Gain Coefficient、 Wide Wavelength Range

    产品货号B80030004

    应用领域Fiber Optic Communication、 Fiber Optic Sensing、 Fiber Laser

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • 1.1.png


    Parameter

    Optical indicators

    Unit

    Typical

    Notes

    Wavelength range

    nm

    1535~1565


    Input power

    dBm

    -6~+10


    Saturated output power

    dBm

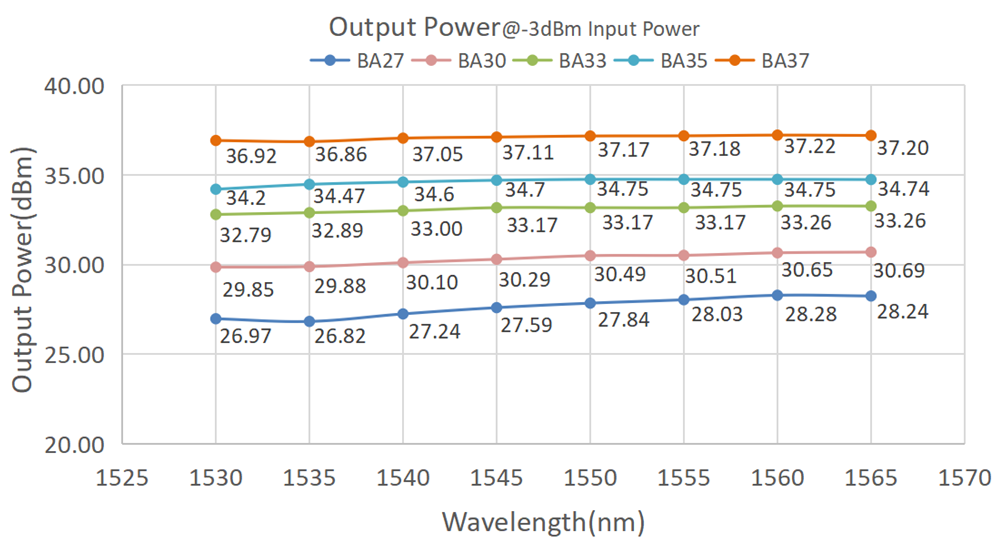

    27/30/33/35/37/40

    @-3dBm input

    Adjustable output power range

    -

    10%~100%


    Noise figure

    dB

    <6.0


    Gain flatness

    dB

    ≤1

    @Different wavelengths are amplified separately

    Polarization-dependent gain

    dB

    <0.5


    Polarization mode dispersion

    ps

    0.5


    Input/output isolation

    dB

    >35


    Optical power monitoring

    -

    Input optical power monitoring, output optical power monitoring


    Pigtail type

    -

    SMF-28


    Pigtail connector type

    -

    FC/APC

    For power testing only

    Working mode


    Automatic current control (ACC)/Automatic power control (APC)




    Electrical and environmental parameters

    benchtop

    Module

    Control mode

    Key

    RS232 Serial communication

    Communication interface

    Optional

    DB9 Female

    Power supply

    100~240VAC,<150W

    12V DC, <120W

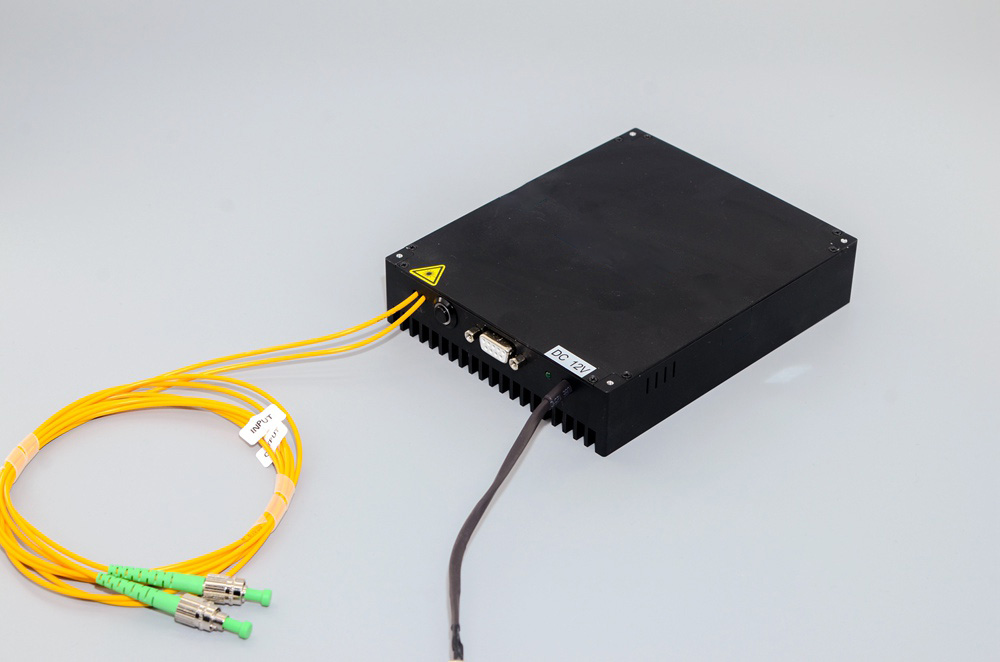

    Dimensions

    Power 27/30/33/35dBm

    260(W)×320(D)×120(H)mm

    125(W)×150(D)×31.5(H)mm

    Power 37/40 dBm

    360(W)×350(D)×120(H)mm

    139(W)×235(D)×70(H)mm*Note

    Operating temperature range

    -5~+35°C

    Operating humidity range

    0~70%

    Note: The 37dBm and 40dBm modules are equipped with built-in cooling fans


    Ordering information/model

    EYDFA

    Operating wavelength

    Amplifier type

    Output type (dBm)

    Fiber type

    Package method


    C=C band

    HP-BA=high power BA amplifier

    27/30/33/35/37/40

    SM=single mode fiber

    M=module

    B=benchtop

    *Note 1:

    ACC mode - automatic current control: the user sets the EDFA pump operating current, and the EDFA automatically locks it to achieve constant pump current. When the input optical power fluctuates, the output power will also fluctuate accordingly. It is applicable to all EDFA models. PA amplifiers only support ACC mode.

    APC mode - automatic power control: the user sets the EDFA signal light output power, the PD automatically monitors and feedbacks the output power, and the EDFA controls and adaptively adjusts the pump to achieve output signal stability. The power adjustment range in APC mode is usually 10%~100%. The advantage of APC mode is that when the input optical power fluctuates, the EDFA will reduce the output power fluctuation as much as possible. It is applicable to power-type and line-type EDFA, but not suitable for low repetition frequency pulse signals.





    benchtop：260(W)×320(D)×120(H)


    0.5W~3W high power module (150×125×31.5mm）



    5W~10W high power module (139×235×70mm)
