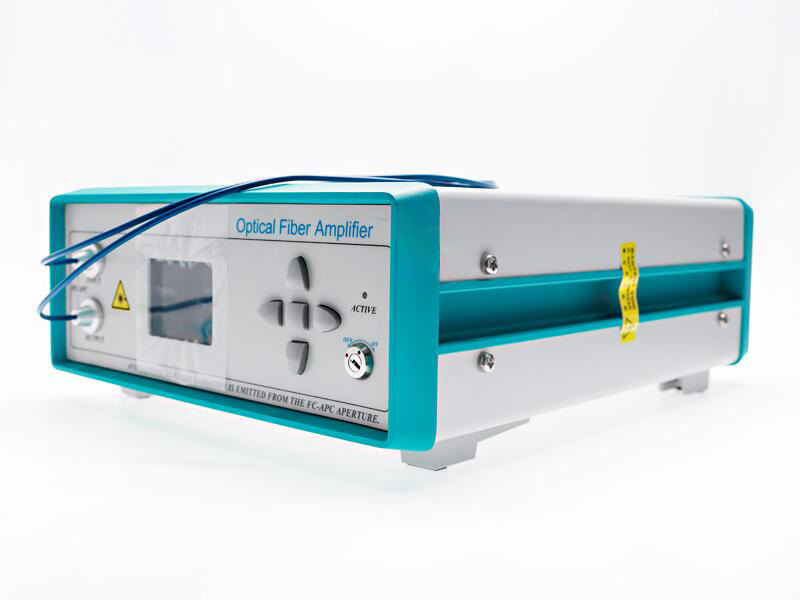

    • C-band Desktop Single-mode Erbium-Ytterbium Co-doped Fiber Amplifier 40dBm

    The High-Power Erbium-Doped Fiber Amplifier (EYDFA-HP) operates based on the principle of stimulated laser amplification of optical signals in erbium-ytterbium co-doped fiber. It utilizes a uniquely designed amplification optical path and a reliable high-power laser heat dissipation process to achieve high-power laser output within the 1535~1565nm wavelength range. With the advantages of high power and low noise, it is suitable for applications such as fiber optic communication and laser radar.

    产品特点Up to 3W power、 High gain coefficient、 Wide wavelength range

    产品货号B80030010

    应用领域Fiber optic communication、 Fiber optic sensing、 Fiber lasers

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • 6340e6a8097b7.png


    Technical Parameters

    Optical Specifications

    Unit

    Typical Value

    Notes

    Wavelength Range

    nm

    1535~1565


    Input Power

    dBm

    -6~+10


    Saturated Output Power

    dBm

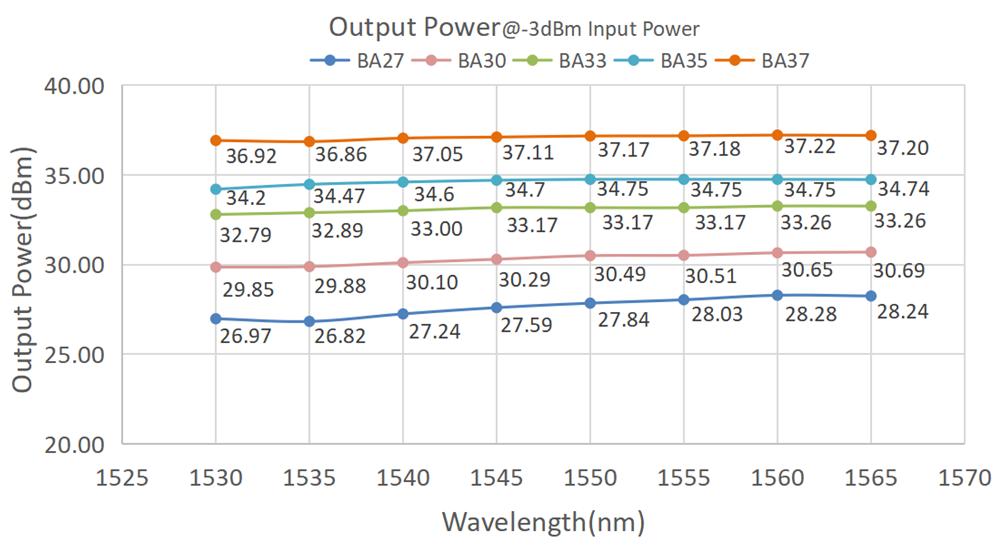

    27/30/33/35/37/40

    @ -3dBm input

    Output Power Adjustable Range

    -

    10%~100%


    Noise Figure

    dB

    <6.0


    Gain Flatness

    dB

    ≤1

    @ different wavelengths amplified separately

    Polarization-Dependent Gain

    dB

    <0.5


    Polarization Mode Dispersion

    ps

    0.5


    Input/Output Isolation

    dB

    >35


    Optical Power Monitoring

    -

    Input power monitoring, output power monitoring


    Pigtail Type

    -

    SMF-28


    Pigtail Connector Type

    -

    FC/APC

    For power testing only

    Operating Mode

    -

    Automatic Current Control (ACC) / Automatic Power Control (APC)




    Electrical and Environmental Parameters

    Benchtop

    Module

    Control Method

    Buttons

    RS232 serial communication

    Communication Interface

    Optional

    DB9 Female

    Power Supply

    100~240VAC, <150W

    12V DC, <120W

    Dimensions

    260(W) × 320(D) × 120(H) mm

    139(W) × 235(D) × 70(H) mm

    Dimensions

    power 27/30/33/35dBm

    260(W)×320(D)×120(H)mm

    125(W)×150(D)×31.5(H)mm

    power 37/40 dBm

    360(W)×350(D)×120(H)mm

    139(W)×235(D)×70(H)mm *note

    Operating Temperature Range

    -5 to +35°C

    Operating Humidity Range

    0 to 70%



    Note: The 37dBm and 40dBm modules have built-in cooling fans.



    Ordering Information / PN#

    EYDFA

    Operating Wavelength

    Amplifier Type

    Output Power (dBm)

    Fiber Type

    Package Type


    C = C-Band

    HP-BA = High-Power BA Amplifier

    27/30/33/35/37/40

    SM = Single-Mode Fiber

    M = Module, B = Benchtop

     *Note 1:

    ACC Mode - Automatic Current Control: The user sets the EDFA pump operating current, which is automatically locked by the EDFA to maintain constant pump current. When input optical power fluctuates, the output power fluctuates accordingly. This mode is suitable for all EDFA models, and PA-type amplifiers only support ACC mode.

    APC Mode - Automatic Power Control: The user sets the signal output power of the EDFA. The PD automatically monitors and feeds back the output power, and the EDFA controls and adaptively adjusts the pump to stabilize the output signal. The power adjustment range in APC mode is typically 10%~100%. The advantage of APC mode is that it minimizes output power fluctuations when input power varies, making it suitable for power-type and line-type EDFAs, though it is not ideal for low repetition frequency pulsed signals. 2023053013_111494857861(1).jpg

    Benchtop 260(W) × 320(D) × 120(H)

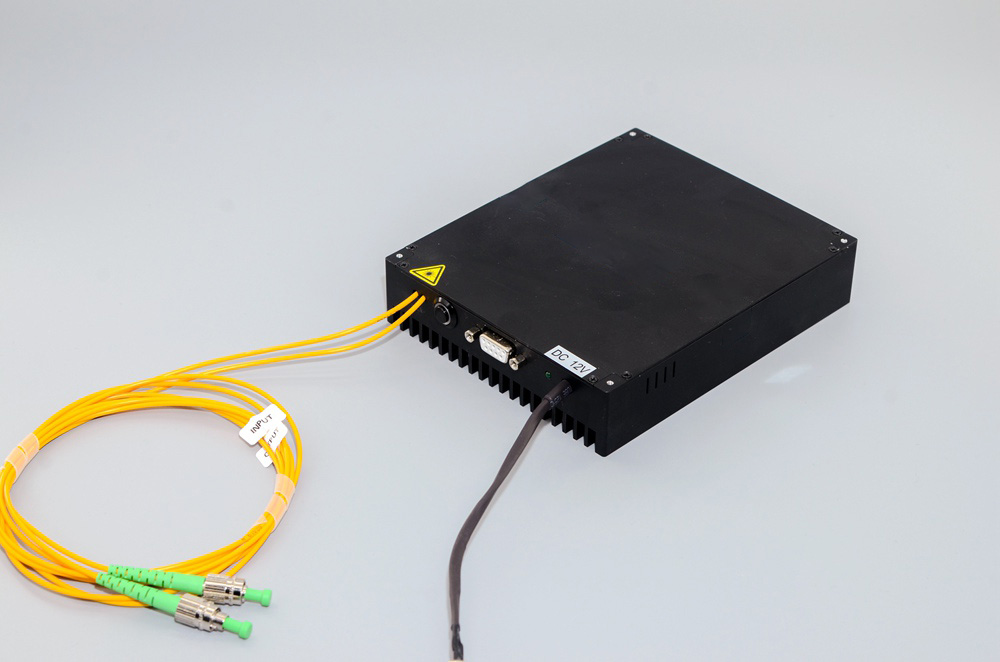

    0.5W~3W high power module (150x125x31.5mm)








    5W~10W high power module (139× 235 × 70 mm)
