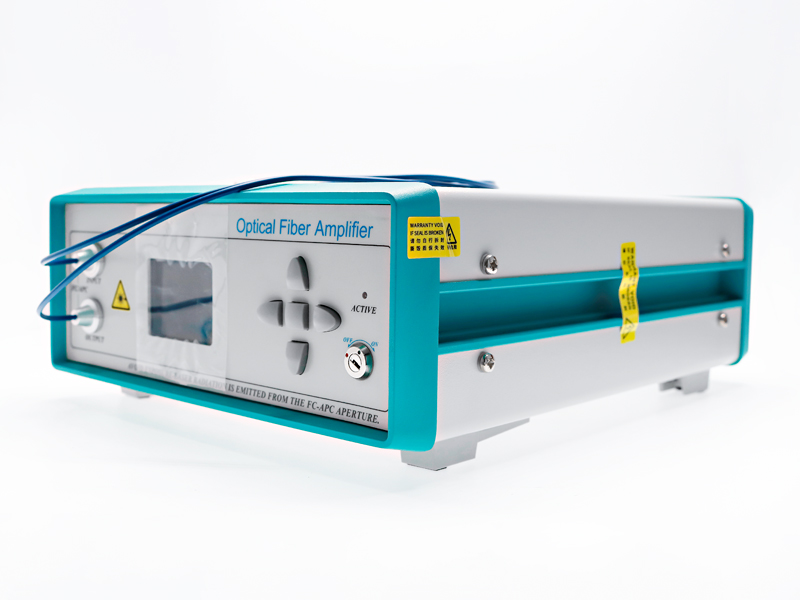

• C-band benchtop SM Erbium-Ytterbium co-doped fiber amplifier 33dBm

    The C-band high power polarization-maintaining erbium-doped fiber amplifier is based on the principle of stimulated laser amplification of optical signals in erbium-doped fiber. It employs a unique multi-stage optical amplification design and reliable high-power laser heat dissipation technology to achieve high-power polarization-maintaining output for lasers with wavelengths ranging from 1535 to 1565 nm. It offers advantages of high power, high extinction ratio, and low noise, making it suitable for applications in fiber optic communication, lidar, and more.

    产品特点High output power (up to 10 watts)、 High gain coefficient、 High polarization extinction ratio.

    产品货号B80030024

    应用领域Fiber Optic Communication、 Fiber Optic Sensing、 LiDAR

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话:18602170419

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • 6340e6a8097b7.png

    Technical Parameters

    Wavelength Range

    nm

    1535~1565

    Other wavelengths can be customized

    Input Power

    dBm

    -6~+10


    Saturated Output Power

    dBm

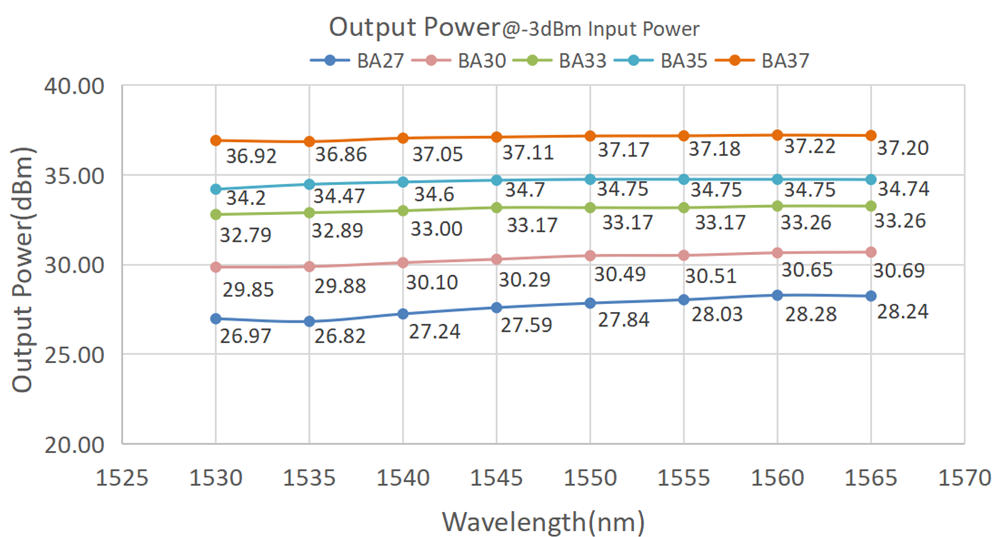

    27/30/33/35/37/40

    @-3dBm input

    Adjustable Output Power Range

    -

    10%~100%


    Noise Figure

    dB

    <6.0


    Gain flatness

    dB

    ≤1

    @Different wavelengths are magnified separately

    Polarization-Dependent Gain

    dB

    <0.5


    Polarization Mode Dispersion

    ps

    0.5


    Input/Output port isolation

    dB

    >35


    Optical Power Monitoring

    -

    Input optical power monitoring, output optical power monitoring


    Pigtail Type

    -

    SMF-28


    Pigtail Connector Type

    -

    FC/APC

    For power testing only

    Operating Mode


    Automatic Current Control (ACC) / Automatic Power Control (APC)





    Electrical and Environmental Parameters

    Benchtop

    Module

    Control Mode

    Keypad

    RS232 Serial Communication

    Communication Interface

    Optional

    DB9 Female

    Power Supply

    100~240VAC,<150W

    12V DC,<60W

    Dimensions

    power  27/30/33 dBm

    260(W)×320(D)×120(H)mm

    125(W)×150(D)×30(H)mm

    power  35/37/40 dBm

    360(W)×350(D)×120(H)mm

    139(W)×235(D)×70(H)mm

    Operating Temperature Range

    -5~+35°C

    Operating Humidity Range

    0~70%




     PN#/Ordering Info

    EYDFA

    Operating Wavelength

    Amplifier Type

    Output Power(dBm)

    Fiber Type

    Packaging


    C = C-Band

    HP-BA = High Power BA Amplifier

    27/30/33/35/37/40

    PM=Polarization Maintaining Fiber

    M=Module

    B=Benchtop

    *Note 1: ACC mode - automatic current control: The EDFA pump operating current is set by the user and automatically locked by the EDFA to achieve a constant pump current. When the input optical power fluctuates, the output power will also fluctuate accordingly, applicable to all EDFA models. PA type amplifiers only support ACC mode.



    APC mode - automatic power control: The user sets the signal light output power of EDFA, PD automatically monitors and feedbacks the output power, EDFA controls and adaptively adjusts the pump to achieve stable output signal, and the power adjustment range in APC mode is usually 10%~100%. The advantage of APC mode is that when the input optical power fluctuates, EDFA will minimize the fluctuation of output power as much as possible, which is suitable for power type and line type EDFAs, but not suitable for low repetition rate pulse signals.



    Desktop Package: 260(W) × 320(D) × 120(H) mm

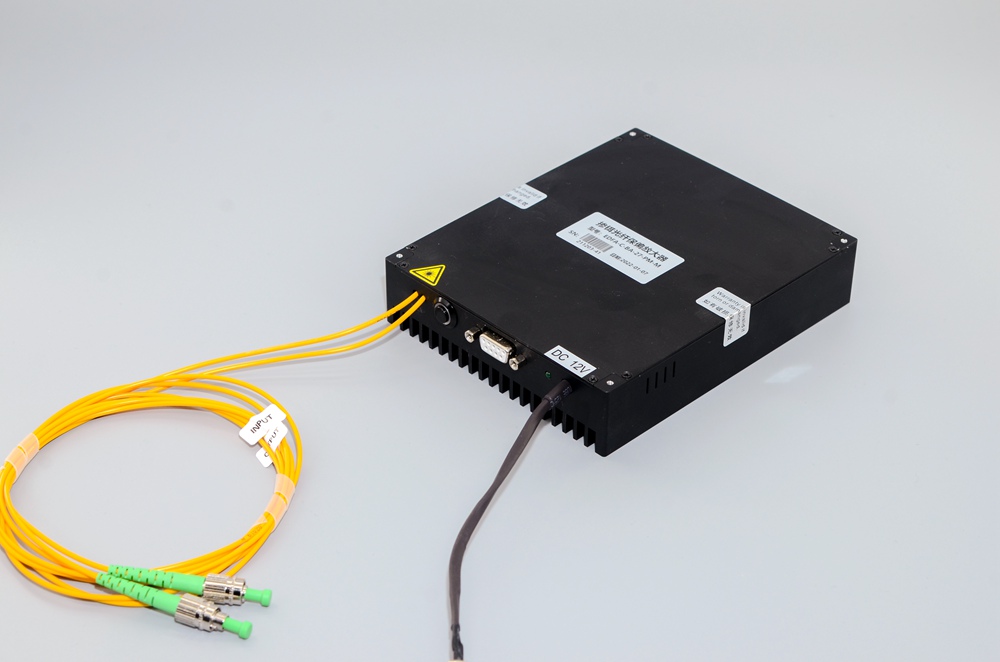

    0.5W~3W High Power Module (150 × 125 × 31.5 mm)

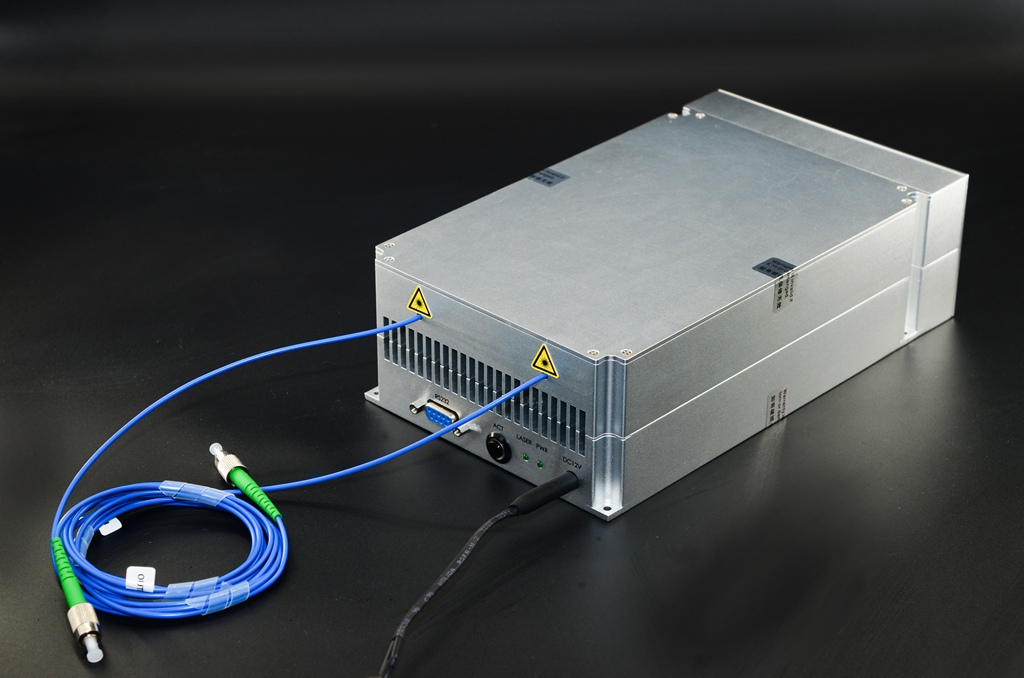

    5W~10W High Power Module (139 × 235 × 70 mm)
