    • InGaAs avalanche photodiode balanced photodetector BAPD-200M-A

    The avalanche photodiode (APD) balanced detection module integrates a low-noise APD detector, low-noise broadband transimpedance amplifier, ultra-low-noise isolated power supply, high-voltage power supply, and APD temperature compensation. The isolated power supply ensures that the output signal is not affected by external power sources. The APD temperature compensation improves the stability of the detection module. The avalanche photodetector features high gain, high sensitivity, high bandwidth, and low noise, making it suitable for applications that require precise and stable optical signal detection.

    Product features：Low Noise、 High Gain、 Built-in high-voltage power supply、 APD temperature compensation、 Compact structure、 Built-in low-noise isolated power supply

    Part Number：--

    Application area：Optical fiber sensing、 Optical fiber communication、 Laser ranging、 Spectral measurement

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters

    Technical Parameters

    PN#

    BAPD-100M-A

    BAPD-200M-A

    BAPD-300M-A

    BAPD-400M-A

    BAPD-500M-A

    BAPD-600M-A

    BAPD-800M-A

    BAPD-1G-A

    BAPD-1.2G-A

    BAPD-1.5G-A

    BAPD-2G-A

    BAPD-2.5G-A

    Unit

    Detector Type

    InGaAs


    Wavelength

    800~1700

    nm

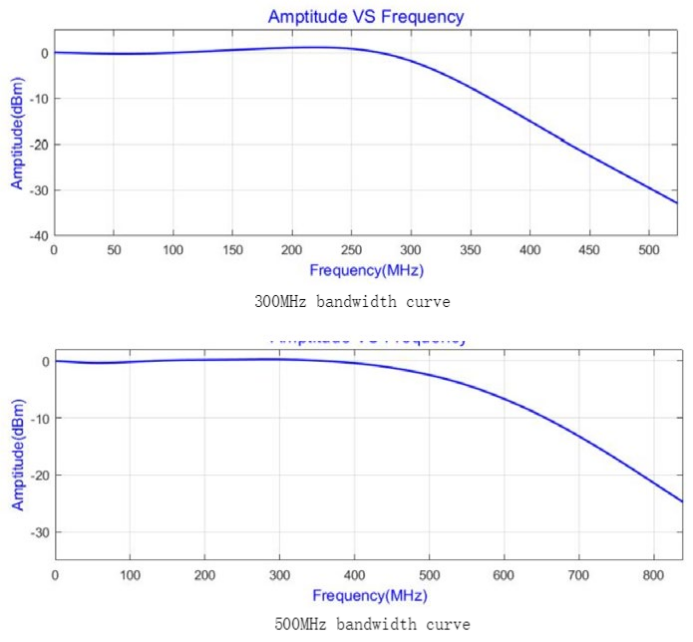

    Bandwidth

    100M

    200M

    300M

    400M

    500M

    600M

    800M

    1G

    1.2G

    1.5G

    1.5G

    2.5G

    Hz

    Detector Responsivity

    9

    9

    9

    9

    9

    9

    9

    9

    9

    9

    9

    9

    A/W@1550nm

    Transimpedance Gain

    300K

    300K

    300K

    100K

    50K

    50K

    300K

    300K

    300K

    200K

    150K

    150K

    V/W

    Saturation Optical Power

    13

    13

    13

    39

    78

    78

    13

    13

    13

    20

    20

    20

    uW

    Output Impedance

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    Ω

    NEP

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    pW/√(Hz)

    Output Coupling Method

    DC/AC

    DC/AC

    DC/AC

    DC/AC

    DC

    AC

    AC

    AC

    AC

    AC

    AC

    AC


    Supply Voltage

    5

    5

    5

    5

    5

    5

    12

    12

    12

    12

    12

    12

    V

    Supply Current

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    A

    Optical Input

    FC/APC(Free space optical input optional)


    RF Output

    SMA


    Dimensions

    80*90*25

    mm
