    • InGaAs avalanche photodiode balanced photodetector BAPD-100M-A

    The avalanche photodiode (APD) balanced detection module integrates a low-noise APD detector, low-noise broadband transimpedance amplifier, ultra-low-noise isolated power supply, high-voltage power supply, and APD temperature compensation. The isolated power supply ensures that the output signal is not affected by external power sources. The APD temperature compensation improves the stability of the detection module. The avalanche photodetector features high gain, high sensitivity, high bandwidth, and low noise, making it suitable for applications that require precise and stable optical signal detection.

    产品特点Low Noise、 High Gain、 Built-in high-voltage power supply、 APD temperature compensation、 Compact structure、 Built-in low-noise isolated power supply

    产品货号E80040281

    应用领域Optical fiber sensing、 Optical fiber communication、 Laser ranging、 Spectral measurement

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Technical Parameters

    PN#

    BAPD-100M-A

    BAPD-200M-A

    BAPD-300M-A

    BAPD-400M-A

    BAPD-500M-A

    BAPD-600M-A

    BAPD-800M-A

    BAPD-1G-A

    BAPD-1.2G-A

    BAPD-1.5G-A

    BAPD-2G-A

    BAPD-2.5G-A

    Unit

    Detector Type

    InGaAs


    Wavelength

    800~1700

    nm

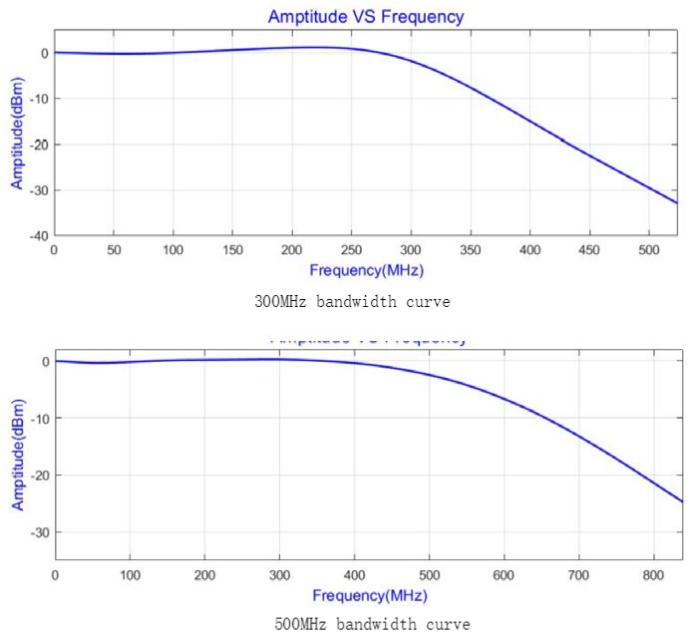

    Bandwidth

    100M

    200M

    300M

    400M

    500M

    600M

    800M

    1G

    1.2G

    1.5G

    1.5G

    2.5G

    Hz

    Detector Responsivity

    9

    9

    9

    9

    9

    9

    9

    9

    9

    9

    9

    9

    A/W@1550nm

    Transimpedance Gain

    300K

    300K

    300K

    100K

    50K

    50K

    300K

    300K

    300K

    200K

    150K

    150K

    V/W

    Saturation Optical Power

    13

    13

    13

    39

    78

    78

    13

    13

    13

    20

    20

    20

    uW

    Output Impedance

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    Ω

    NEP

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    0.46

    pW/√(Hz)

    Output Coupling Method

    DC/AC

    DC/AC

    DC/AC

    DC/AC

    DC

    AC

    AC

    AC

    AC

    AC

    AC

    AC


    Supply Voltage

    5

    5

    5

    5

    5

    5

    12

    12

    12

    12

    12

    12

    V

    Supply Current

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    A

    Optical Input

    FC/APC(Free space optical input optional)


    RF Output

    SMA


    Dimensions

    80*90*25

    mm
