    • 1550.92nm PM polarization-maintaining bandpass filter (passband bandwidth 0.3nm stopband bandwidth 1.4nm)

    PM Band Pass Filter Idealphotonics' fiber filters use a special fiber structure to select or filter out specific wavelengths of light from different wavelengths. We can provide filter devices with different optical power versions according to user needs, which can be used in dense wavelength division multiplexing fiber communications, frequency division multiplexing fiber communications, spectrum testing, fiber sensors, fiber lasers and fiber amplifiers. If you need to customize the center wavelength, operating temperature or specific working bandwidth, please contact us for more information.

    产品特点High isolation、 Low insertion loss (1.2dB)、 High return loss (50dB)、 Excellent environmental stability、 High power handling capability

    产品货号A80150747

    应用领域Band Erbium-Doped Fiber Amplifier、 High -density wavelength division multiplexing system、 Fiber laser、 Research

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • General parameters

    Parameter

    Unit

    Index

    Nominal center wavelength

    nm

    ITU Grid

    Max. Insertion loss over CWL+/-0.11nm

    dB

    1.2

    Min. passband bandwidth @0.5dB

    nm

    0.3

    Max. Stopband Bandwidth @25dB

    nm

    1.4

    Extinction Ratio (ER) at 23℃

    dB

    20

    Min. Return Loss

    dB

    50

    Fiber Type

    -

    PM 1550 panda fiber

    Max. tensile load

    N

    5

    Max. optical power (CW)

    mW

    500

    Operating temperature

    ℃

    -5 to 70

    Storage temperature

    ℃

    -40 to +85

    Remark :

    *The above specifications apply to devices without connectors.

    *For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

    *PM fiber and connector keys are aligned with the slow axis.

    *The material must be RoHS compliant.

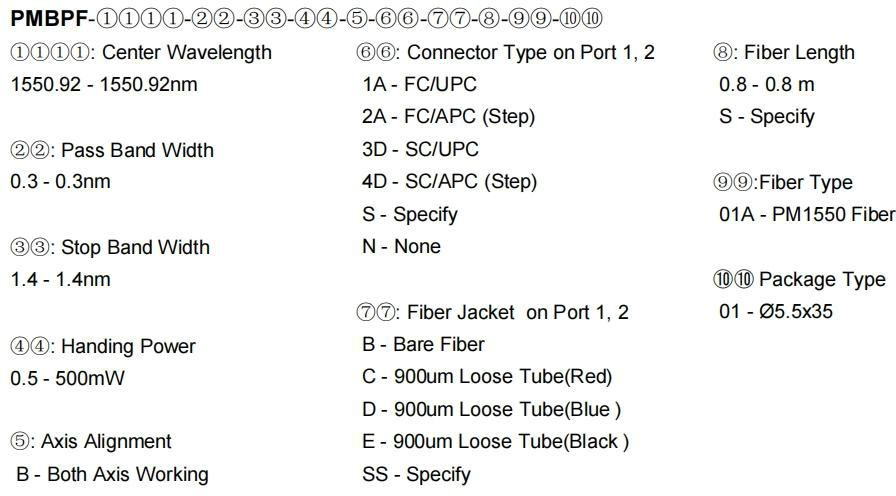

    Model Description
