    • InGaAs weak light coherent reception module 800-1700nm AC-1.6G

    IdealPhotonics has developed a high-speed, low-noise analog coherent receiving module for optical coherent detection applications. This SVDC power coherent receiver module integrates a high-speed, low-noise analog optoelectronic balanced detector and a high-quality fiber coupler. During the manufacturing process, the splitter ratio and length of the coupler are strictly controlled to further enhance the common-mode rejection ratio. Building on the coherent reception, to further improve the optical signal-to-noise ratio (SNR), the high SNR coherent receiving module integrates a low-noise small-signal fiber amplifier to amplify weak backscattered light signals. This module is suitable for fiber optic sensing, lidar, wind measurement radar, and other fields.

    产品特点High bandwidth、 High gain、 Low noise、 Built-in low-noise isolation power supply

    产品货号E80040303

    应用领域Fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Technical Parameters

    PN#

    CRM-100M-A

    CRM-200M-A

    CRM-350M-A

    CRM-800M-A

    CRM-1.6G-A

    Unit

    Wavelength

    800~1700

    800~1700

    800~1700

    800~1700

    800~1700

    nm

    Bandwidth

    DC-100M

    DC-200M

    DC-350M

    AC-800M

    AC-1.6G

    HZ

    Detector Responsivity

    0.95@1550nm

    0.95@1550nm

    0.95@1550nm

    0.95@1550nm

    0.95@1550nm

    A/W

    Transimpedance Gain

    30k(60k)

    30k(60k)

    30k

    30k

    30k

    V/A

    Optical Input

    Local

    ＜5

    ＜5

    ＜5

    ＜5

    ＜5

    mW

    Signal

    200

    300

    300

    300

    300

    uW

    Power Supply Voltage

    5

    5

    5

    12

    12

    V

    Power Supply Current

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    A

    Fiber Type

    SMF-28(PM optional）

    Optical Input

    FC/APC

    RF Output

    SMA

    Dimensions

    80*80*30mm

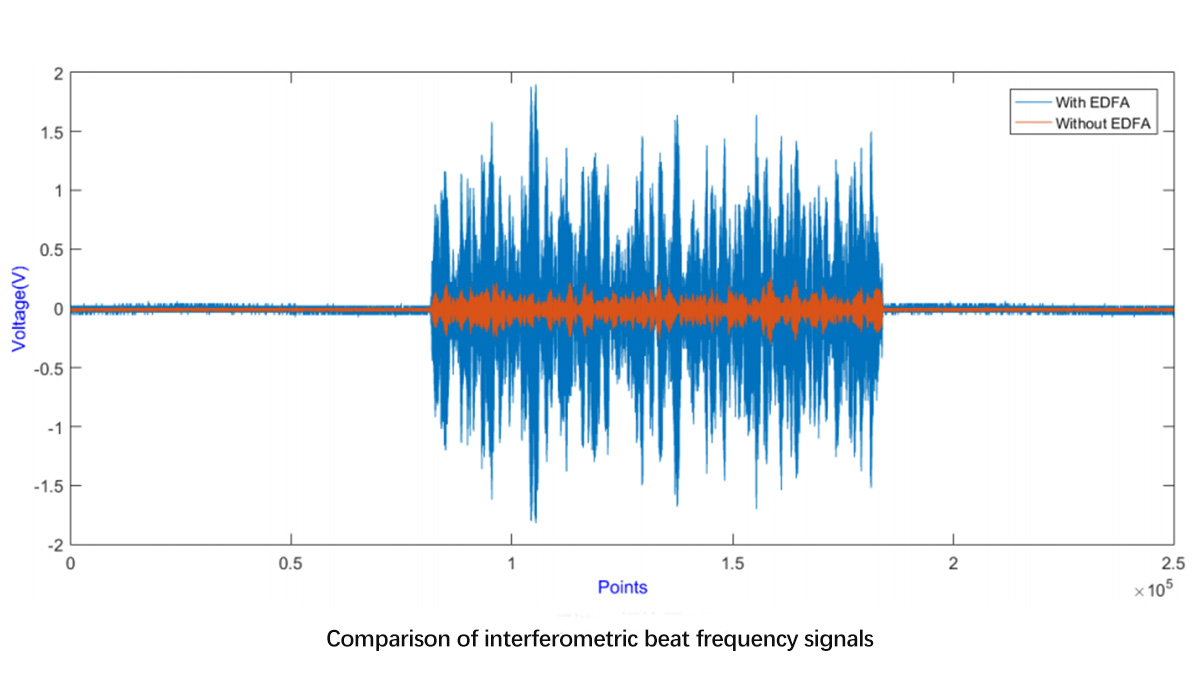

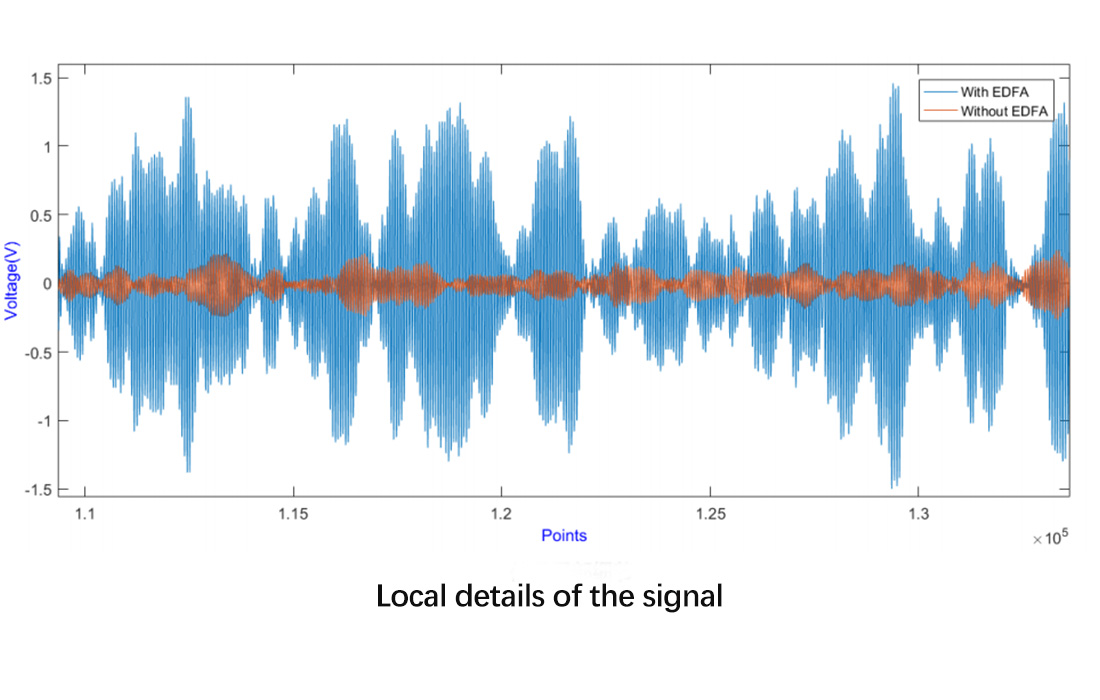

    Related test data

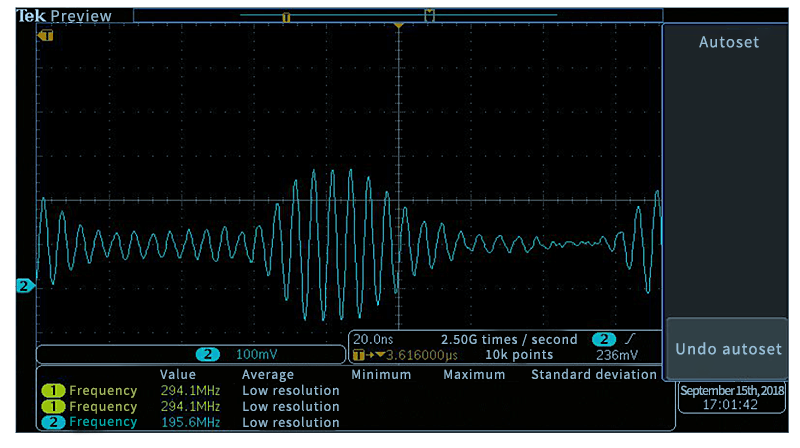

    200MHz beat frequency signal (oscilloscope data)





    Typical application areas

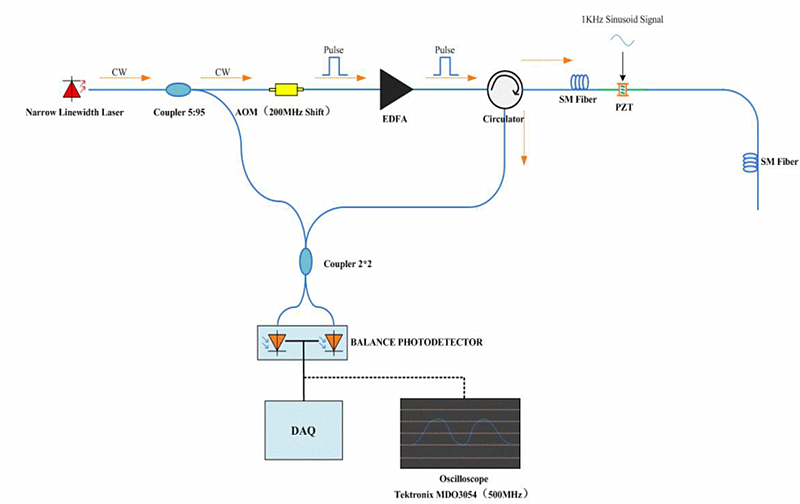

    Coherent detection distributed optical fiber sensing

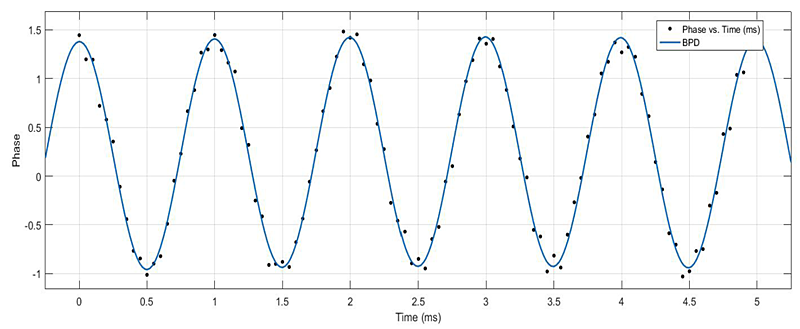

     PZT vibration point phase demodulation on optical fiber (1KHz)
