• InGaAs photobalanced detector MBD-100M-A

    The high-speed low-noise photoelectric balanced detection module integrates two matched low-noise analog PIN detectors, a low-noise broadband transimpedance amplifier and an ultra-low noise power supply. It has the characteristics of high gain, high sensitivity, high bandwidth, low noise, high common mode rejection ratio, etc. It can effectively reduce the common mode noise of the signal and improve the signal-to-noise ratio of the system.

    产品特点Low noise、 High gain、 High bandwidth、 Compact structure、 Built-in low noise isolated power supply

    产品货号E80040038

    应用领域Distributed fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement、 Nanosecond optical pulse detection

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话:16628709332

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Parameters

    PN#

    MBD-100M-A

    MBD-200M-A

    MBD-300M-A

    MBD-400M-A

    MBD-500M-A

    MBD-800M-A

    MBD-1G-A

    MBD-1.5G-A

    MBD-2G-A

    MBD-2.5G-A

    Unit

    Detector type

    InGaAs

    Wavelength

    800~1700

    nm

    Bandwidth

    100M

    200M

    300M

    400M

    500M

    800M

    1G

    1.5G

    2G

    2.5G

    Hz

    Detector responsivity

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    A/W@1550nm

    Transimpedance gain

    30K

    30K

    30K

    10K

    5K

    30K

    30K

    30K

    15K

    15K

    V/A

    Maximum input optical power

    140

    140

    140

    420

    840

    140

    140

    140

    280

    280

    μW

    NEP

    5

    5

    5

    7

    7

    9

    9

    9

    9

    9

    pW/Sqrt(Hz)

    Output impedance

    50

    50

    50

    50

    50

    50

    50

    50

    50

    50

    Ω

    Output coupling mode

    DC/AC

    DC/AC

    DC/AC

    DC/AC

    DC

    AC

    AC

    AC

    AC

    DC


    Supply voltage

    5

    5

    5

    5

    5

    12

    12

    12

    12

    12

    V

    Supply current

    0.3(max)

    0.3(max)

    0.3(max)

    0.3(max)

    0.3(max)

    0.3(max)

    0.3(max)

    0.3(max)

    0.3(max)

    0.3(max)

    A

    Optical input

    FC/APC(Free space light optional)


    RF output

    SMA


    Dimensions

    62*47*25

    75*55*25

    mm




    Test results:

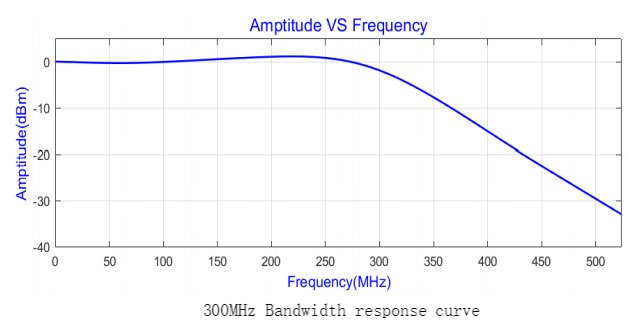

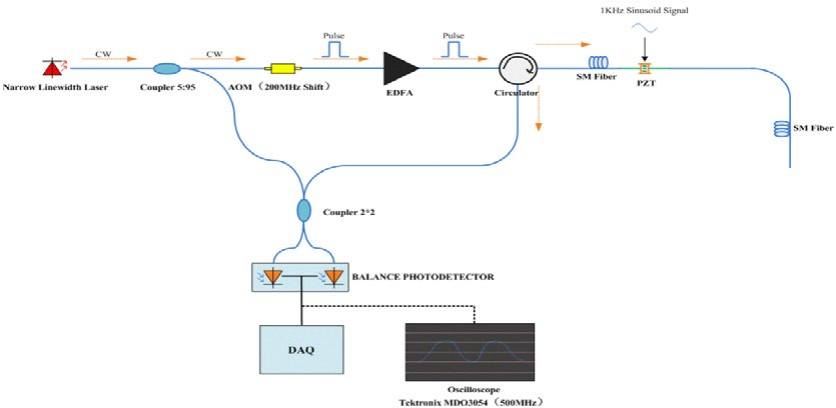

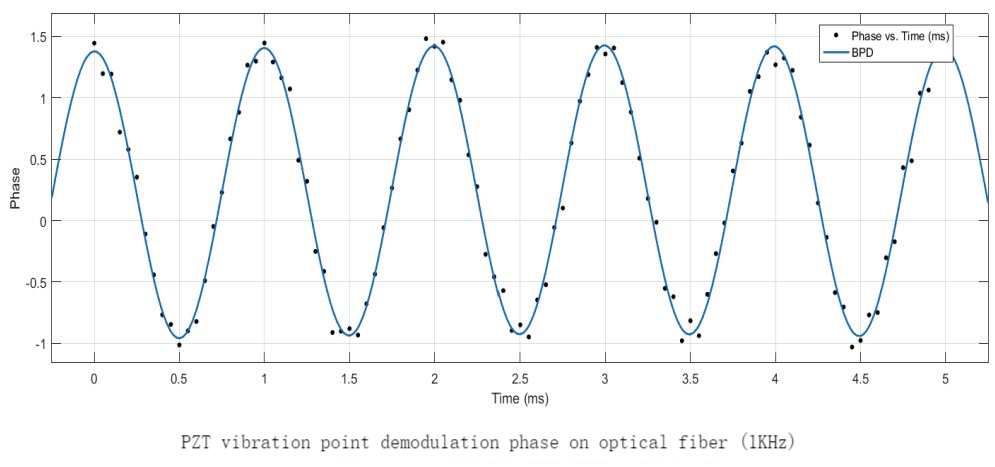

    Coherent Detection Distributed Fiber Optic Sensing:
