    • Ultra-low noise polarization diversity coherent receiver module UPDR-300M-A

    The ultra-low noise polarization diversity receiver module is designed for polarization-sensitive optical fiber sensing applications. This polarization diversity receiver module coherently detects the two polarization states of the local oscillator and signal light separately, using two high-speed low-noise balanced detectors for individual reception. It effectively solves the issue of coherent polarization states. This series is an upgrade based on the original PDR series, significantly reducing the background noise, thereby achieving higher signal-to-noise ratio for detection.

    Product features：High bandwidth、 High gain、 Ultra-low noise、 Built-in low-noise isolation power supply

    Part Number：--

    Application area：Fiber optic sensing、 Laser wind radar、 Optical coherence tomography、 Spectral measurement

    Add to Cart Consult Favorite

    Related Products

    Main parameters
  • Core parameters

  • Dimension Drawing
    • General Parameters

    General Parameters

    PN#

    UPDR-  100M-A

    UPDR-  200M-A

    UPDR-  300M-A

    UPDR-  400M-A

    UPDR-  500M-A

    UPDR-  800M-A

    UPDR- 1G-A

    UPDR- 1.2G-A

    UPDR- 1.5G-A

    UPDR- 2G-A

    UPDR- 2.5G-A

    Unit

    Wavelength

    1510~1590（1300±50nm；1060±50nm  optional）

    nm

    Bandwidth

    100M

    200M

    300M

    400M

    500M

    800M

    1G

    1.2G

    1.5G

    2G

    2.5G

    Hz

    Detector Responsivity

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    0.95

    A/W@1550nm

    Transimpedance Gain

    30K

    30K

    30K

    20K

    10K

    30K

    30K

    30K

    30K

    30K

    30K

    V/A

    Input Light

    Local

    <5

    <5

    <5

    <5

    <5

    <5

    <5

    <5

    <5

    <5

    <5

    mW

    Signal

    300

    300

    300

    300

    300

    300

    300

    300

    300

    300

    300

    μW

    Polarization Extinction Ratio

    22

    22

    22

    22

    22

    22

    22

    22

    22

    22

    22

    dB

    NEP

    2.5

    2.5

    2.5

    2.9

    3.1

    3.1

    3.1

    3.1

    3.1

    3.1

    3.1

    pW/Sqrt(Hz)

    Supply Voltage

    5

    5

    5

    12

    12

    12

    12

    12

    12

    12

    12

    V

    Supply Current

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    0.5(max)

    A

    Coupling Method

    DC/AC

    DC/AC

    DC/AC

    DC/AC

    DC

    AC

    AC

    AC

    AC

    AC

    AC


    Interface Type

    Electrical Interface: SMA, Optical Interface: FC/APC


    Fiber Type

    Local:PM；Signal:SM


    RF Output

    SMA


    Dimensions

    120*100*25mm

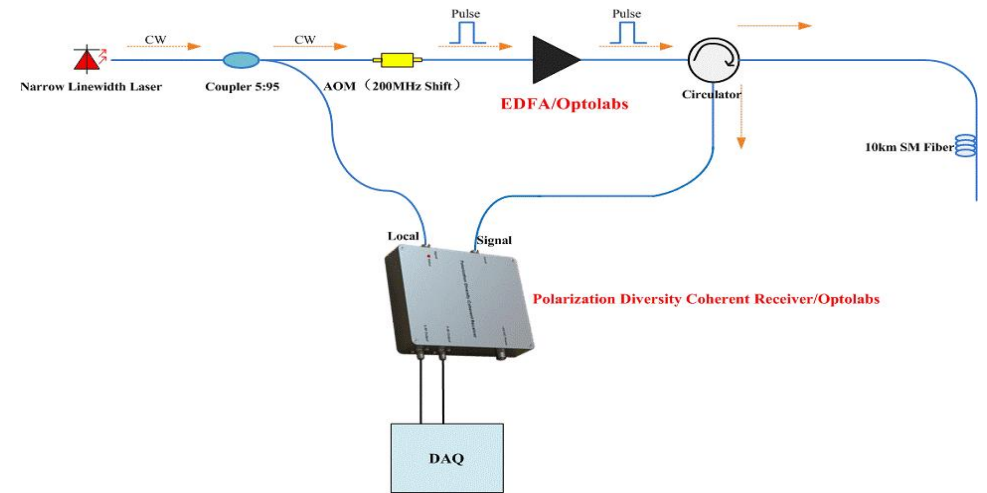

    Polarization Diversity Coherent Reception Optical Circuit Diagram

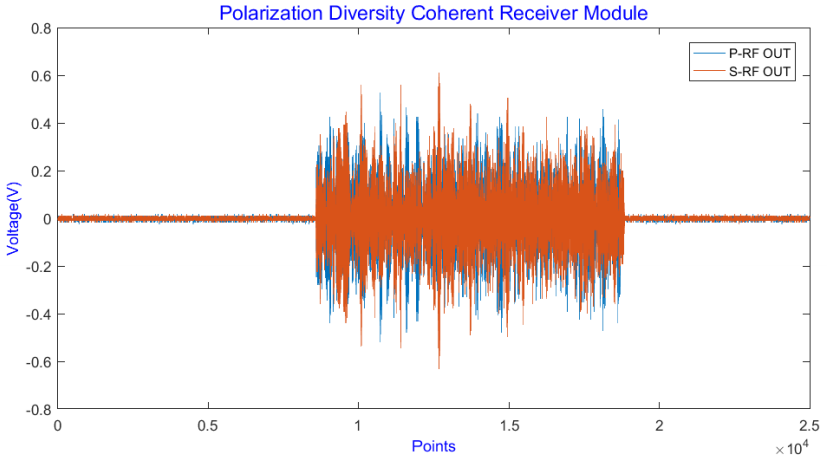

    Coherent signal of P-polarized and S-polarized states

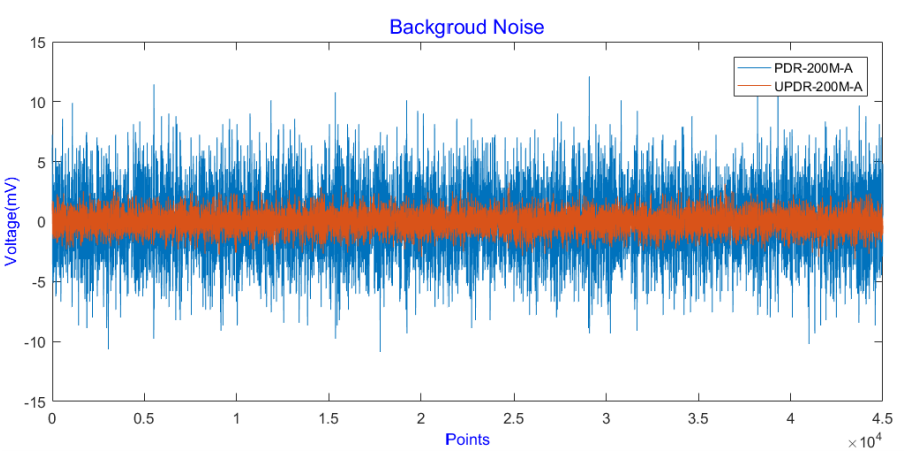

    Comparison of the background noise between ultra-low noise polarization diversity and conventional polarization diversity.
