    • 976nm High Power benchtop Multimode Pump Laser 5W

    MHPL-XXX high-power laser light source is based on high-performance semiconductor laser chip, 105/125um fiber coupled output. Professionally designed constant current drive and temperature control circuit ensures safe and stable operation of the laser. Some models have wavelength locking, and the spectrum stability can be better than ±3nm. It is suitable for medical research, fiber laser pumping and other production tests. It can provide benchtop or modular packaging, and provide host computer monitoring software

    产品特点High output power、 Power and spectrum stability、 Module or benchtop package

    产品货号B80021100

    应用领域Fiber laser pumping、 Biomedical、 Material laser processing

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Parameter

    Unit

    Typical

    Notes

    Operating wavelength

    nm

    793/808/976

    915


    Wavelength accuracy

    nm

    ±3

    ±10

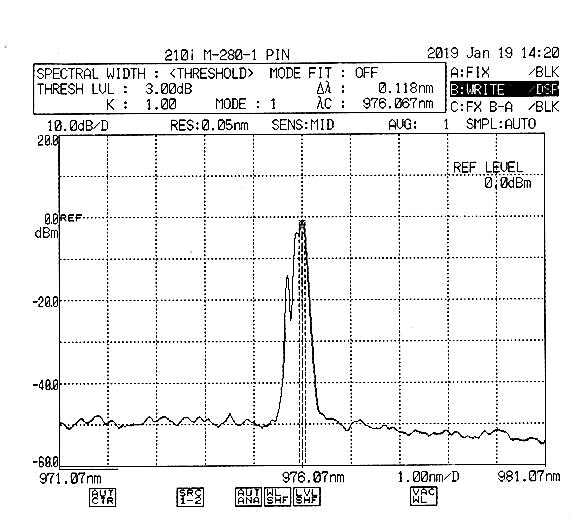

    Spectral width

    nm

    3

    6


    Operating mode

    -

    CW

    Continuous light

    Output power

    W

    5、10、25

    Customizable

    Short-term stability (15 minutes)

    dB

    ≤ ±0.02

    Equivalence≤±0.5%

    Long-term stability (8 hours)

    dB

    ≤ ±0.05

    Equivalence≤±1.2%

    Pigtail type

    -

    105/125μm Multimode Fiber，NA= 0.22


    Pigtail connector type

    -

    Bare fiber

    Optional fiber collimator



    Electrical and environmental parameters

    Benchtop

    Module

    Control mode

    Button

    RS232 Serial communication

    Communication interface

    Optional

    DB9 Female

    Power supply

    100~240VAC, <120W

    12V DC, <60W

    Dimensions

    260(W)×320(D)×120(H)mm

    125(W)×150(D)×30(H)mm

    Operating temperature range

    -5~+35°C

    Operating humidity range

    0~70%










    Ordering information / PN#

    MHPL

    Operating wavelength (nm)

    Output power(W)

    Output pigtail type

    Package method

    793/808/915 /976/1064

    5/10/25

    MM=105/125μm Multimode Fiber

    B=Benchtop M=Module
